Thai Feng

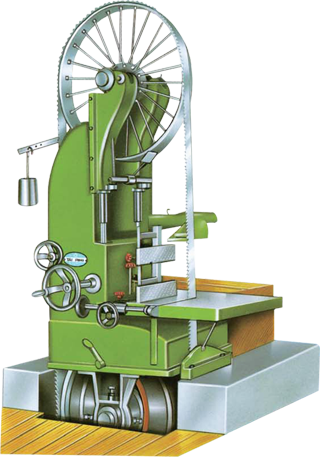

High Speed Table Band Saws

MODEL: TF-1100B • TF-1000B • TF-950B • TF-900B • TF-750B

High Speed Table Band Saws
MODEL
TF-1100B
TF-1000B
Wheel diameter and face
1117 x 114
1066 x 114
Size of saw blade to be used Width
127
127
Length
7900 - 8200
7600 - 7770
Thickness (BWG)
19 - 22
19 - 22
Max. diameter of log in center cut
1370
1200
Distance between saw and frame
530
508
Max. distance from saw to fence
340
340
Permissible wheel speed R.P.M.
700 - 1000
700 - 1000
Standard size of V belt pulley
380Ø x C5T
355Ø x C4T
Power required
20 - 30HP
15 - 30HP
Net weight, about
2090 kg
2000 kg
Boxed weight for export, about
2380 kg
2230 kg
Volume of export boxes, about
1950 cu.ft.
180 cu.ft.
MODEL
TF-950B
TF-900B
TF-750B
Wheel diameter and face
965 x 114
914 x 88
762 x 92
Size of saw blade to be used Width
100
100
100
Length
6400 - 6500
6090
5850
Thickness (BWG)
20 - 22
20 - 24
20 - 24
Max. diameter of log in center cut
910
810
760
Distance between saw and frame
460
450
405
Max. distance from saw to fence
300
290
265
Permissible wheel speed R.P.M.
700 - 1000
700 - 1000
650 - 750
Standard size of V belt pulley
330Ø x C4T
305Ø x C3T
250Ø x B3T
Power required
10 - 15HP
7.5 - 10HP
5 - 7.5HP
Net weight, about
1700 kg
1200 kg
1050 kg
Boxed weight for export, about
2200 kg
1580 kg
1350 kg
Volume of export boxes, about
134 cu.ft.
117 cu.ft.
1.6 cum³

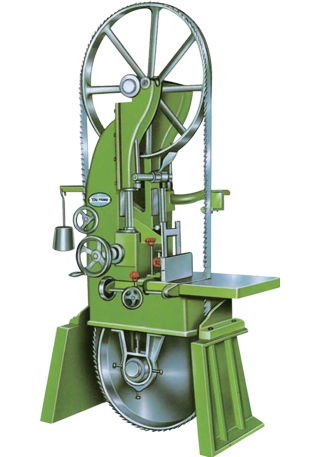

High Speed Table Band Saw – MODEL : TF-700B

High Speed Table Band Saw
MODEL
TF-700B
Wheel diameter and face
711 x 92
Size of saw blade to be usedWidth
100
Length
5300
Thickness (BWG)
20 - 24
Max. diameter of log in center cut
710
Distance between saw and frame
355
Max. distance from saw to fence
240
Permissible wheel speed
650 - 750
Standard size of belt pulley
B x 3
Power required
5 - 7.5HP
Net weight, about
900 kg
Boxed weight for export, about
1050 kg
Volume of export boxes, about
1.5 cum³
