Dual Slanted Table
KGW-1030H-2S
This machine is equipped with a full coverage of the upper pressure plate, as well as side pressure and rear pressure hydraulic cylinders, which can achieve the effect of compression on all four side, almost all furniture parts can be glued.
Advantages
- Multi-function go with Side and Rear and Top Pressure
- Slanted ergonomic-easy for loading and unloading
- Nearest two tables, work efficiency 20% up
- Dual Slanted bed-double the time of production
- Pre-Pressing design to make sure 100% of good products
- Moveable upper plate, it traverse left and right side
- HMI control-one button to control the machine
Machineable Products
Solid Wood Edge Banding
Cabinet Door Forming
Vertical Edge Glue
Short Edge Glue
Horizontal Edge Glue
Irregular Solid Wood Banding

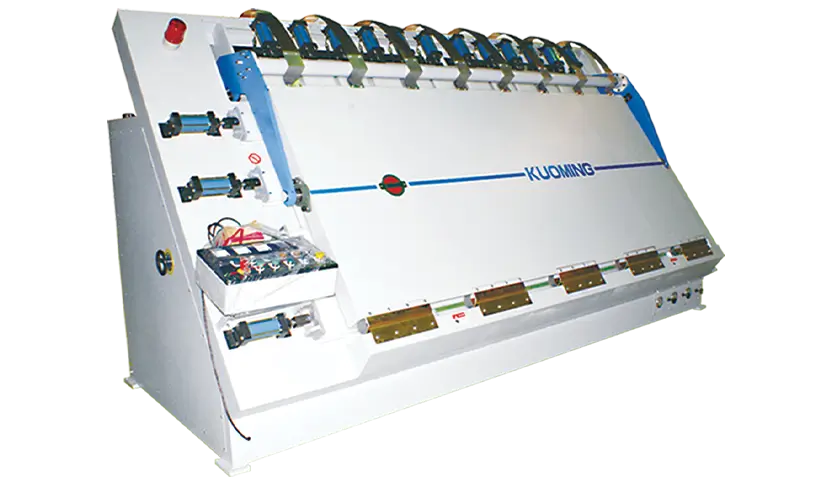

Slanted Table
KGW-1030H-S
Advantages
- Slanted ergonomic, easy for loading and unloading.
- Multi function go with side and rear and top pressure.
- Secure support bar to prevent fallen down unexpectedly.
- Pre-pressing design to make sure 100% of good products.
- HMI control one button to control the machine.
Specification Slanted Table and Dual Slanted Table
| Model | KGW-1030H-S | KGW-1030H-2S |
|---|---|---|
| Input power | 3⌀ 380 V | 3⌀ 380 V |
| High frequency power | 30 kW | 30 kW, Max. 31 kW |
| Transmitting tube | 8T25RA CANON | 8T25RA CANON |
| High frequency adjustor | Hand wheel adjutor | Hand wheel adjustor |
| High tension transformer | AC8000V, DC10000V, 40 KVA | AC8000V, DC10000V, 50 KVA |
| Rectifier | Palented, high tension resistance, full wave | Patented, high tension resistance, full wave |
| Variable capacitor | Patented, 4 pice on set | Patented, 4 piece one set |
| Working area | Max. range : 2440 x 1220 x 10 ~ 60 mm, slanted bed | Max. range : 2440 x 1220 x 15 ~ 50 mm, slanted bed |
| Pressure | 5 HP hydraulic pump | 5 HP hydraulic pump |
| Pressing way | UP and side pressure as well as upper massive plate | UP and side pressure as well as upper massive plate |
| Cylinder | Up x 2 pcs Rear x 10 pcs Side x 2 pcs | Up x 2 pcs / Rear x 20 pcs / Side x 8 pcs |
| Loading and unloading | Manually loading and unloading | Manually loading and unloading |
| Up and lower plate | Upper and bottom plate surface attached with steel plates | Upper and bottom plate surface attached with steel plates. Equip with 2 pcs of pneumatic cylinder 250 mm length. |
| Press type | Dual inclined bed with one massive upper plate slides left and right side for up side pressing | Dual inclined bed with one massive upper plate slides left and right side for up side pressing |
| Control system | Standard control system | Standard control system |
| Dimension (L x W x H) | 3700 x 2200 x 1900 mm | 6500 x 2200 x 1900 mm |
| Weight | N.W. 3200 kgs G.W. 3800 kgs | N.W. 6200 kgs / G.W. 7200 kgs |
