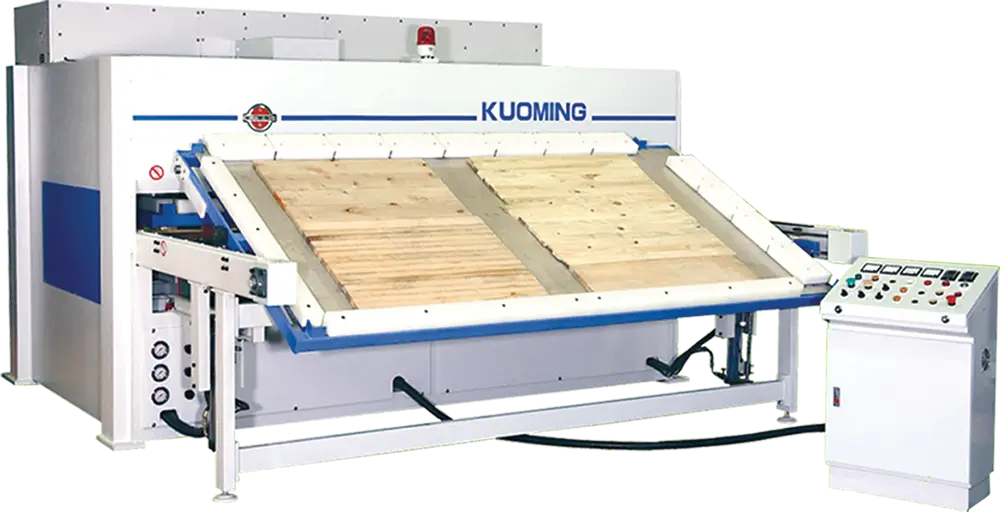

Dual Sliding Table
KGW-1030H-2T | KGW-1040H-2T

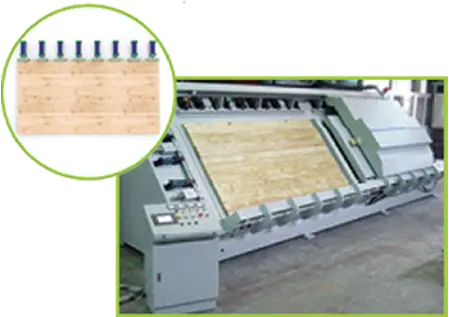

A high precision solution designed for cabinet, panel, and modern furniture production. The Kuoming High Frequency Press Dual Table offers enhanced functionality, ergonomics, and efficiency for medium to large-scale manufacturing.

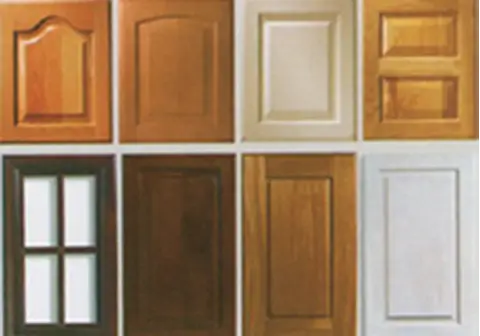

Cabinet Door
Bed Set Glue

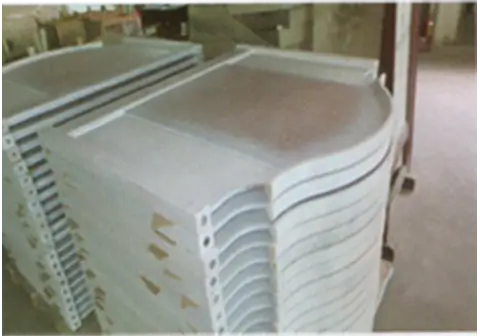

Table Top Solid Wood Edge Glue
Machineable Products
Solid Wood Edge Banding

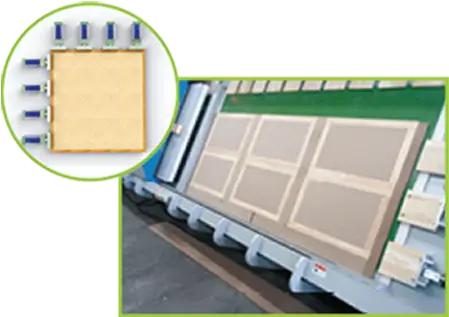

Vertical Edge Glue

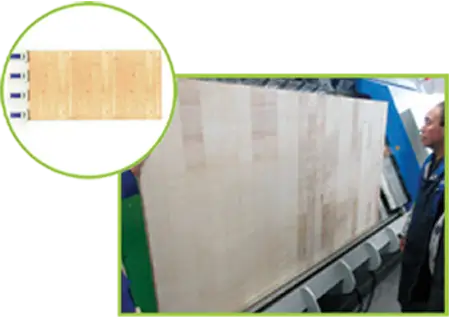

Horizontal Edge Glue

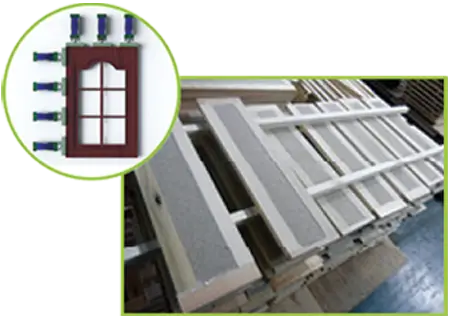

Cabinet Door Forming

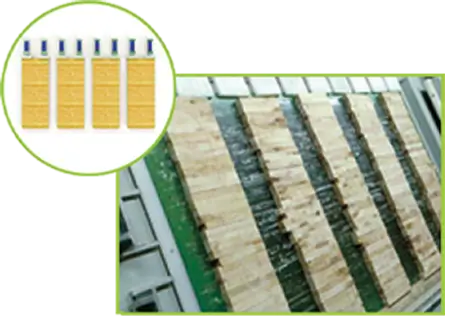

Short Edge Glue

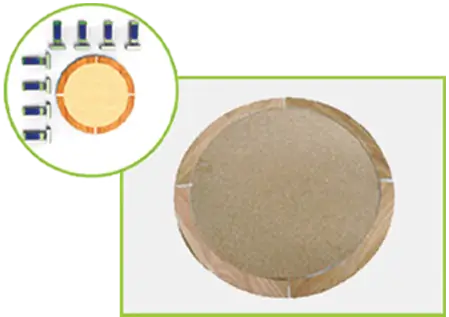

Irregular Solid Wood Edge Banding

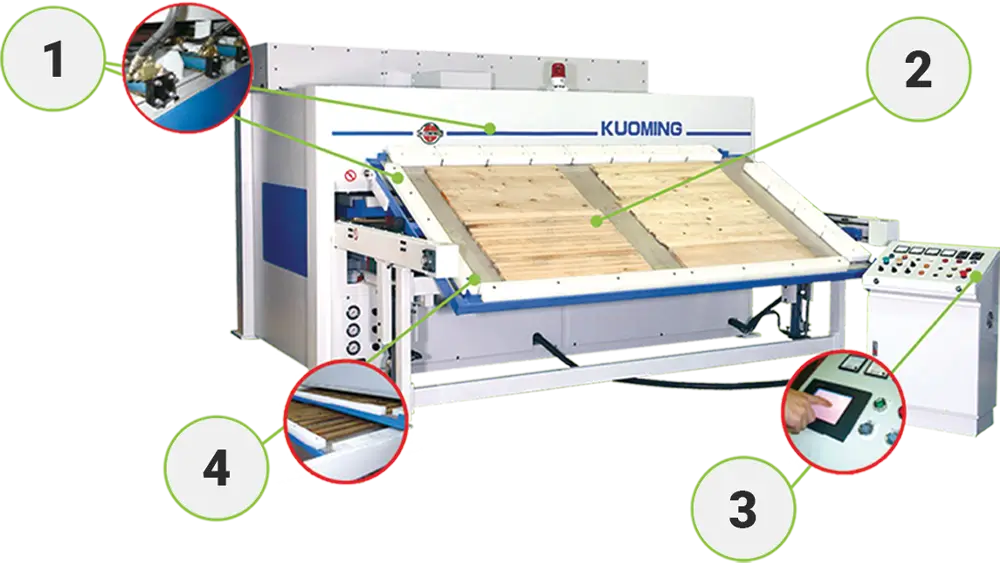

Advantages
- Multi function go with side and rear and top pressure
- Slanted ergonomic, easy for loading and unloading
- HMI control one button to control the machine
- Moveable upper plate, it traverse left and right side.
Specification Dual Sliding Table
| Model | KGW-1030H-2T | KGW-1040H-2T |
|---|---|---|
| Voltage | 3Ø 220 / 380 / 400 / 415 / 440 / 480V | 3Ø 220 / 380 / 400 / 415 / 440 / 480V |
| Input power | 40 kVA | 60 kVA |
| Output power | 25 kW | 40 kW |
| Platen (W x L) | Dual sliding table : 1220 x 2440 mm | Dual sliding table : 1220 x 3000 mm |
| Thickness | Edge glue : 10 ~ 50 mm Frame and edge banding : 10 ~ 100 mm | Edge glue : 10 ~ 50 mm; Frame and edge banding : 10 ~ 100 mm |
| Pressing | Up, side, top pressing / hydraulic | Up, side, top pressing / hydraulic |
| Dimension (L x W x H) | Main press : 3800 x 2240 x 2150 mm Work table : 3800 x 1560 x 920 mm | Main press : 4360 x 2240 x 2150 mm; Work table : 4360 x 1560 x 920 mm |
| Weight | 7100 kg | 8800 kg |
