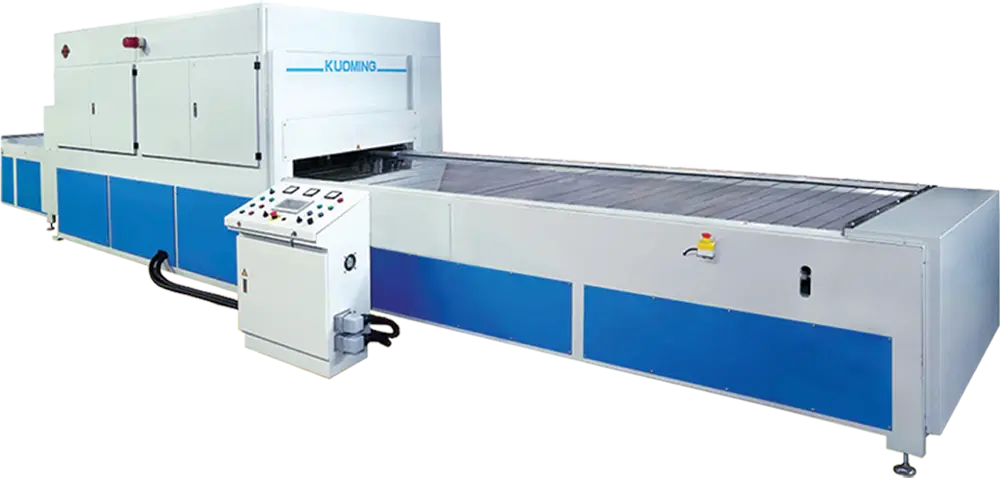

High Frequency Edge Glue Press Stainless Slat Bed
KGW-1040HS 3M

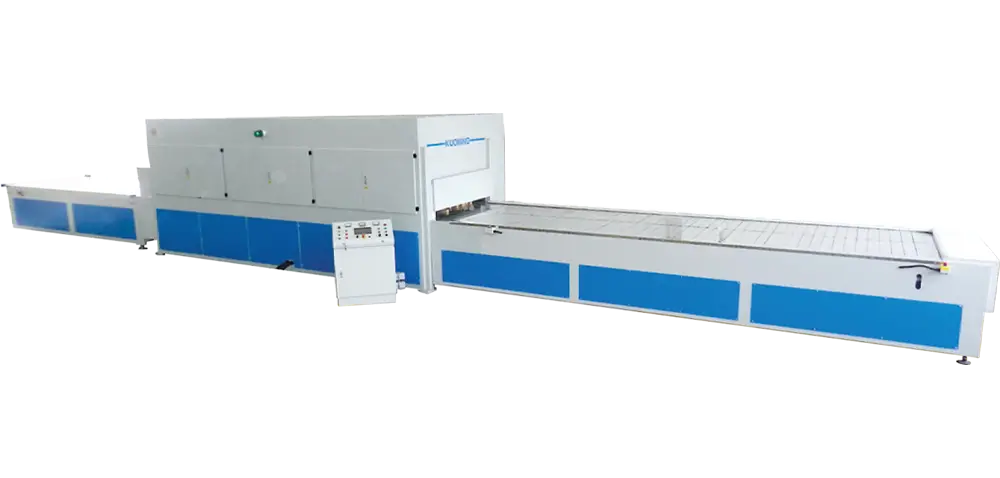

High Frequency Edge Glue Press Stainless Slat Bed
KGW-1060HS 6M

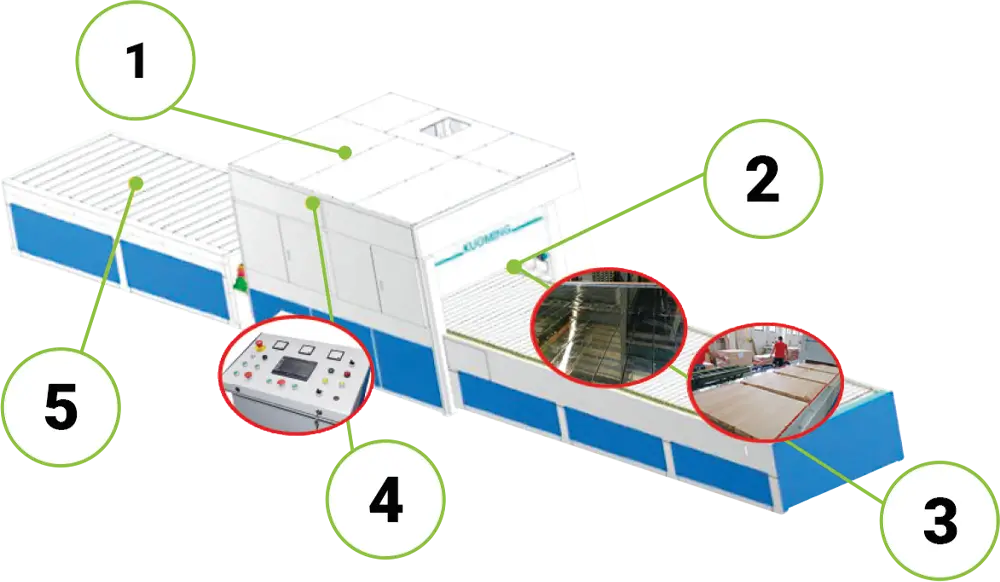

Advantages
- Build-in H.F. System with International frequency 13.65 Mhz. 20% faster efficiency
- Stainless slat bed, highly rigid material, usage 20 years and more, highly flatness ensure wood flatness, easy to clean stick glue. Highly conductive enhance efficiency 20% and more.
- Through feed slat bed good for short piece loading.
- HMI control one button to control the machine
- User friendly operation, it equipped with side automatic inlet and outlet feeding table for continuous and mass production.

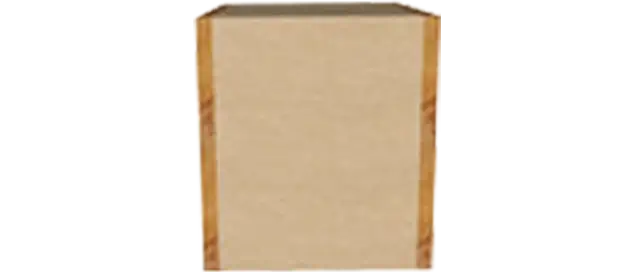

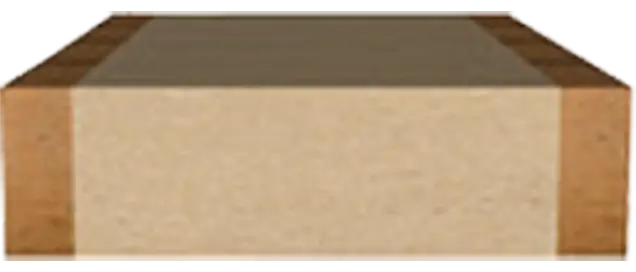

Machineable Products
Fixed Width
Glulam Timber
Door Stile

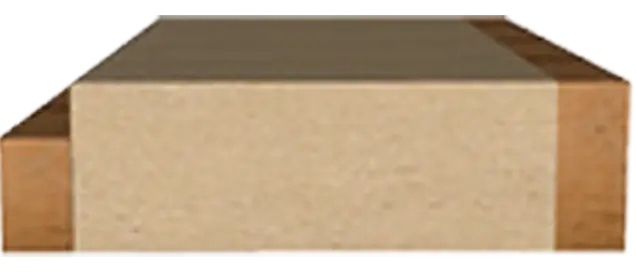

Door Stile (Long Strip Edge Banding)

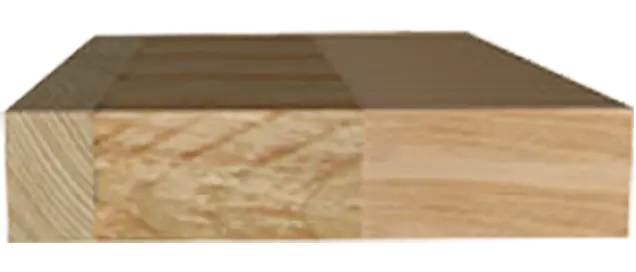

Natural Width (Straight Panel)
Thick Door Stile

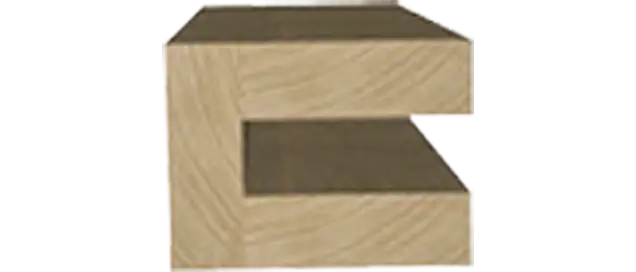

C Shaped Strips

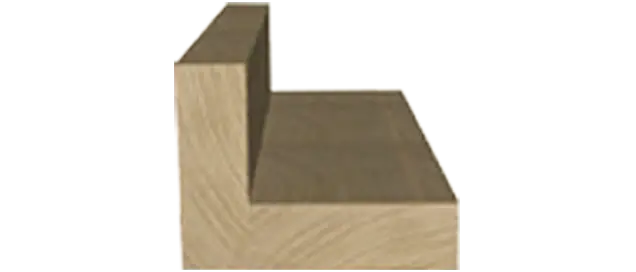

L Shaped Strips

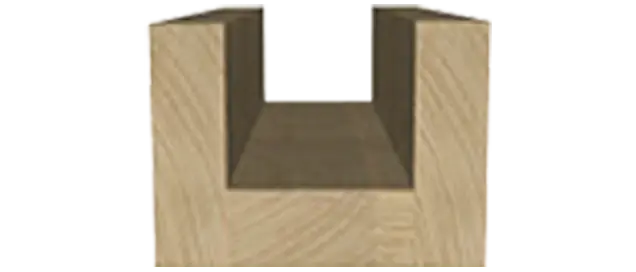

U Shaped Strips

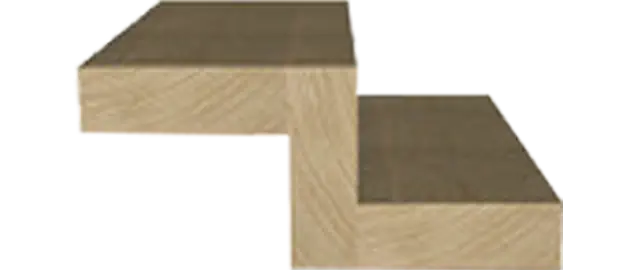

Z Shaped Strips

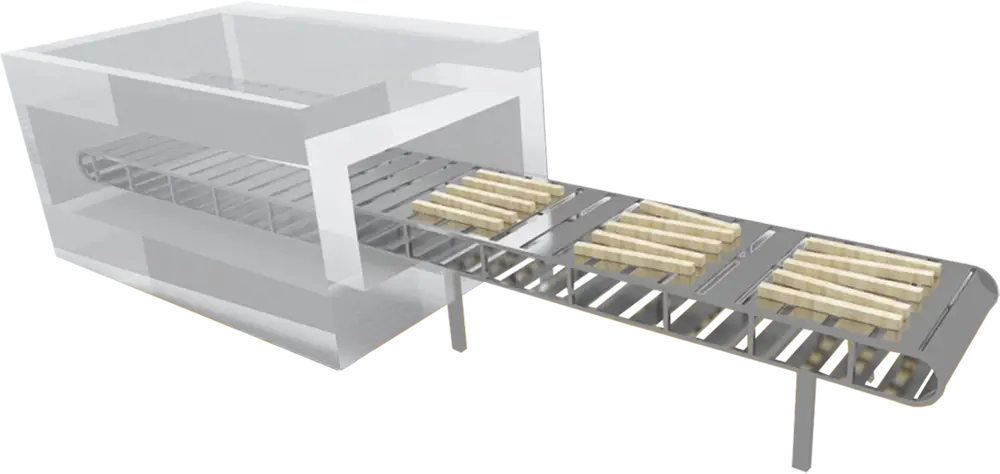

Through Feed Slat Bed
- Good for loading with random length wood
- Easy to clean glue in one belt

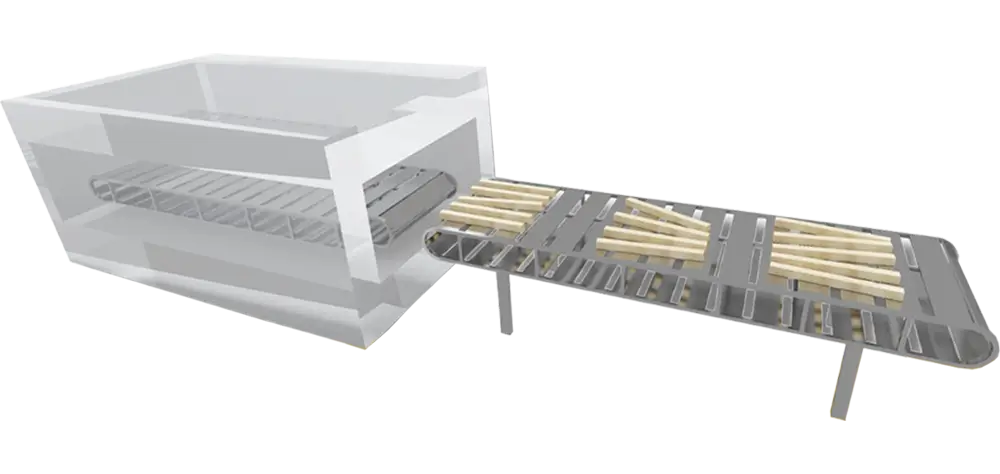

2 Section Slat Bed With Teflon Conveyor Inlet Table
- Separated inlet slat bed can go stand still for fixed length wood loading while High Frequency is on
- Any movement at inlet table will not interference to High Frequency Press
- Teflon conveyor inlet table with keep glue from stick on
Specification Edge Glue Press Stainless Slat Bed
| Model | KGW-1030HS | KGW-1040HS | KGW-1060HS | KGW-10120HS |
|---|---|---|---|---|
| Voltage | 3Ø 220/380/400/415/440/480 V | 3Ø 220/380/400/415/440/480 V | 3Ø 220/380/400/415/440/480 V | 3Ø 220/380/400/415/440/480 V |
| Input power | 40 KVA | 60 KVA | 90 KVA | 150 KVA |
| Output power | 30 kW | 60 kW | 60 kW | 120 kW |
| Platen (W x L) | 1350 × 2500 mm | 1350 × 3000 mm / 1500 × 3000 mm | 1350 × 5000 mm / 1500 × 5000 mm | 1350 × 6000 mm / 1500 × 6000 mm / 1350 × 8000 mm |
| Thickness | 10~60 mm | 10~60 mm / 30~300 mm | 10~60 mm / 30~300 mm | 15~50 mm / 30~300 mm |
| Pressing | Side, Top Pressing / Hydraulic | Side, Top Pressing / Hydraulic | Side, Top Pressing / Hydraulic | Side, Top Pressing / Hydraulic |
| Dimension (L x W x H) | Main press: 3000 × 2300 × 2200 mm Infeed table: 3300 × 1740 × 900 mm Outfeed table: 2000 × 1540 × 900 mm | Main press: 3400 × 2300 × 2200 mm Infeed table: 3730 × 1740 × 900; mm Outfeed table: 2550 × 1540 × 900 mm | Main press: 5360 × 2300 × 2200 mm Infeed table: 5730 × 1740 × 900 mm Outfeed table: 4550 × 1540 × 900 mm | Main press: 6360 × 2300 × 2200 mm Infeed table: 6573 × 1740 × 900 mm Outfeed table: 5550 × 1540 × 900 mm |
| Weight | 11400/11900 kg | 12000/13200 kg | 14000 kg | 15300 kg |
