*Machine picture shown is reference only
HE-409GB
CNC Router (4 x 9 ft)
Technical Info
Heavy duty intelligent cutting, efficient, accurate and reliable
- One 9 kW (18000 r) auto tool switch spindle, 12 tools magazine, 5+4 vertical drill bits
- Windows based operating software
- Servo drive system
- Processing size: 1220 x 2440 mm
- Heavy duty servo motor, stable output
- High performance inverter, anti strong interference, energy saving and environmental protection
- 7-zone vaccum adsorption platform with fine partition and uniform adsorption
- Thousandth grade high precision tool setting device, stable cutting and continuous improvement
- Taiwan LNC control system
- 9V drilling unit (5+4 drilling head). Switch quickly, suitable for kinds of drilling head. It can machine 3 holes, 2 holes unit and hinge hole. Maintain is easy.
Standard Configuration

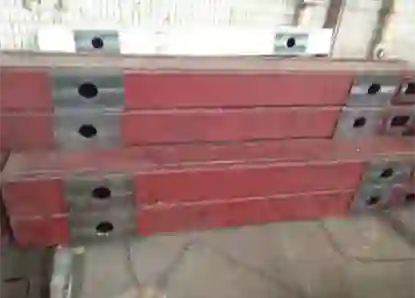

Heavy Duty Machine Frame

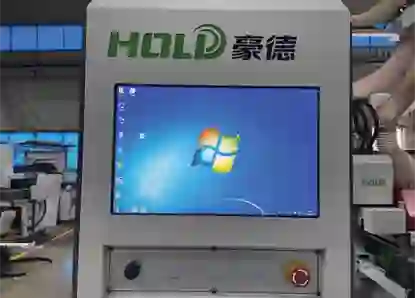

Computer Operation

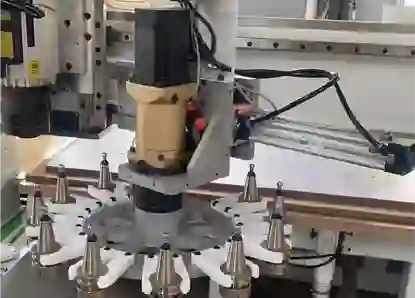

Servo Control Tool Magazine

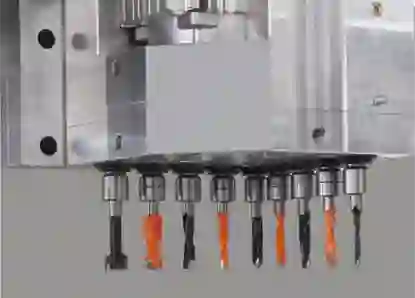

9V Drilling Unit

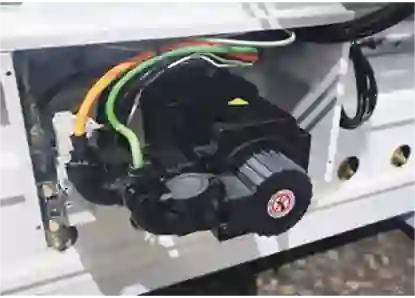

Servo Motor

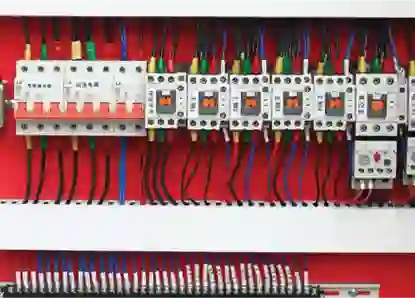

Excellent Electrical Components

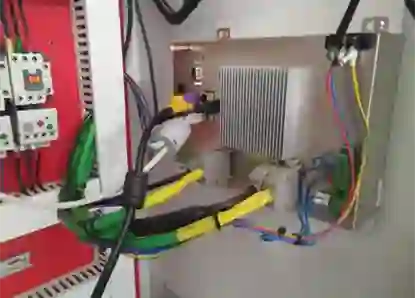

Stable Control System

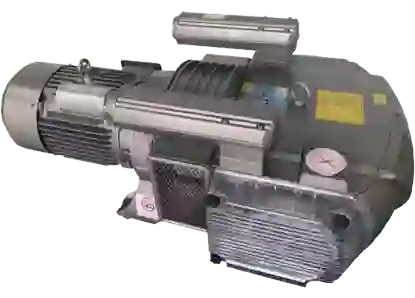

5.5 kW Air Cooling Vacuum Pump

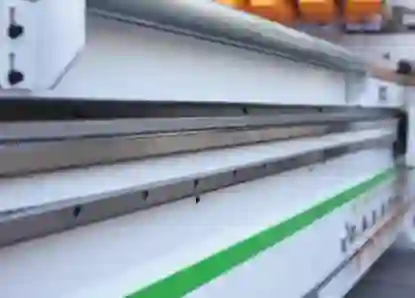

High Precision 30 Guide Rail

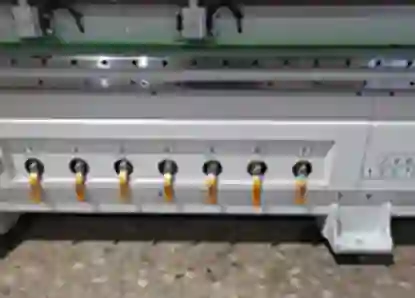

7-zone Vacuum Adsorption Platform
High Performance Inverter
Thousands of Classification and High Precision Tool Alignment Instrument
Strong Suction Cup Grab Plate Device
Optional Configuration
Auto Labeling Device

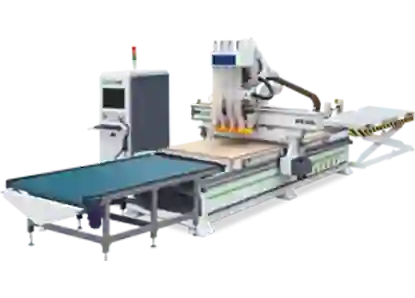

Loading – Unloading System
Specification of HE409GB
| Model | HE409GB |
|---|---|
| Machining dimensions | 1220 x 2750 x 30 mm |
| Working area | 1850 x 3000 x 260 mm |
| Idling speed | 80 m/min |
| Working speed | 12 - 25 m/min |
| Spindle power | 9.0 kW |
| Spindle speed | 0 - 18000 r/min |
| Total power | 26 kW |
| Driving system | Servo drive |
| Control system | Taiwan LNC control system |
| Total weight | About 2000 kg |
| Footprint | About 4300 x 2800 x 3200 mm |
