*Machine picture shown is reference only
HE-409G
CNC Router (4 x 9 ft)
Technical Info
- One 9 kW (18000 r) auto tool switch spindle, 12 tools magazine
- Windows based operating software
- Servo drive system
- Processing size: 1220 x 2440 mm
- Heavy duty Servo motor, stable output
- High performance inverter, anti strong interference, energy saving and environmental protection
- 7-zone vacuum adsorption platform with fine partition and uniform adsorption
- Thousandth grade high precision tool setting device, stable cutting continuous improvement
- Taiwan LNC control system
Standard Configuration

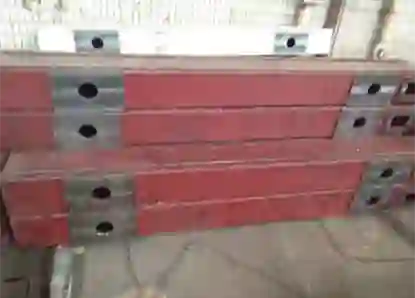

Heavy Duty Machine Frame

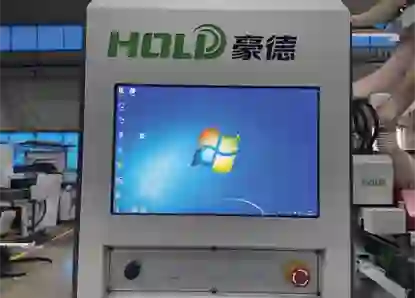

Computer Operation

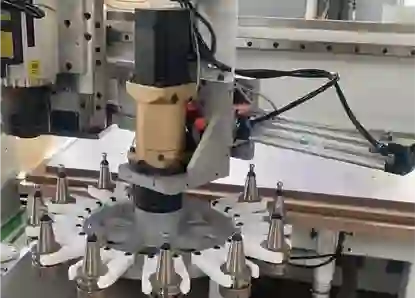

Servo Control 12 Tools Magazine

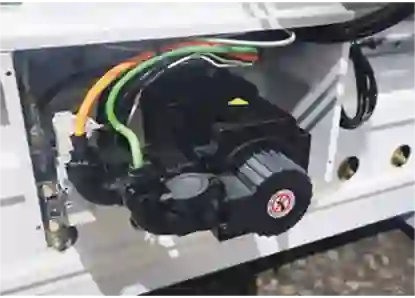

Servo Motor

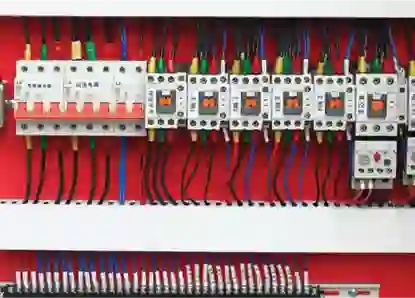

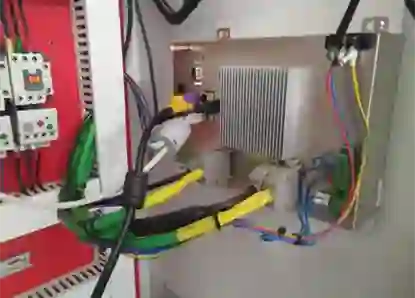

Excellent Electrical Components
Stable Control System
5.5 kW Air Cooling Vacuum Pump

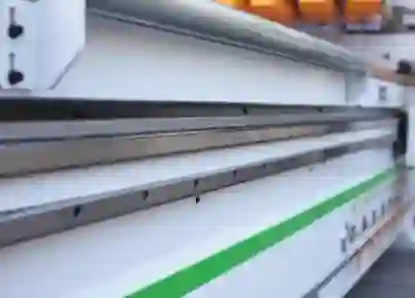

High Precision 30 Guide Rail
7-zone Vacuum Adsorption Platform

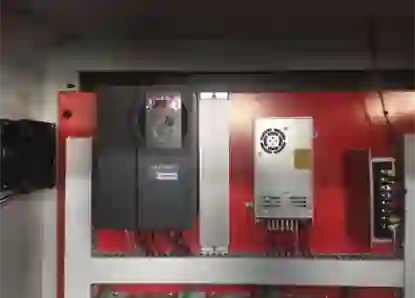

High Performance Inverter

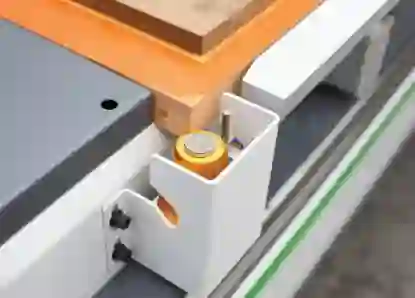

Thousands of Classification and High Precision Tool Alignment Instrument

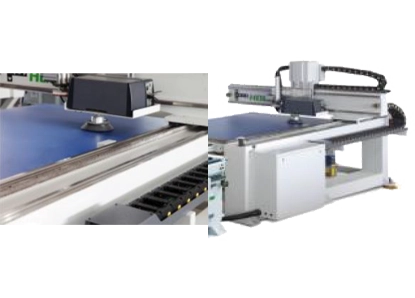

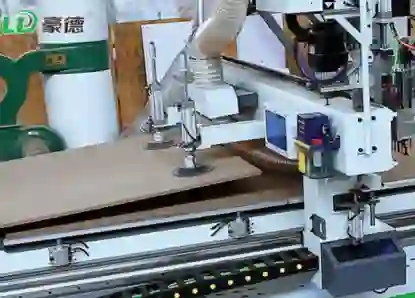

Strong Suction Cup Grab Plate Device
Optional Configuration
Auto Labeling Device

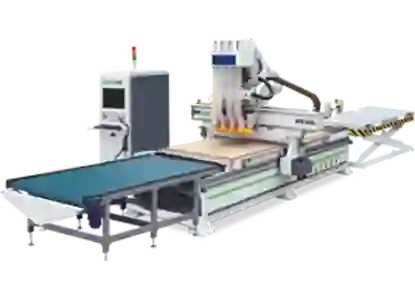

Loading – Unloading System
Specification of HE409G
| Model | HE409G |
|---|---|
| Machining dimension | 1220 x 2750 x 30 mm |
| Working area | 1850 x 3000 x 260 mm |
| Idling speed | 80 m/min |
| Working speed | 12 - 25 m/min |
| Spindle power | 9.0 kW |
| Spindle speed | 0 - 18000 r/min |
| Total power | 26 kW |
| Driving system | servo drive |
| Control system | Taiwan LNC control system |
| Total weight | About 2000 kg |
| Footprint | About 4300 x 2800 x 3200 mm |
