*Machine picture shown is reference only
HD-621J
Automatic Edge Banding Machine
Standard Process

- Pre-milling
- Gluing
- Pressing
- End Cutting
- Rough Trimming
- Fine Trimming
- Corner Rounding
- Scraping
- Buffing
Standard Configuration

Control System: Operation Flexible

Electric Press Beam Lifting

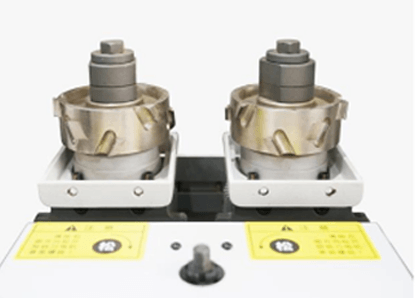

Pre-milling Device (Max Removing Thickness ≤ 1 mm)

Buffing Device

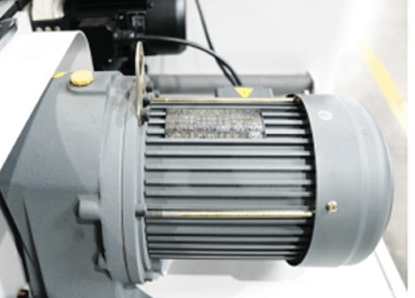

4.0 kW Harden Gear Reducer

EVA Gluing Device

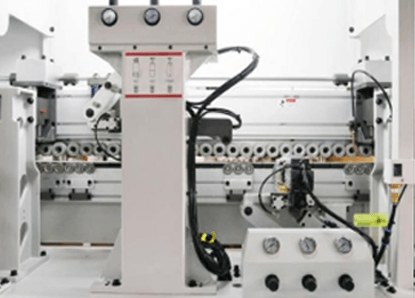

Pressing

End Cutting Device

Rough Trimming Device

Fine Trimming Device

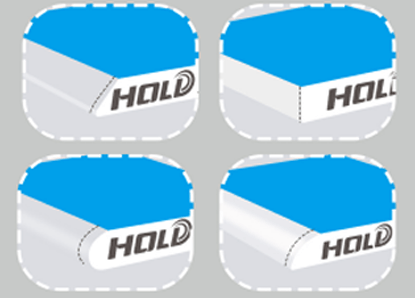

Corner Rounding

Scraping Device

Unique Design: Rubber-coated Wheel
Optional Configuration

Liquids Previous Premilling

Liquids for Cleaning at the End

Quick Melt Device
Specification of HD621J
Model | HD621J |
---|---|
Electric lifter | ✓ |
Total power | 16.7 kW |
Dimensions | 7000 x 900 x 1700 mm |
Feeding speed | 14/20/23 m/min |
Edge banding thickness | 0.4 - 3 mm |
Panel thickness | 10 - 60 mm |
Panel length | ≥ 250 mm |
Panel width | ≥ 250 mm |
Working pressure | 0.6 Mpa |
Min. panel size | 250 x 250 mm |
