*Machine picture shown is reference only

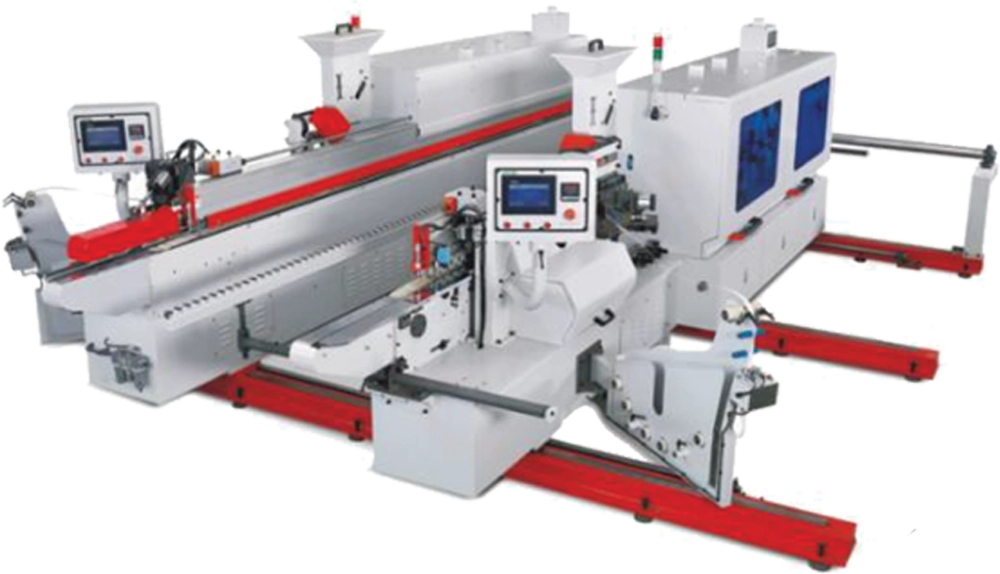

HD-2621JPKQ
Double Sided Edge Bander
Double-end edge bander can realize the two ends of the plate edge sealing at the same time.
The movable edge edge bander can adjust position on rail according to the width of the plate
Panel width: 320 – 2650 mm
Panel thickness: 10 – 60 mm
Thickness of edge band: 0.4 – 3 mm
Feeding speed: 12 – 20 mm/min
Standard Process
- Pre-milling
- Gluing
- Pressing
- End Cutting
- Rough Trimming
- Fine Trimming
- Corner Rounding
- Scraping
- Buffing
Technical Info
-
The frame is welded by high strength steel panel with high strength and stability. The surface is with anti-rust treatment and high temperature painting.
-
Electric controlled lifting press beam, reduce labor intensity, improve efficiency and accuracy.
-

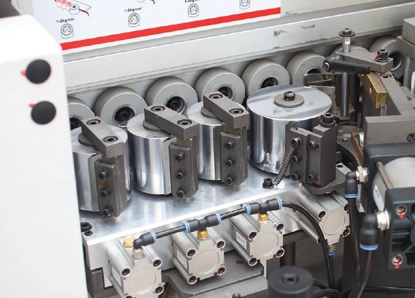

Four enlarged press wheels with four cylinder. It guarantees the tape is stuck to panel firmly.
-

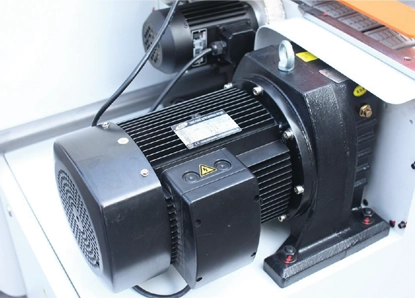

Harden gear conveyor reducer is strong and powerful, produced by famous brand
Standard Configuration

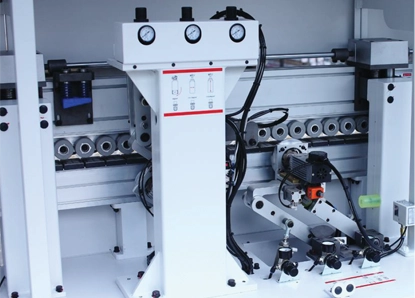

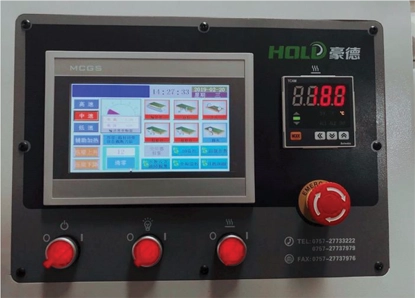

Control System
Electric Press Beam Lifting

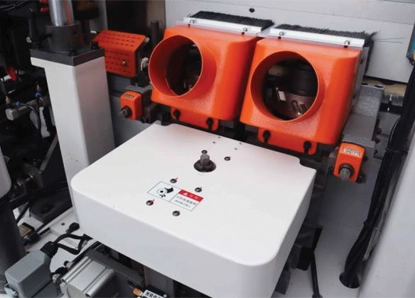

Pre-milling Device (Max Removing Thickness ≤ 1 mm)
Eva Quick Melt Device+ Upper Glue Pot for EVA Glue
Pressing

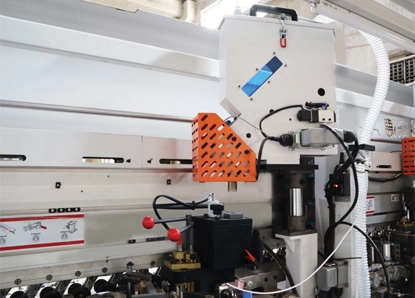

End Cutting Device
Rough Trimming Device

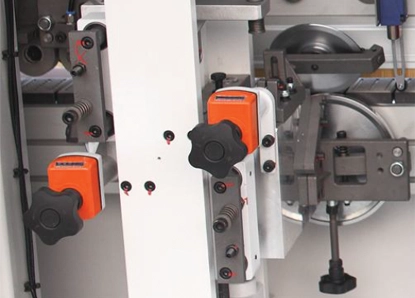

Fine Trimming Device
Corner Rounding

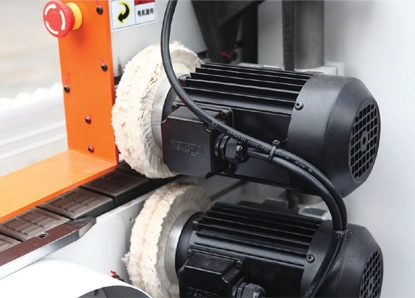

Buffing Device
Reducer

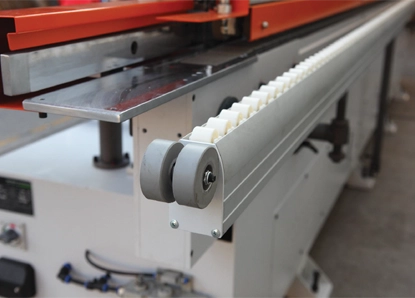

Unique Design: Rubber-coated Wheel
Specification of HD2621JPKQ
| Model | HD2621JPKQ |
|---|---|
| Beam lifter control | Electric lifter |
| Feeding speed | 14-20-23 m/min |
| Edge thickness | 0.4 - 3 mm |
| Panel thickness | 10 - 60 mm |
| Working pressure | 0.6 Mpa |
