*Machine picture shown is reference only
HB-8442K
CNC Automatic Feeding Multi Row Drill
Suitable for custom furniture, panel furniture, cabinets and wardrobes, office furniture
Standard Configuration
Belt Type Automatic Feeding Device
Precision Positioning Induction Device
After Scanning The Barcode, The Display Will Show the Drill Bit Distribution
High Precision Servo Motor
Precision Screw Drive
Specification of HB8442K
| Model | HB8442K |
|---|---|
| Max. width of workpiece | 2450 mm |
| Max. distance of two horizontal drilling head | 640 mm |
| Min. distance of vertical drilling row | 128 mm |
| Max. thickness of workpiece | 50 mm |
| Max. depth of horizontal drilling head | 40 mm |
| Max. depth of vertical drilling head | 70 mm |
| Rotating speed of drilling spindless | 2800 rpm (50 Hz) |
| Vertical box power | 0.75 kW x 9 |
| Vertical drilling power | 1.1 kW x 2 |
| Horizontal drilling power | 1.5 kW |
| Feeding motor power | 0.37 kW x 2 x 2 |
| Feeding speed | 70 m/min |
| Working pressure | 0.6 - 0.8 Mpa |
| Dimensions of machine | 4600 x 3100 x 2000 mm |
Discover CNC Automatic Feeding Multi Row Drill Machine

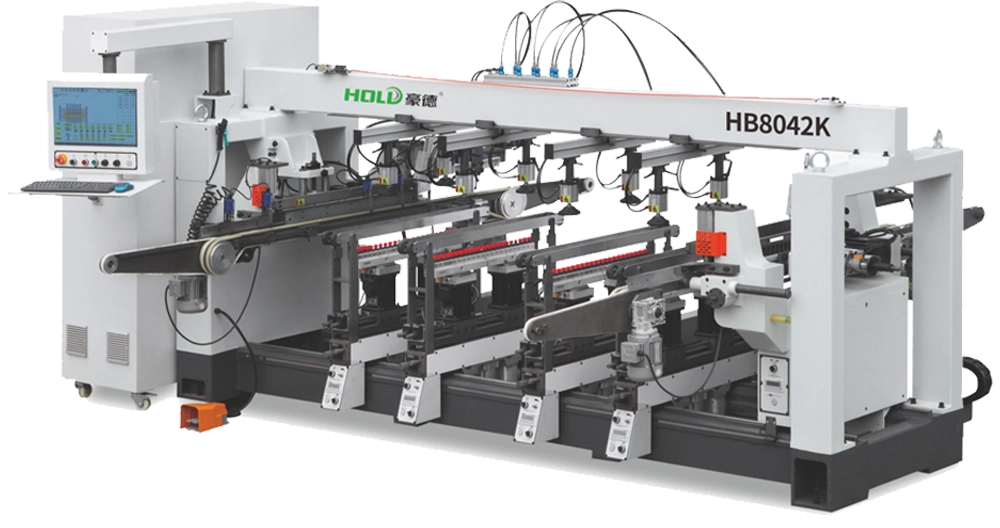

*Machine picture shown is reference only
HB8042K
CNC Automatic Feeding Multi Row Drill Machine
The HB8042K delivers speed and accuracy for drilling wood panels. Equipped with an automatic feeding system and CNC control, it ensures high-efficiency performance in large-scale furniture production lines.
