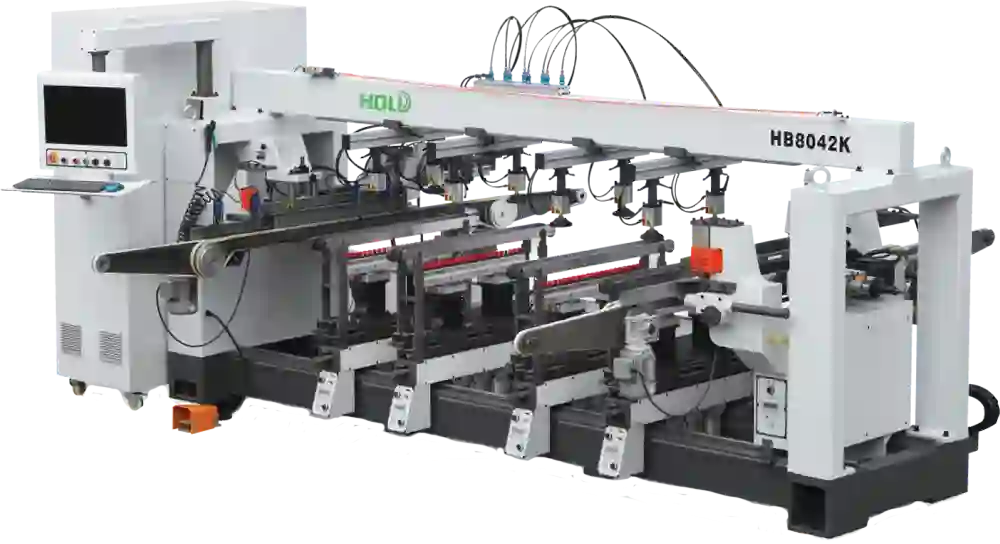

*Machine picture shown is reference only
HB-8052K
Automatic 7 Rows Drilling Machine
- Machine frame adopts heavy duty gantry structure and base adopts heavy duty base to enhance the stability of the whole machine
- The drill bit layout will be displayed automatically after code scanning
- Automatic feeding system
- Three sides simultaneous process
- The vertical box and movable box adopt servo control to improve drilling accuracy. No manual drilling hole setting, it improves efficiency.
- The servo control is adopted for the left and right blocking, which saves the trouble of manual adjustment and positioning for different panel sizes.
- The multi panel feeding mechanism realizes continuous panel processing
- Barcode scanning (OPTIONAL)
Standard Configuration

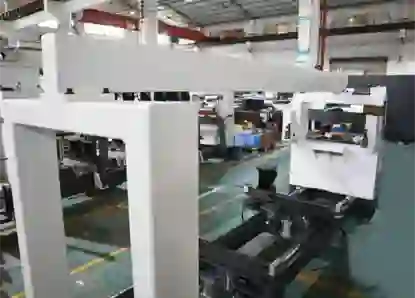

Heavy Duty Gantry Frame

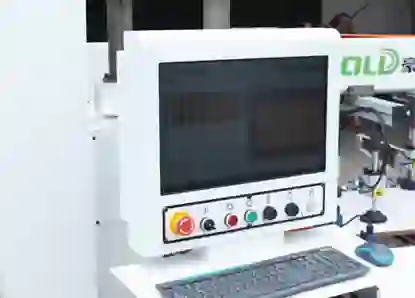

Intelligent Operation System

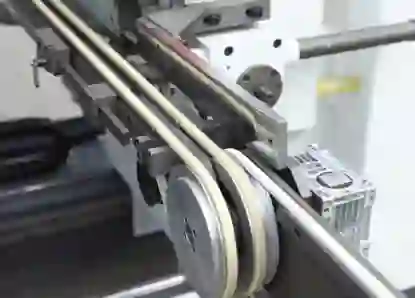

Automatic Belt Feeding Device

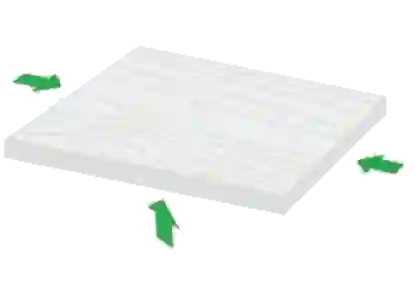

Simultaneous Processing of Three Sided
Conveyor Motor

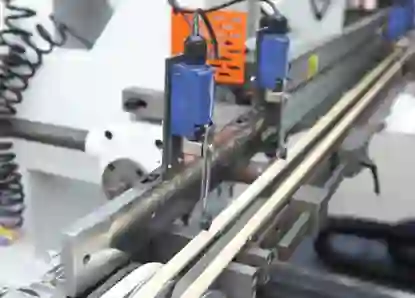

Precision Positioning Sensor

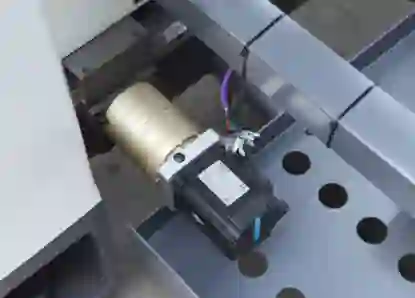

High Precision Servo Motor
Precision Screw Drive

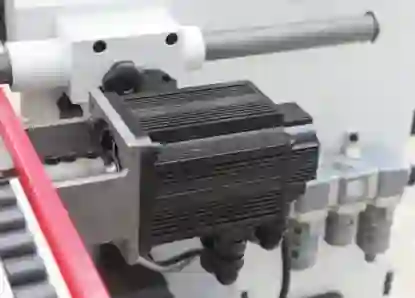

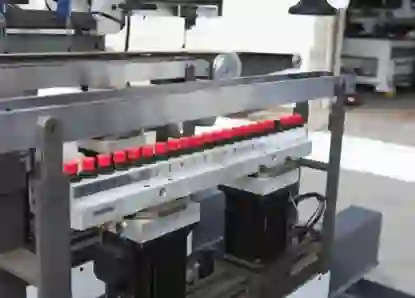

Drilling Unit

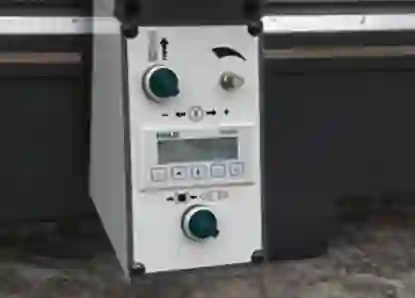

Electronic Counter

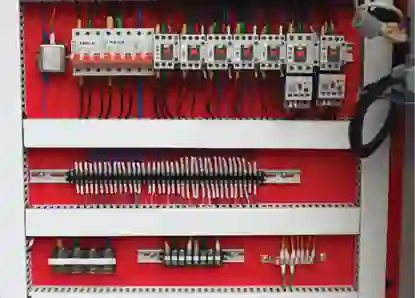

High Quality Electrical Appliances
Specification of HB8052K
| Model | HB8052K |
|---|---|
| Max. machining width (x axis) | 2450 mm |
| Max. distance of horizontal drilling spindles | 640 mm |
| Min. distance of vertical drilling spindles | 128 mm |
| Max. panel thickness | 50 mm |
| Max. horizontal drilling depth | 40 mm |
| Max. vertical drilling depth | 70 mm |
| Drilling spindle speed | 2800 rpm (50 Hz) |
| Vertical box power | 0.75 kW x 6 |
| Vertical drilling row power | 1.1 kW x2 |
| Horizontal drilling row power | 1.5 kW |
| Feeding motor power | 0.37 kW x 2 x 2 |
| Feeding speed | 70 m/min |
| Working pressure | 0.6 - 0.8 Mpa |
| Machine size | 4250 x 2350 x 1850 mm |
