HB-8042K
CNC Automatic Feeding Multi Row Drill
Suitable for custom furniture, panel furniture, cabinets and wardrobes, office furniture
Standard Configuration

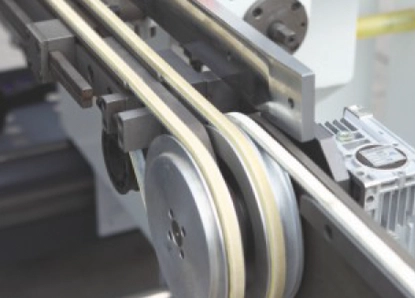

Belt Type Automatic Feeding Device
Precision Positioning Induction Device

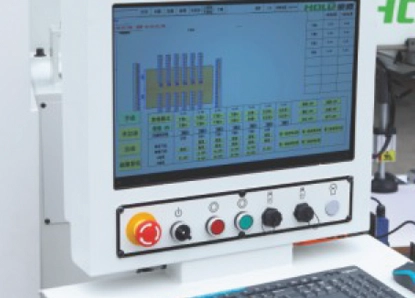

After Scanning The Barcode, The Display Will Show the Drill Bit Distribution

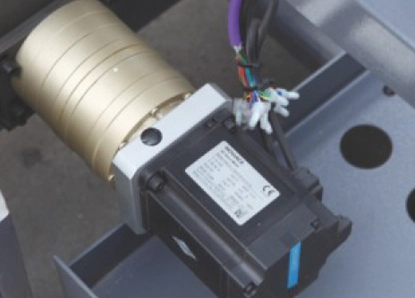

High Precision Servo Motor

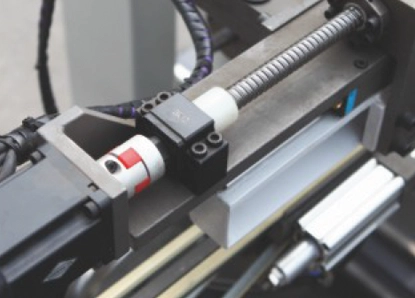

Precision Screw Drive
Drilling Unit
Electronic Counter
Precision Positioning Sensor
Specification of HB8042K
| Model | HB8042K |
|---|---|
| Max. width of workpiece | 2450 mm |
| Max. distance of two horizontal drilling head | 640 mm |
| Min. distance of vertical drilling row | 128 mm |
| Max. thickness of workpiece | 50 mm |
| Max. depth of horizontal drilling head | 40 mm |
| Max. depth of vertical drilling head | 70 mm |
| Rotating speed of drilling spindless | 2800 rpm (50 Hz) |
| Vertical box power | 0.75 kW x 5 |
| Vertical drilling power | 1.1 kW x 2 |
| Horizontal drilling power | 1.5 kW |
| Feeding motor power | 0.37 kW x 2 x 2 |
| Feeding speed | 70 m/min |
| Working pressure | 0.6 - 0.8 Mpa |
| Dimensions of machine | 4200 x 2300 x 1800 mm |
