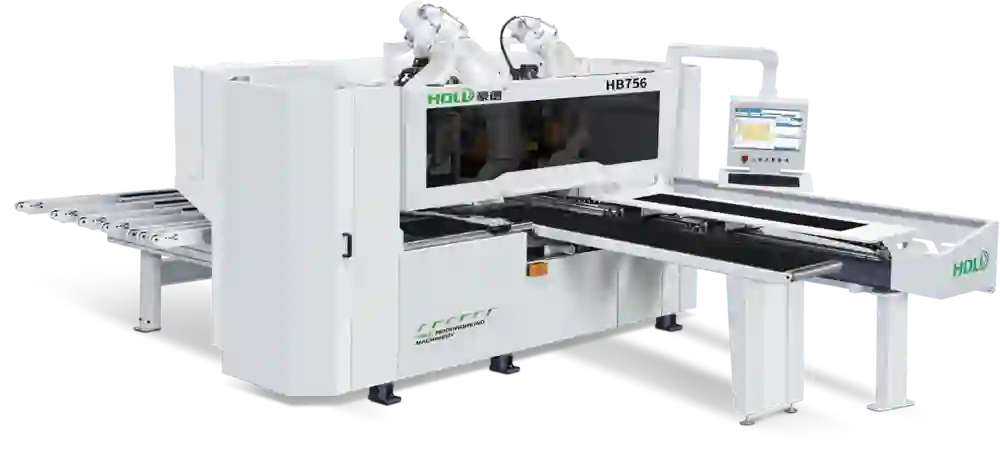

HB-756
CNC 6 Side Drilling Machine
Technical Info
- Machine Frame
• After artifical annealing and aging treatment, long-term use stability is good.
• Through the overall precision machining of the large gantry machining center, the precision is high - Main Work Units
• Front side: 1 drilling unit with 8 horizontal drill heads and 12 vertical drill heads, 1 pc 5.5 kW 5-axis ATC spindle, 1 pc 6 kW spindle.
• Back side: 1 drilling unit with 9 vertical drill heads, 2 pcs 6 kW spindle.
• Min drilling workpiece: 120 x 30 mm
• Slotting motor press panel is equipped with linear rail and synchronization, improving pressing stability
• The lower drilling package has an independent floating platform to ensure the accuracy of the lower drilling
• Super large pressure-stabilized gas storage tank makes the working pressure more stabler
• Intelligent side alignment system to check panel width
• Intelligent measurement detector for panel length - Transmission and Core Components
• It adopts precision gear rack transmission. The rack precision is DIN6, and it is ground by a precision grinder. High precision, no special refueling and maintenance are required
• CNC drill package is HOLD brand and it also adopts high-grade grinding gear transmission with high accuracy
• Two clamp hands are controlled by Servo for accurate positioning. When the gripper moves quickly, the lower gripper plate sinks to avoid touching the panel. Clamps are equipped with blowing function, which can blow off the dust on the gripper and avoid scratching the panel - Dust Collection
• Each processing part is equipped with dust collector - Software
• Drilling simultaneously
• Slotting up and down simultaneously
• Two panels processing (mirrored)
• Supporting DXF file from CAD software
• Automatic size identification, docking order design software, displaying the information of the thickness of the four-sided edges, are convenient for placing panel
• Supporting simulation function, it can check the processing action in advance to avoid wrong processing
• Big data analysis, it counts the processing times of each boring head up to the set use times, and prompts to change the boring head
• Processing statistics function: statistics of the QR code information of each panel, processsing start time, end time, time spent, and the time interval for placing panels to facilitate employee performance management
• The processed and waiting to processing files are displayed separately, which is convenient to check whether the processing panel is missing
• Multi-axis NC system, multi-channel technology. Scanning and processing simultaneously to line up panels waiting for processing, it reduces the time for scanning codes. At the same time, discharging and processing control adopts multi-channel control technology, so the clamp will return to the receiving position for catching new panel one processed panel discharged
• The network realizes remote service, remote update, backup, and bus communication technology, which can provide various alarm information more conveniently and in detail, and better connect to the alarm interface of the MES system
* Drill Bank Layout
- Upper Head: 1 set of upper drilling unit, 2 sets of motorized milling cutters, 1 set of 6kW spindle with saw blade, 1 set of 5.5kW rotatable ATC spindle + 6-tool disc magazine + 2 independent tool magazines
- Lower Head: 1 set of lower drilling unit, 2 sets of motorized milling cutters
- Upper drilling unit: 12 vertical drills, 8 horizontal drills
- Lower drilling unit: 9 vertical drills
Standard Configuration

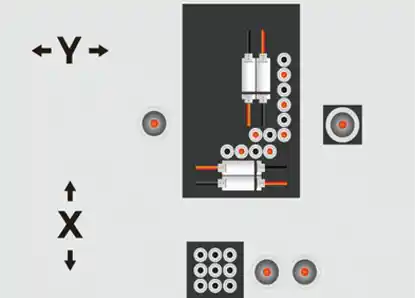

Drill Unit Layout

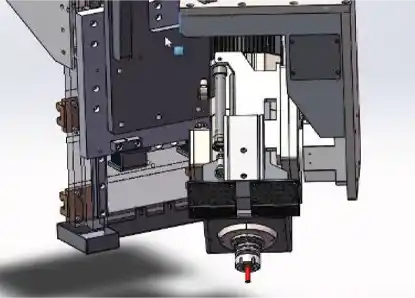

5.5 kW Upper Spindle : Five Axis Machining Spindle Diagram

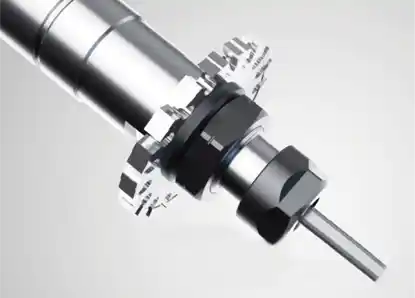

6 kW Upper Spindle

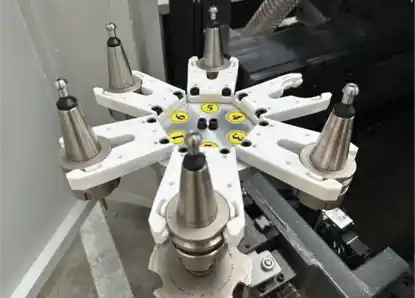

5.5 kW ATC Spindle + 6 Tools Disc Servo Automatic Tool Changer + Automatic Tool Setter
Independent Side Milling Tool Magazine + Independent Vertical Saw Blade Tool Magazine

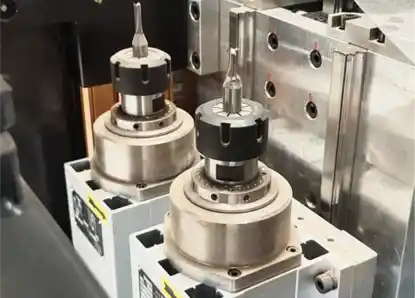

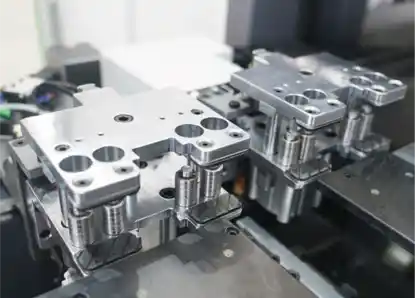

Lower Machining Unit with Dual Lower Spindles

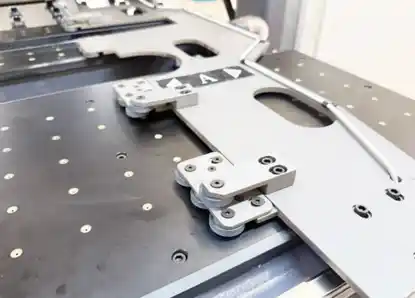

Dual Servo Controlled Grippers
Intelligent Upper Positioning System

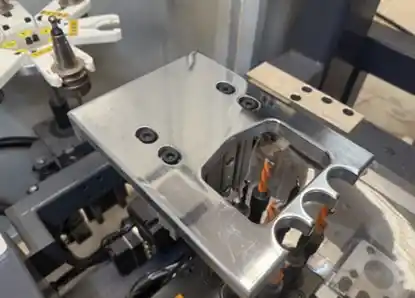

Independent Floating Support Table
Chromium Plate Main Table
Intelligent Side Alignment

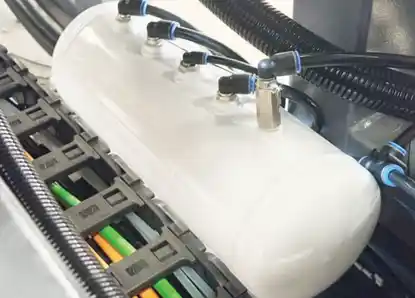

Pressure Stabilizing Air Tank
Compressed Air Booster
Precision Linear Guide Rails

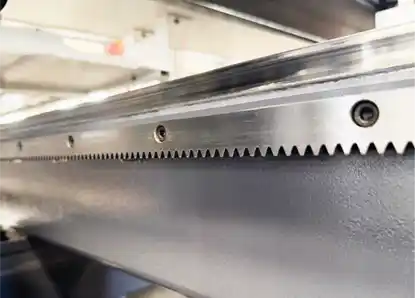

High Precision Gear and Rack

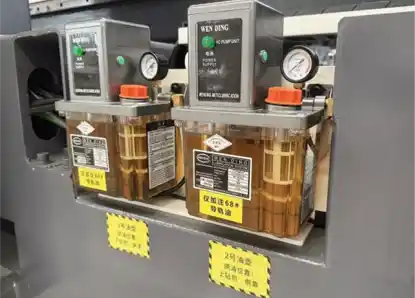

Automatic Oil Lubrication System

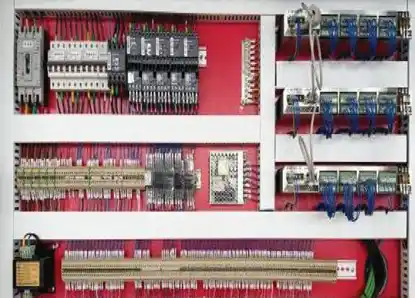

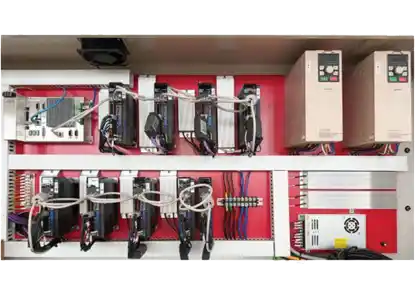

Electrical Control System
Servo Control System
Air Float Loading Platform

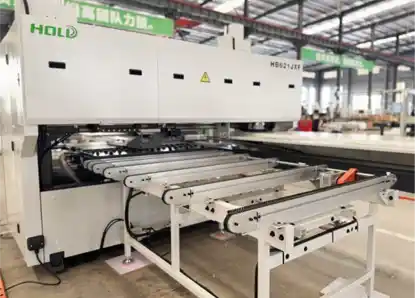

Discharge Transfer Table
Specification of HB756
| Model | HB756 | |
|---|---|---|
| Milling spindle | Total power | 31.6 kW |
| Spindle motor power | Up : 6 kW + 5.5 kW (auto tool change, 5 axis capable) Lower : 6 kW x 2 |
|
| Spindle rotation speed | 18000 rpm | |
| Max. positioning speed | X/U axis speed | 130 m/min |
| Y axis speed | 100 m/min | |
| Z axis speed | 50 m/min | |
| A axis speeed | 60 m/min | |
| V axis speed | 100 m/min | |
| W axis speed | 50 m/min | |
| Boring unit | Up vertical drilling head | 12 pcs |
| Up horizontal drilling head | X direction: 2 x 2 Y direction: 2 x 2 |
|
| Down vertical head | 9 pcs | |
| Panel size | Min. width | 30 mm |
| Max. width | 1210 mm | |
| Min. length | 70 mm | |
| Max. length | 3100 mm | |
| Min. thickness | 10 mm | |
| Max. thickness | 55 mm | |
| 5 axis spindle (rotation) | C axis | 360° |
| B axis | -45° to +45° (Note: 45° saw & 45° Lamello only processX + / X - edges) |
|
| (note: 45° saw & 45° lamello only process X+/X- edges) | ||
| Others | Dust extraction port | Up : 1 x φ200 mm + 1 x φ150 mm Lower : 1 x φ150 mm |
| Machine size | 6100 x 3200 x 1800 mm | |
| Weight | About 4500 kg | |
