*Machine picture shown is reference only
HB621GKH6
CNC Drilling Machine
Servo rotary 6 tools magazine

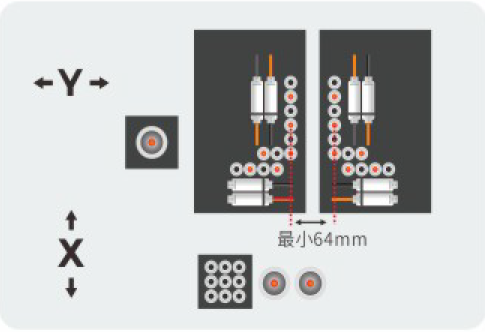

Drill set layout diagram
Configuration Instructions (Optional)
Drill Set With Vertical Saw Blade for Grooving (S)
Three Clamps, Servo Gripping (T)
Independent Side Aggregate (K)
Specialized for Aluminum Furniture (L)
Specification of HB621GKH6 CNC Drilling Machine
| Model | HB621GKH6 | |
|---|---|---|
| Milling and grooving spindle | Total power | 31.9 kW |
| Spindle motor power | 9 kW 6 kW x 2 |
|
| Spindle rotation speed | 18000 rpm | |
| Max. positioning speed | X axis speed | 130 m/min |
| Y axis speed | 100 m/min | |
| Z axis speed | 30 m/min | |
| A axis speed | 60 m/min | |
| U axis speed | 130 m/min | |
| V axis speed | 100 m/min | |
| W axis speed | 30 m/min | |
| Configuration of drilling set | Upper vertical drill set | 12 |
| Upper horizontal drill set | X: (2 + 2) x 2 Y: 2 x 2 |
|
| Lower vertical drill set | 9 | |
| Working size | Min. panel width | 30 mm |
| Max. panel width | 1210 mm | |
| Min. panel length | 70 mm | |
| Max. panel length | 3300 mm | |
| Min. panel thickness | 9 mm | |
| Max. panel thickness | 60 mm | |
| Other parameters | Dust holes | Φ 200 mm x 2 Φ 150 mm |
| Machine dimensions | 5900 x 3150 x 2500 mm | |
| Weight | 2900 kg | |
