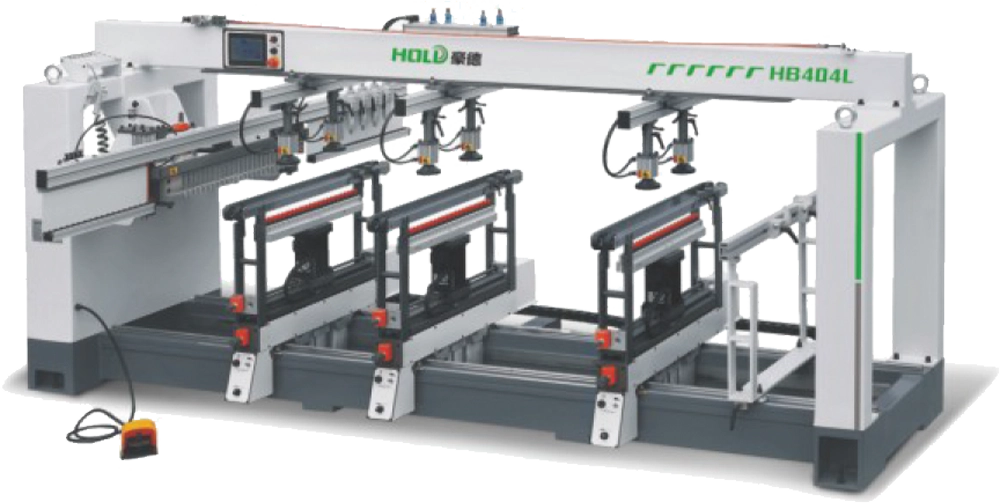

*Machine picture shown is reference only
HB-404L
Multi Rows Drilling Machine (Four Rows Drill)
- Motor quantity: 4
Specification of HB404L
| Model | HB404L |
|---|---|
| Max. width of workpiece | 2450 mm |
| Max. distance of two horizontal drilling head | 640 mm |
| Min. distance of vertical drilling row | 128 mm |
| Max. thickness of workpiece | 78 mm |
| Max. depth of horizontal drilling head | 40 mm |
| Max. depth of vertical drilling head | 70 mm |
| Rotating speed of drilling spindles | 2800 rpm (50 Hz) |
| Vertical drilling power | 1.5 kW |
| Horizontal drilling power | 1,5 kW |
| Working pressure | 0.6 - 0.8 Mpa |
| Dimensions of machine | 3450 x 2500 x 1800 mm |
