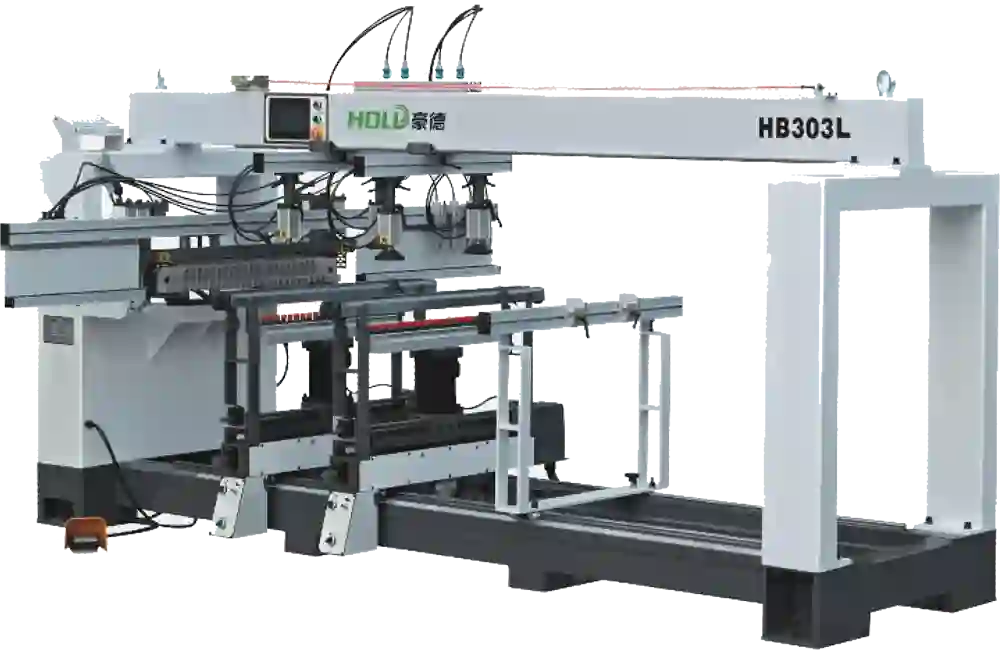

HB-303L
Three-row Boring Machine
- Machine frame adopts prolonged gantry structure. It is firm and stable
- Two sides simultaneous process
- Digital counter to display the vertical drilling row position intelligently. Operation is convenient. (OPTIONAL)
- Motor quantity: 3
Standard Configuration

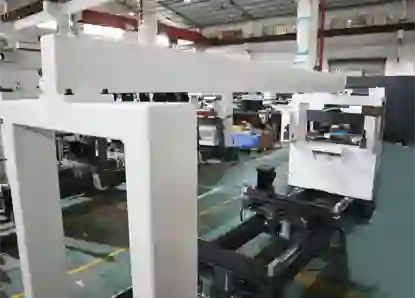

Heavy Duty Gantry Frame

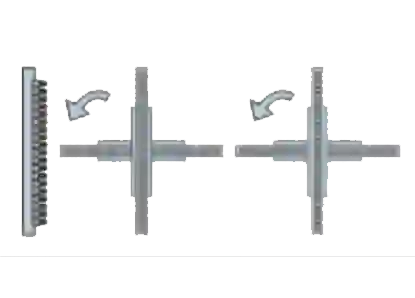

Simultaneous Processing of Two Sides

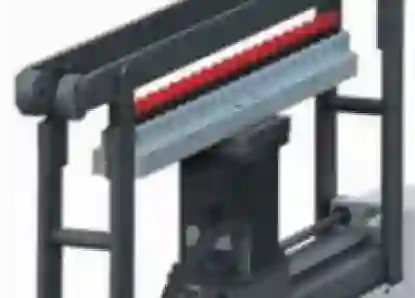

Drilling Unit: 21 Drilling Head for Each Row

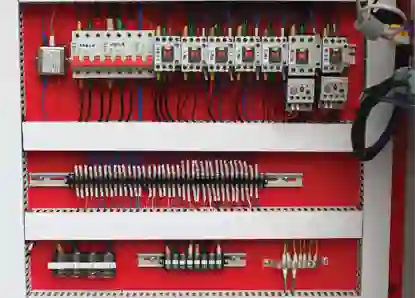

High Quality Electrical Appliances
Optional Configuration

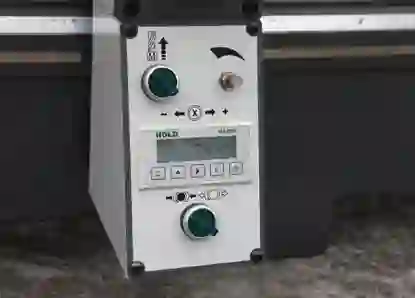

Digital Display (Optional)
Specification of HB303L
| Model | HB-303L |
|---|---|
| Max. machining width (x axis) | 2450 mm |
| Max. distance of horizontal drilling spindles | 640 mm |
| Min. distance of vertical drilling spindles | 128 mm |
| Max. panel thickness | 78 mm |
| Max. horizontal drilling depth | 40 mm |
| Max. vertical drilling depth | 70 mm |
| Vertical drilling row power | 1.5 kW |
| Horizontal drilling rwo power | 1.5 kW |
| Drilling spindle speed | 2800 rpm (50 Hz) |
| Working pressure | 0.6 - 0.8 Mpa |
| Machine size | 3450 x 2500 x 1800 mm |
