| MODEL | TF-500DH |
|---|---|
| Max. opening of headblock | 500 mm |
| Length of standard 2 headblocks carriage | 2420 mm |
| Length of rails for the above, each | 6M |
| Distance between rails | 820 mm |
| Diameter of truck wheels | 140 mm |
| Net weight (with carriage frame) about | 800 kg |
| Boxed weight for export, about | 1000 kg |
| Volume of export boxes, about | 7.5M³ |

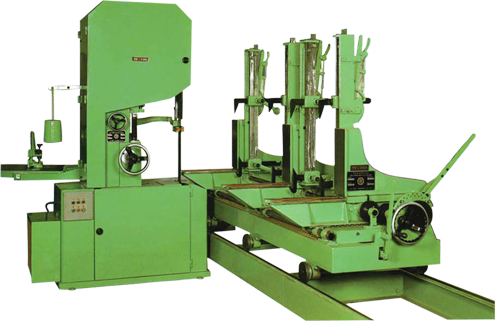

MODEL : TF-700A • TF-500DH
- The machine can be operated without electric equipment.
- The machine can be installed without basic works, such as digging of ground and arranging of concrete, then, the charge may be saved instead of charge for the site.
| MODEL | TF-700A |
|
|---|---|---|
| Wheel diameter and face | 711 x 95 mm |
|
| Size of sawblade to be used | Width | 102 mm |
| Length | 5300 mm |
|
| Thickness (BWG) | 21 - 22 mm |
|
| Max. diameter of log in center out | 457 mm |
|
| Distance between saw and frame | 356 mm |
|
| Max. distance from saw to fence | 254 mm |
|
| Pemissible wheel speed | 750 - 1000 R.P.M. |
|
| Standard size of belt pulley | 254 x 76 mm |
|
| Power required | 3 - 5 HP |
|
| Net weight, about | 800 kgs |
|
| Boxed weight for export, about | 1200 kgs |
|
| Volume of export boxes, about | 95 cu.ft. |
|
MODEL : TF-1100DH -TF-900DH
| MODEL | TF-1100DH | TF-900DH |
|---|---|---|
| Max. opening of headblock | 1100 mm | 900 mm |
| Length of standard 3 headblocks carriage | 4.3M | 3.6 M |
| Length of rails for the above, each | 16.5M | 16.5 M |
| Distance between rails | 1300 mm | 1090 mm |
| Diameter of truck wheels | 310 mm | 310 mm |
| Net weight (with carriage frame) about | 2200 kg | 1750 kg |
| Boxed weight for export, about | 2600 kg | 2100 kg |
| Volume of export boxes, about | 230 cu.ft. | 180 cu.ft. |
