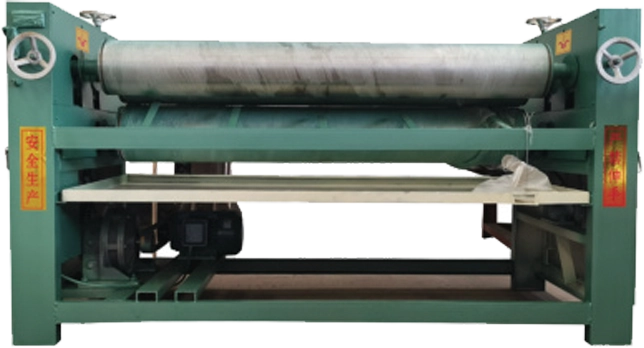

GS-5F
With Frequency Conversion, Roller Diameter: ⌀310 mm or ⌀420 mm
GS-5
Without Frequency Conversion, Roller Diameter: ⌀310 mm or ⌀420 mm
Specification Glue Spreader 5' Z-Type
| Model | GS-5 | GS-5F |
|---|---|
| Manufacturer standard | National standard |
| Speed | 24 m/min |
| Assembly form | rubbing |
| Rubber roller length | 1700 mm |
| Glue form | double-sided glue |
| Transfer method | sprocket drive |
| Lathe processing | CNC lathe |
| Rubber roller diameter | 245 mm / 420 mm |
| Rubber roller material | green gum |
| Iron roller length | 1700 mm |
| Diameter of iron roller | 216 mm |
| Iron roller material | the outer is made of stainless steel |
| Motor model | 3 kW-4 |
| Chain | 6 points single chain |
| Bearing | rubber roller P209 iron roller T208 |
| Reducer model | no. 3 cycloid or 250 reducer |
| Electronic component | great wall Brand contactor |
