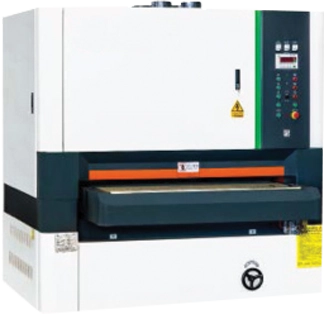

FSXD2213R-RP
Body Lift Wide Belt Sander
Characteristic:
- This machine is mainly used for sanding the surface of plywood, block board, plastic board, decorative board, and so on
- The whole body adopt a box-shaped welded structure, which has enough rigidity and improve service life of the machine
- The diameter of sanding roller is more langer, the service life of the belt is more longer, it has precise dynamic balance and work smoothly
- The feeding adopts frequency conversion, feeding speed is 2 – 40 m/min production efficiency is more higher
- Simple and clear operation, easy maintenance, good safety, low failure rate, and the performance has reached the international level
- This model is a down sanding sander, which is suitable for connecting production line

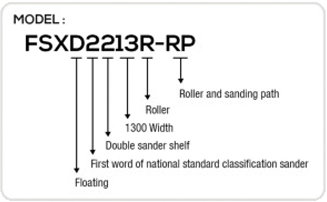

Specification FSXD2213R-RP
| Model | FSXD2213R-RP |
|---|---|
| Processing width | 1300 mm |
| Processing thickness | 2.5 - 80 mm |
| Feeding speed | 6 - 30 m/min |
| Belt speed | 20 m/s. 18 m/s |
| Size of sanding belt | 1330 x 2500 mm |
| Total motor power | 65.42 kW |
| Aorking air pressure | 0.55 MPa |
| Air speeding dust suction | 25 - 30 m/s |
| Air volume of dust suction | 7000 m3/h |
| Compressed air consumption | 0.15 m3/min |
| Dimension of the machine | 2500 x 2100 x 2200 mm |
| Weight | 4300 kg |
