A super economy priced!
Turn your wood waste into valuable reclamation!
Based on the corporate philosophy of continuous breakthrough and innovation since its establishment 15 years ago, CHENG
KUANG has dedicated itself to the research and development of various finger jointing systems. Nowadays, we are proudly
introducing an whole new manual operated finger jointing system. This FJ-16 jointing system is engineered with the traditional CKM quality, and the super economy priced. It is affordable for any wood products manufacturer. So turn your wood waste into valuable material and create added profits with CKM FJ-16 Manual Finger Jointing System.

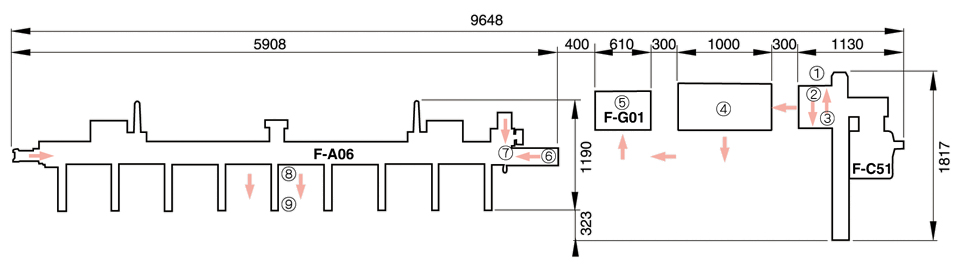

Machining Sequence Flow Chart
1 Material loaded on table. Material quality may be inspected at this time.

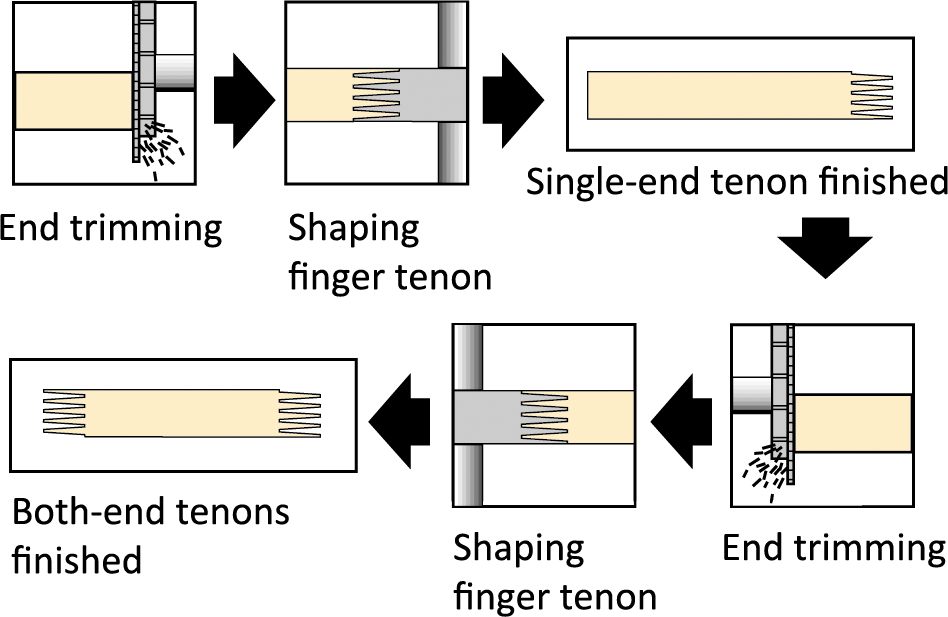

2 Perform trimming and shaping operations on left end of workpiece.
3 The operator change the material to right end for trimming and shaping operations.
4 After both ends of tenon have been cut, place the workpieces onto the table waiting for gluing jobs.

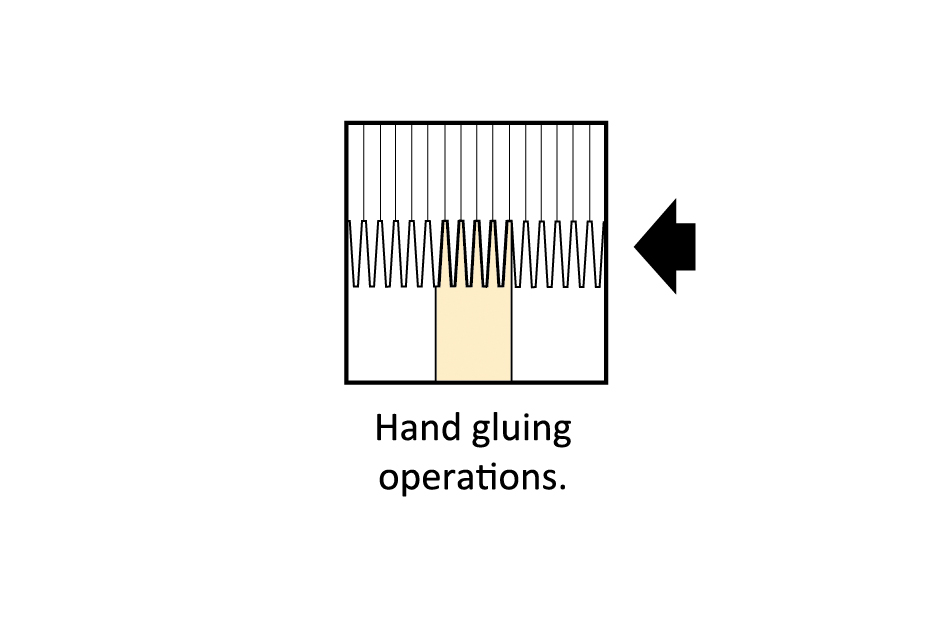

5 Performing hand gluing operations on F-G01.

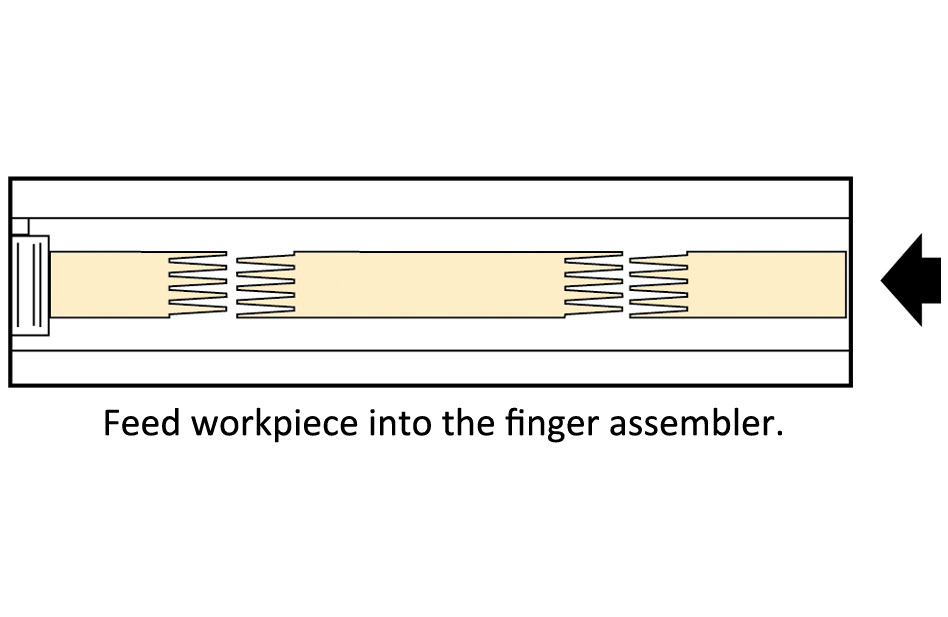

6 The operator feeds workpiece to finger assembler (F-A06) for jointing operations.
7 Cut the workpiece to a desired length.
8 Finger assembler performs jointing jobs.
9 Final products outfeed and stay for a while for drying.

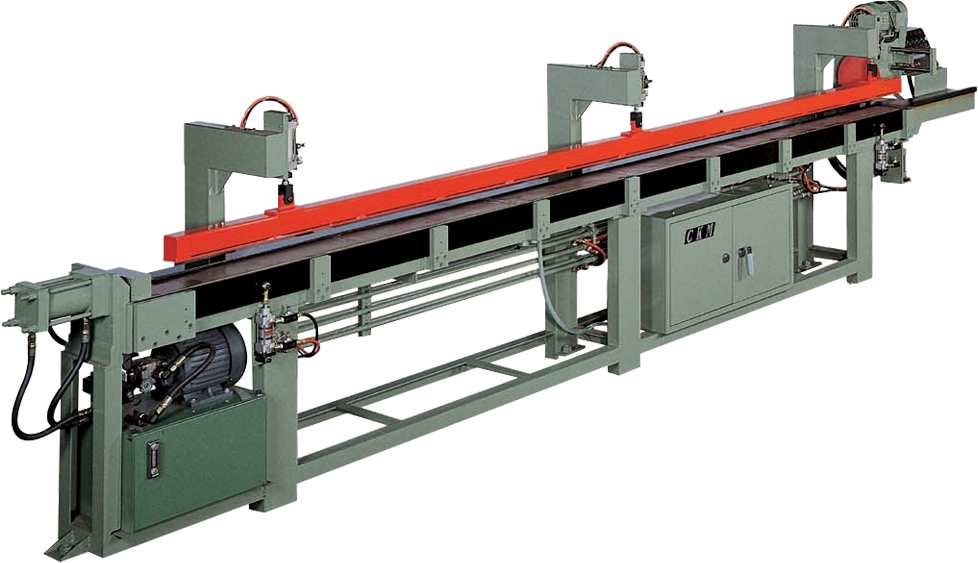

F-A06 Finger Assembler
- The unit is suited for jointing two short sticks end to end for producing a longer one, up to 4.5 meters in length.
- Except the material infeed and cut off are operated maually, entire jointing motions are automatically operated.
- Powerful hydraulic system provides extremely secure jointing results.

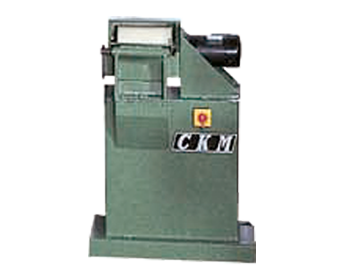

F-G01 Hand Gluing Unit
- The unit is designed for gluing the finger tenons before assembling, that greatly upgrades the jointing result.
- The unit is operated manually.
- Maximum width of gluing is 152 mm.

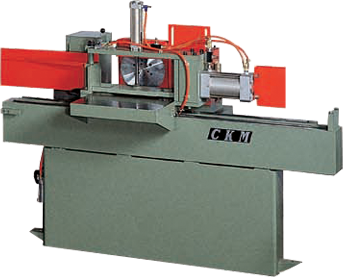

F-C51 Finger Shaper
- Designed for shaping the right and left tenon on a workpiece.
- A hand operated model . All motions are performed manually.
- The unit is powered by pneumatic system.
Spesifikasi FJ-16
| F-A06 Finger Assembler | |
|---|---|
| Available length of product | 4.5 M |
| Available thickness of product | 60 mm |
| Available width of product | 160 mm |
| Finger assembly pressure | 0 - 10 kg/cm² |
| Hydraulic power unit | 3 HP |
| Power Required | |
| For sizing saw | 2 HP |
| Machine dimensions (L x W x H) | 5930 x 650 x 1400 mm |
| F-G01 Hand Gluing Unit | |
|---|---|
| Max. workpiece width | 152 mm |
| Applicator Head | |
| Speed | 15 M/minute |
| Diamater | 152 mm |
| Power required | ⅛ HP (3 PH), ⅛ HP (1 PH) |
| Overall dimension (L x W x H) | 610 x 420 x 840 mm |
| Net weight | 78.5 kgs |
| Gross weight (With crate) | 100 kgs |
| F-C51 Finger Shaper | |
|---|---|
| Max. available width working table | 450 mm |
| Range of material length | 125 - 1000 mm |
| Range of material width | 30 - 160 mm |
| Trimming saw speed | 2800 rpm / 50 HZ, 3400 rpm / 60 HZ |
| Scoring saw speed | 5000 RPM |
| POWER REQUIRED | |
| For trimming saw | 3 HP |
| For finger cutter | 5 HP |
| Dust outlet diameter | 6" x 1, 4" x 1 |
| Machine dimensions (L x W x H) | 1780 x 840 x 1400 mm |
