Four Set Vertical Drying

FC-1300# Four Set Vertical Drying

Function: suitable for drying long door frames, door lines, picture frames, curtain frames, tongue and groove panels, door and window accessories, furniture accessories, corner moldings, floors and other strip workpieces after coating with PU, AC and water-based paints.

Conveyor configuration

Transportation way: belt
Delivery pallet quantity: 88PC (1350 x 5500)
Heating aperture diameter: Ø300
Highest temperature: 80°

Tray transversal motor speed

Power: 2.2 kW x 3

Lifting motor

Power: 4 kW
Amount: 1

Main exhaust fan

Power: 11 kW x 1
Exhaust air: 20000 – 25000 m3/h
Working pressure: 0.8 Mpa
Circulatory system: internal wind filter circulation system
Quantity of dry board: 500 m2/2h

Electrical appliances

Inverter
Specification: SC3-043, Amount: 15
Human computer interface (HMI)
Feed roller conveyor: 5m/min, Feed tray speed: 5m/min
Lifting motor
Specification: 3.7 kW, Amount: 1
Low voltage electrical appliances: chint

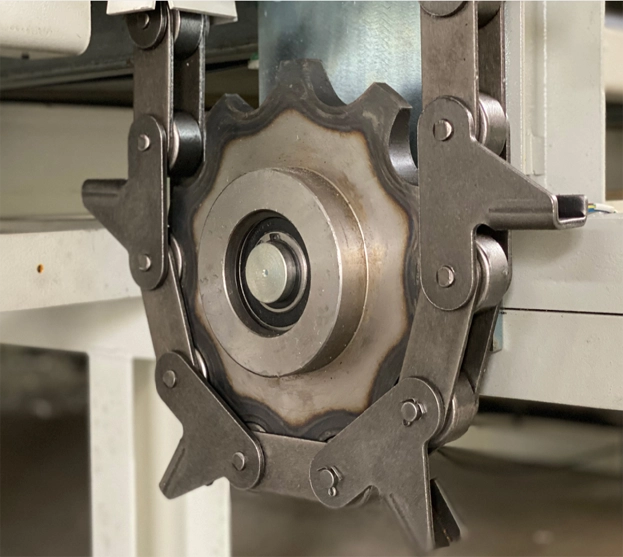

Detail of View Part 1 FC-1300# Three Dimensional Drying Room

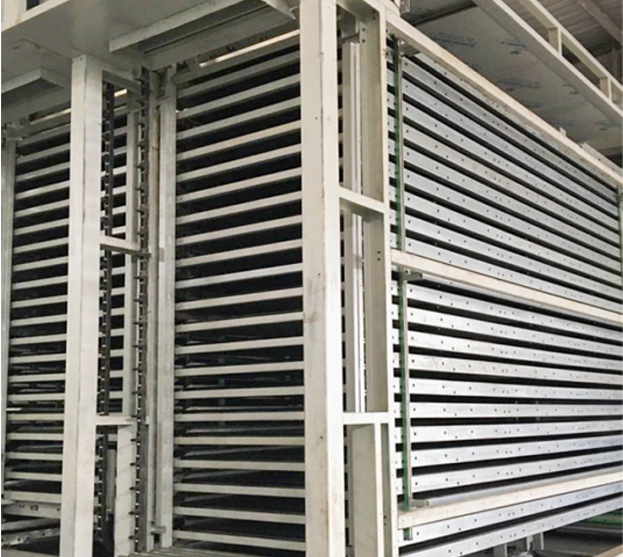

Detail of View Part 2 FC-1300# Three Dimensional Drying Room

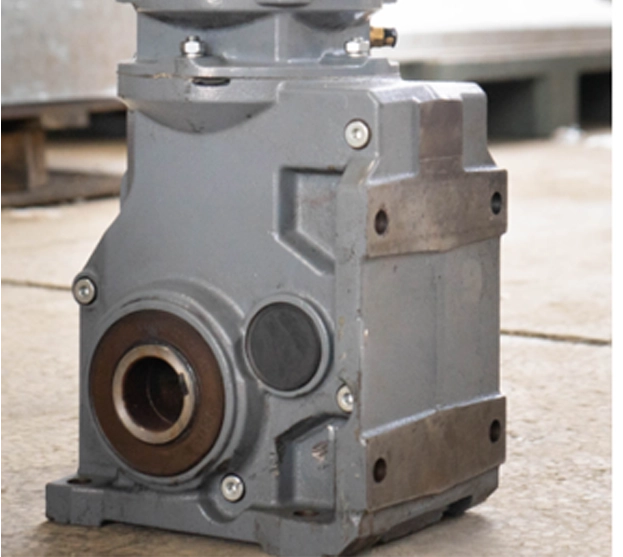

Detail of View Part 3 FC-1300# Three Dimensional Drying Room

Specification FC-1300# Four Set Vertical Drying

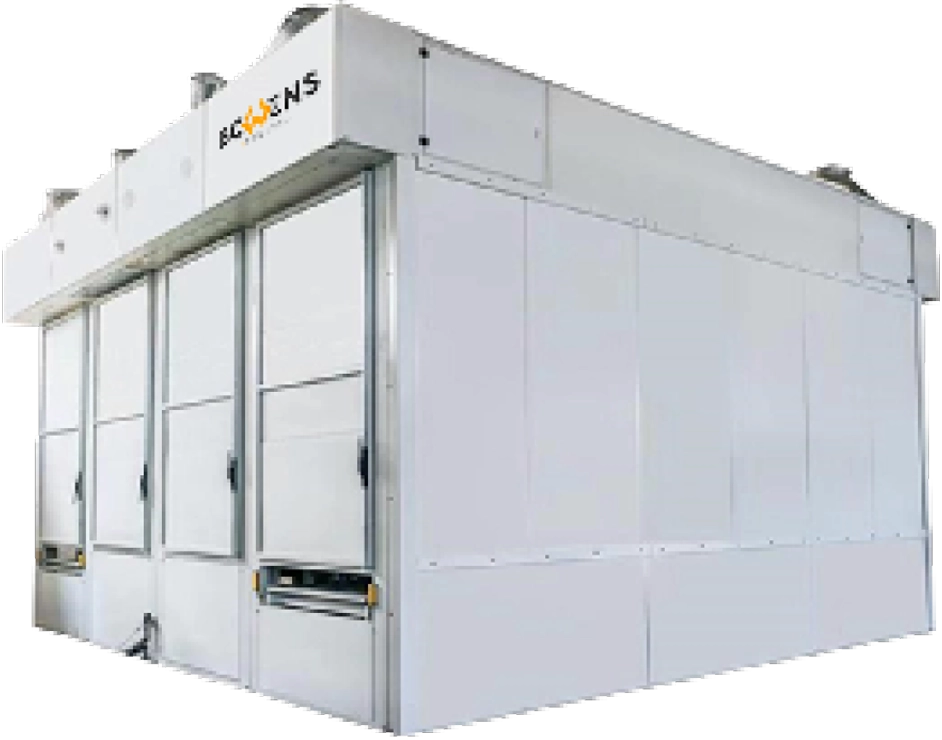

Model	FC-1300# Three-Dimensional Drying Room
Effective working width	0 - 1300 mm
Effective working thickness	10 - 70 mm
Speed	3 - 6 m/min
Minimum processing length	300 mm
Machine length	6940 mm
Power	47.3 kW
Voltage	380 V
Overall diameter	6940 x 7220 x 5590 mm
Weight	28 T
Electronic box size	1200 x 600 x 2000 mm
