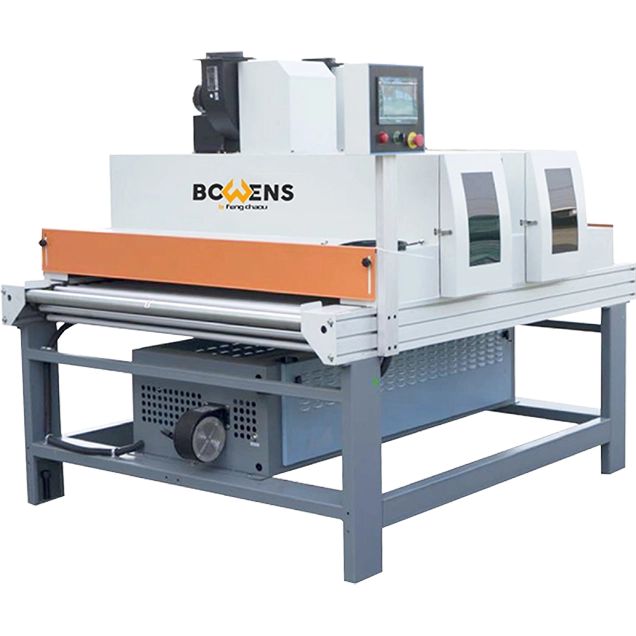

FC-1300# Electronic Double Lamps UV Dryer
Function: widely suitable for instant drying after using UV light-cured coatings such as general flat painting
Description of machine
- Each group of lamps is controlled by a separate electrical box to achieve better heat dissipation
- Energy control (0% / 50% / 100%)
- Integrated electrical box or independent electrical box can be selected
- The electronic transformer with photoelectric induction system to standby without working components
Lamp configuration
- Mercury lamp transformer
Length: 1490 mm
Mercury lamp power: 9.7 kW
Amount: 2 sticks - Gallium lamp transformer
Length: 1490 mm
Gallium lamp Power: 9.7 kW
Amount: 2 sticks
Drive wheel configuration
- Size: Ø96 x 1320
- Material: 45 # steel
- Requirements: hard chrome plating
- Amount: 2 sticks
Conveyor configuration
- Transportation way (optional): aluminum tube/chain mesh/stainless steel mesh
- Lampshade (choose): full focus
Electrical appliances
- Inverter
Specification: SL3-043
Amount: 1 set - Conveyor motor
Specification: 0.75 kW
Amount: 1 set - Control interface
Specification: GL070
Amount: 1 set - Low voltage electrical appliances: chint
- Exhaust diameter and quantity: Ø150 x 1

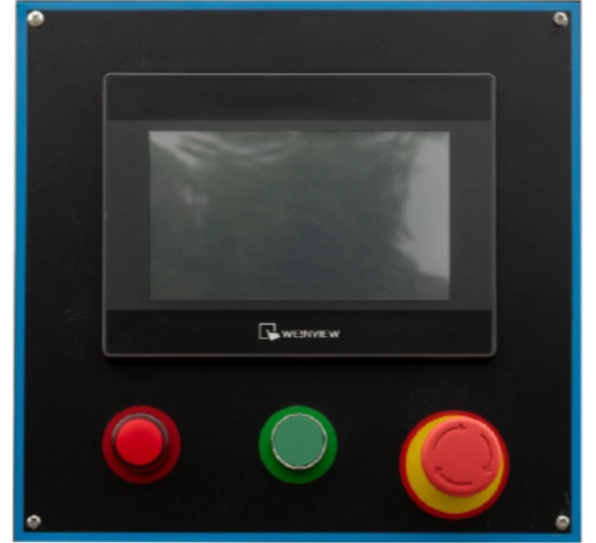

Control panel

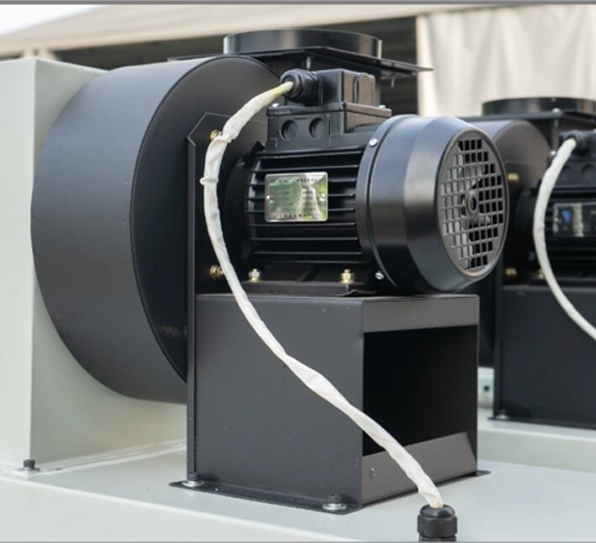

Radiator fan

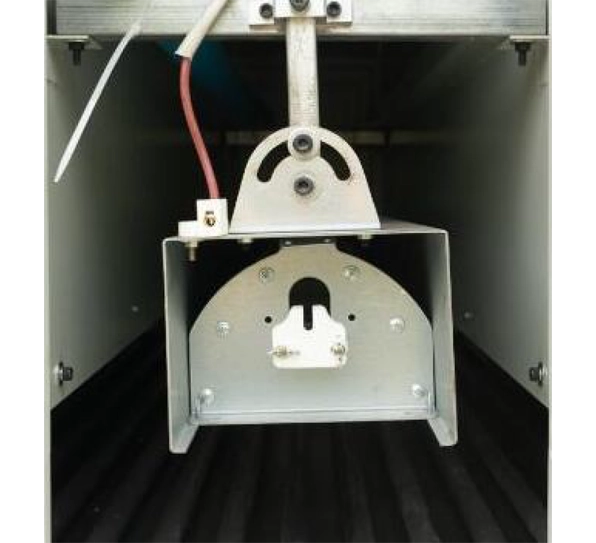

UV lamp shade

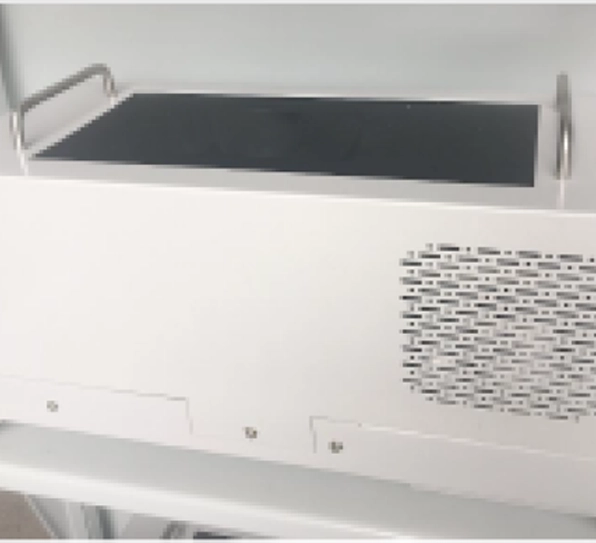

Electronic transformer
Specification FC-1300# ELectronic Double Lamp UV Dryer
| Model | FC-1300# Electronic Double Lamp UV Dryer |
|---|---|
| Effective working width | 0-1300 mm |
| Effective working thickness | 3-80 mm |
| Feeding Speed | 5-20 m/min |
| Minimum processing length | 300 mm |
| Power | 22.5 kW |
| Voltage | 380V |
| Overall dimensions (L x W x H) | 2000 x 1880 x 1900 mm |
| Energy value mercury lamp (UVA) 15 m/min | 300-400 mJ |
