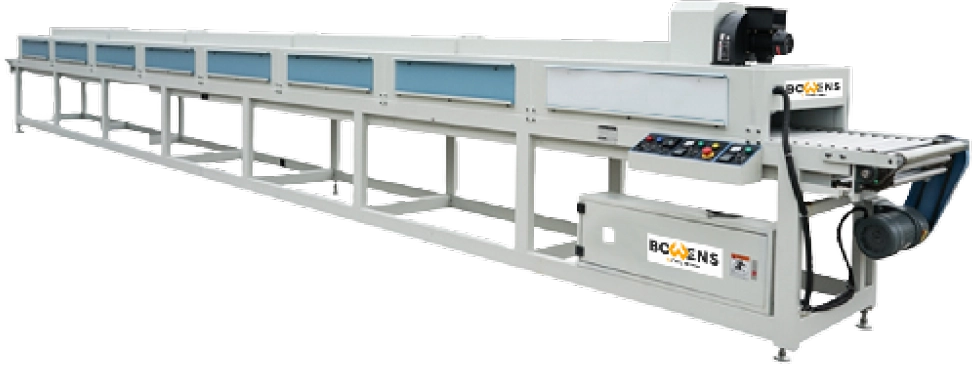

6M Hot Air Dryer

FC-1300# 6M Hot Air Dryer

Description: this machine use 100 x 50 high-strength square tube steel, the light source use LR Far-infrared ceramic lamp heating, total 15 pcs; with hot air circulation system.

Function: this machine is used for leveling and defoaming of paint to make the paint film on the surface of the board smoother

Lamp configuration

Lamp power: 1.5 kW
Length: (L) 1330
Lamp number: 15 pcs

Conveyor configuration

Transportation way (optional): aluminum tube/chain mesh/stainless steel mesh
Chain spacing: 20 mm
Roast tibe specification: ceramic baking tube

Drive wheel configuration

Size: Ø136 x 1330
Material: 45# steel
Requirements: rubber
Amount: 2 pcs

Electrical appliances

Inverter
Specification: SL3-043-0.75
Amount: 1 set
Conveyor motor
Specification: 0.75 kW
Amount: 1 set
Low voltage electrical appliances: chin
Centrifungal fan: 250W, Amount: 1 set

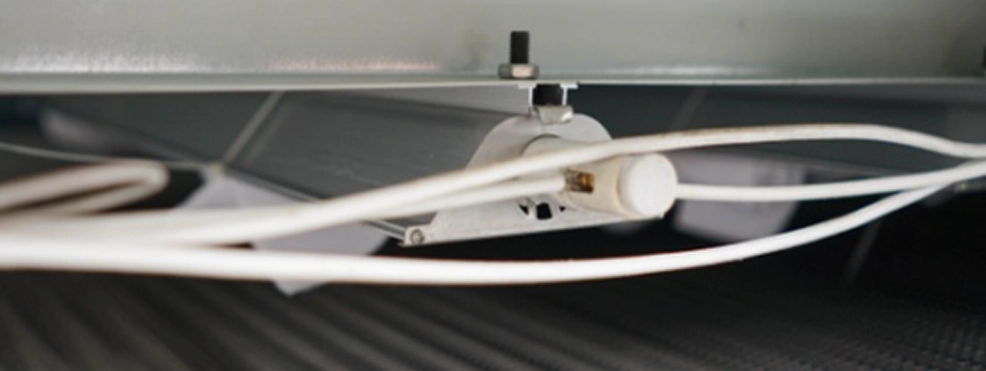

Detail of View Part 1 FC-1300# 6M Hot Air Dryer

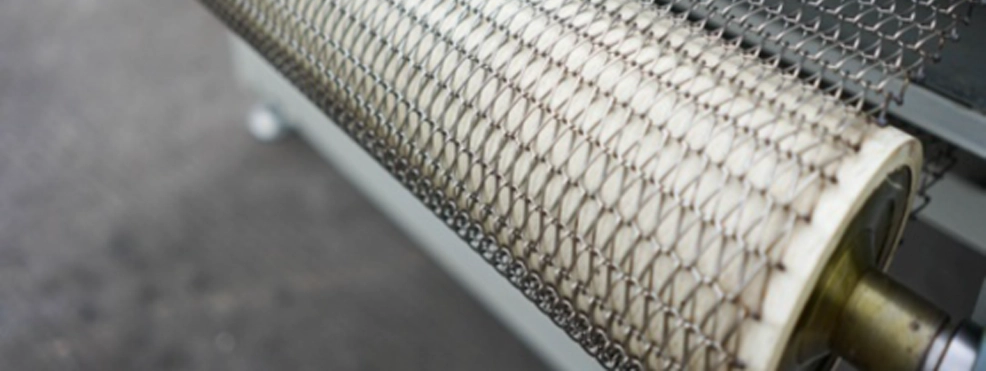

Detail of View Part 2 FC-1300# 6M Hot Air Dryer

Detail of View Part 3 FC-1300# 6M Hot Air Dryer

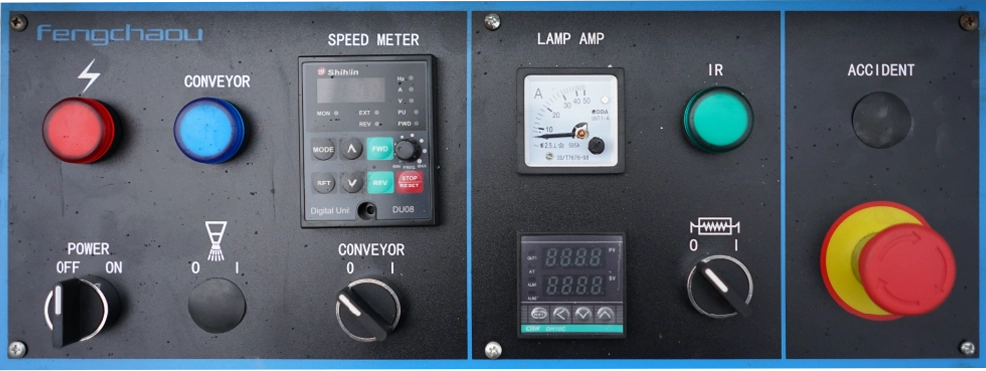

Detail of View Part 4 FC-1300# 6M Hot Air Dryer

Specification FC-1300# 6M Hot Air Dryer

Model	FC-1300# 6M Curtain Machine
Effective working width	0 - 1300 mm
Effective working thickness	3 - 50 mm
Speed	5 - 60 m/min
Minimum processing length	400 mm
Machine length	6000 mm
Power	13.1 kW
Voltage	380V
Overall dimensions	6000 x 2000 x 1300 mm
Temperature range	0° - 110°
Curtain thickness	6-11 μm (the thinnest is 5 μm)
Heating tank temperature	0° - 110°
Coating thickness	Minimum adjustment 0.5 mm
Curtain pumper motor power	1.5 kW
Anti-dust device	Dust-free acrylic cover
Lifting and lowering method of curtain knife	Manual lifting
