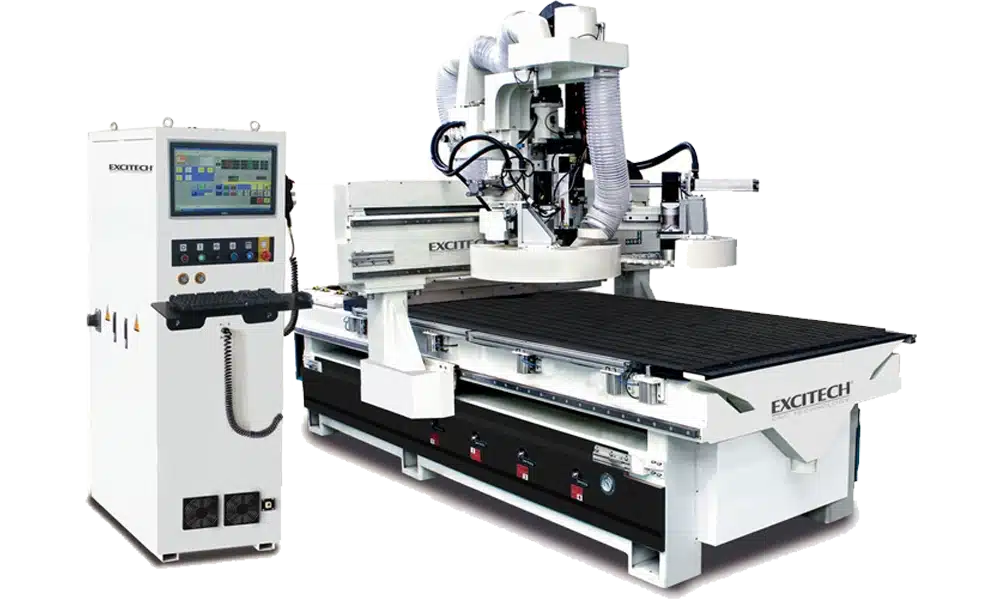

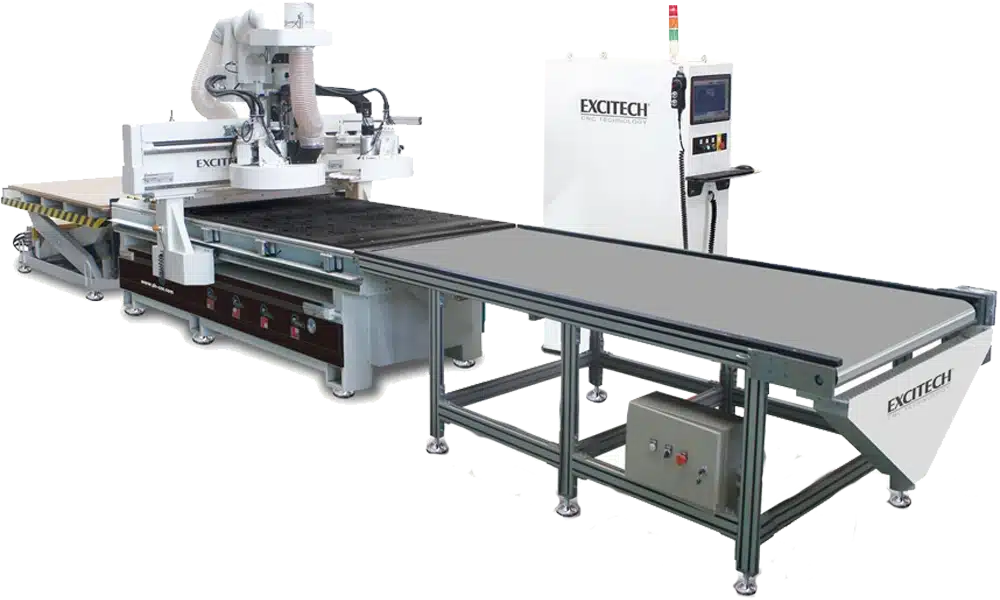

ES-1224L
Precision Ball Screw Driven Machine
(Auto Infeed & Outfeed Optional)
Applications
Cabinet doors, Panel furniture, wardrobe, door, office furniture, custom furnite, solid wood furniture and door etc.
This machine is designed to meet some of the more demanding or craft oriented application requirements to whom precision is the key.

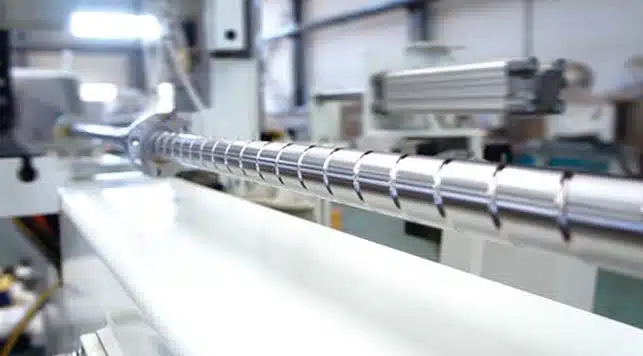

That is why we use precision ball screw on all 3 axes to ensure a smoother and more accurate performance.

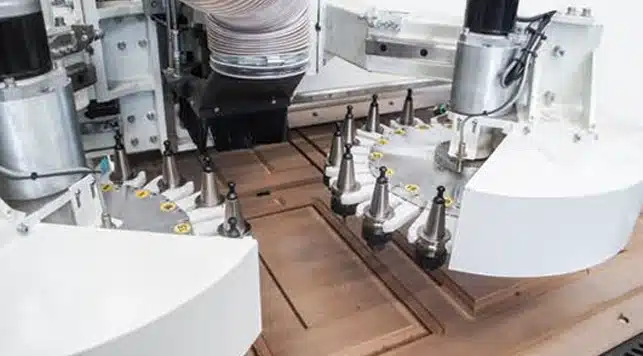

For some customers, carrying out a job will require use of multiple tools. With this machine, you have dual 8/16/18 slot tool changers to meet the diversity of your jobs.
The carousels travel with the spindle, therefore dramatically improve the overall performance by reducing the tool changing time.

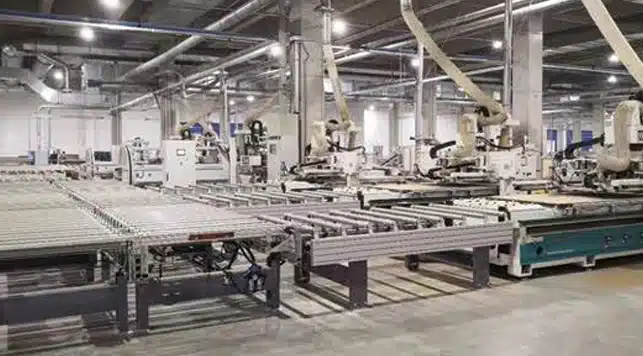

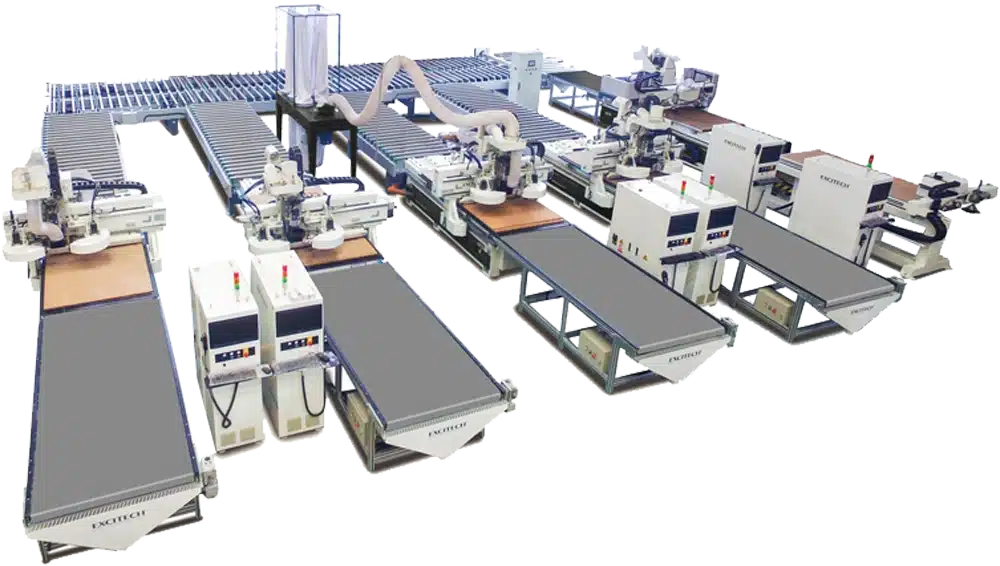

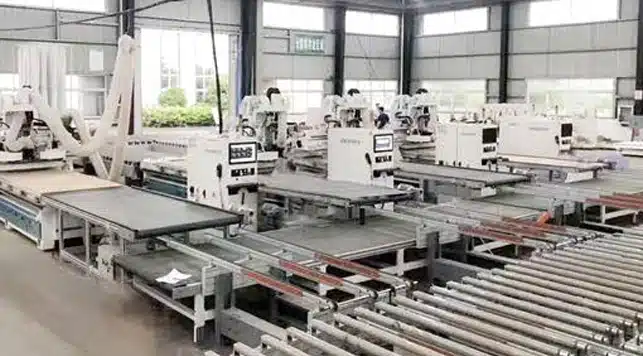

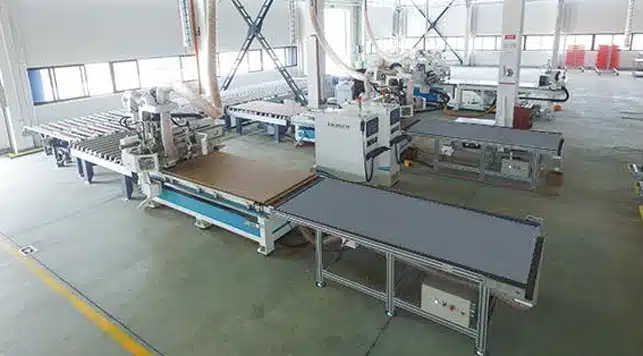

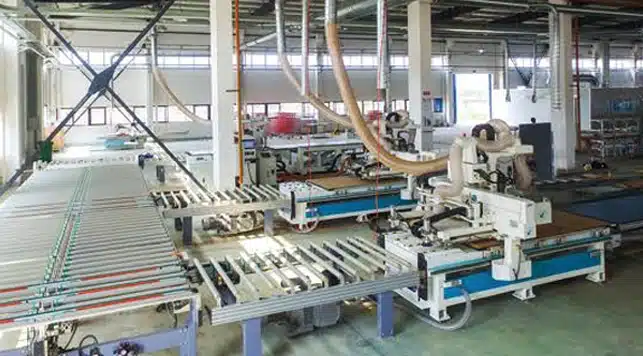

Automated Cabinet Door Production Line
*Customizable to suit different factory layout and application requirements

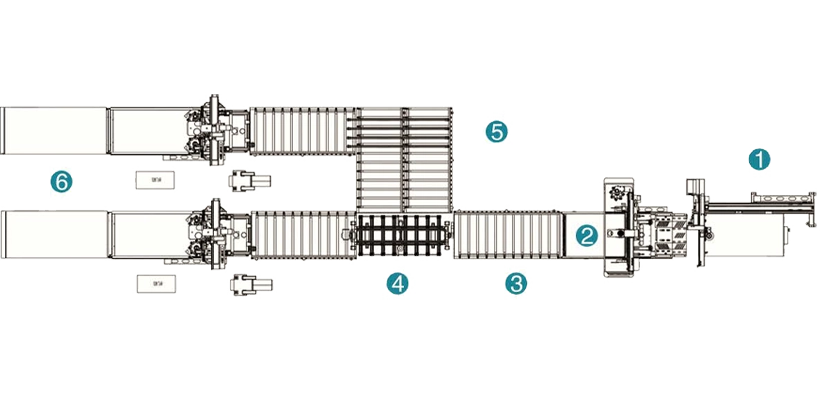

Cabinet Door Production Processes:
1. Prelabeling
2. Drilling and Grooving
3. Automatic Outfeed
4. Panel flipper
5. Return conveyor
6. Engraving and nesting
Specification Precision Ball Screw Driven Machine
| Model | ES-1224D |
|---|---|
| Traveling size | 2500 x 1260 x 200 mm |
| Working size | 2440 x 1220 x 40 mm |
| Table size | 2440 x 1220 mm |
| Net weight | 2800 kg |
| Transmission | X/Y/Z ball screw drive |
| Table structure | Vacuum table |
| Spindle power | 9 kW |
| Spindle speed | 24000 r/min |
| Traveling speed | 40 m/min |
| Working speed | 15 m/min |
| Tool magazine | Carousel |
| Tool slots | 16 / 32 / 36 |
| Driving system | Yaskawa / Excitech |
| Voltage | AC380 / 3PH / 50 Hz |
| Power | 22 kW |
| Controller | Syntec / Excitech |
