Features
- Rapid switch between the two heads for different applications reduces down time to the minimum
- Two tool magazines up to 16 slots—multiply your choices and cater to your appetite for variety.
- Working speed, travelling speed and cutting speed can all be controlled separately, dramatically improve productivity and finishing quality.
This machine is designed to meet some of the more demanding or craft-oriented application requirements to whom precision is the key.
That is why we use precision ball screw on all 3 axes to ensure a smoother and more accurate performance.
For some, carrying out a job will require use of multiple tools. with this machine, you have 16-slot tool changer to meet the diversity of your jobs. the carousels travel with the spindle,therefore dramatically improve the overall performance by reducing the tool changing time.
That is why we use precision ball screw on all 3 axes to ensure a smoother and more accurate performance.
For some, carrying out a job will require use of multiple tools. with this machine, you have 16-slot tool changer to meet the diversity of your jobs. the carousels travel with the spindle,therefore dramatically improve the overall performance by reducing the tool changing time.

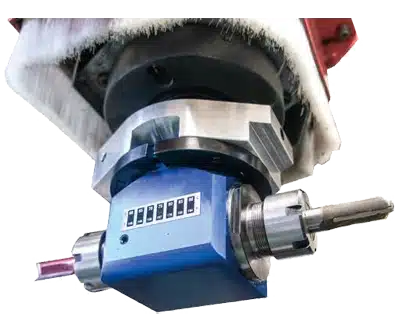

This Machine is designed to hold aggregates as well.
Double Efficiency with Double Spindles!
- Designed with double spindles, and double tool magazines that enable synchronous operation.
- manufactured for heavy-duty operations and equipped with a movable table.

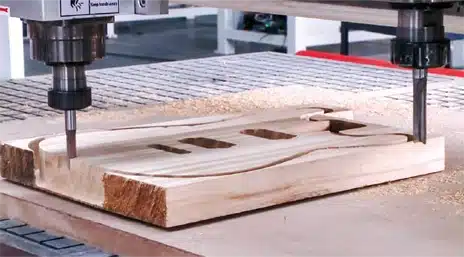

- Two heads can work individually, or do the same job simultaneously- more than doubles the efficiency!

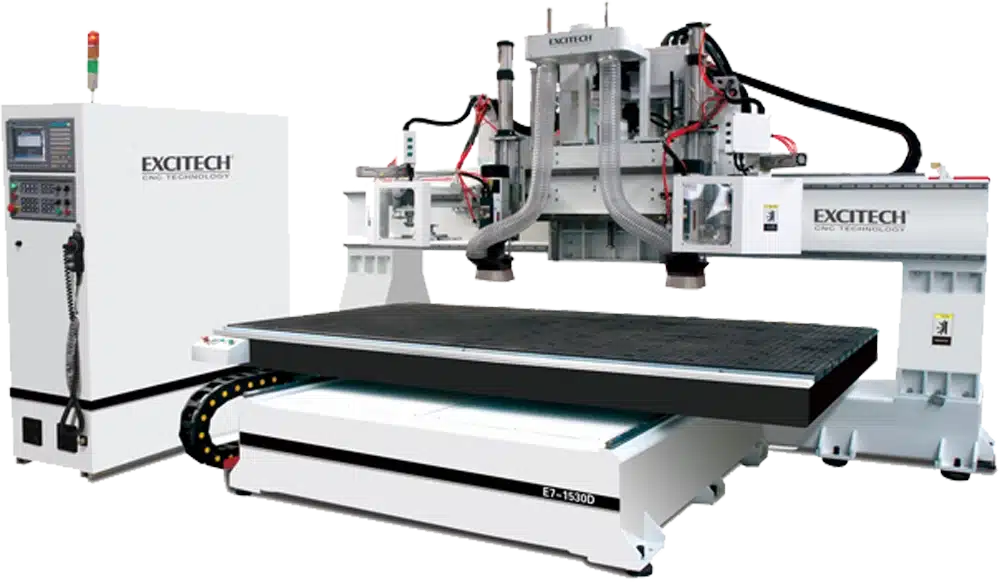

Spesifikasi E7 - Movable Table Work Center
E7 series | E7-1530D | E7-3020D |
---|---|---|
Travelling size | 1600*3100*250mm | 3040*2040*250mm |
Working size | 1550*3050*200mm | 3000*2000*200mm |
Table size | 1530*3050mm | 3050*1980mm |
Transmission | X/Y rack and pinion drive,Z ball screw drive |
|
Table structure | Vacuum Table |
|
Spindle power | 9.6/12.0 KW |
|
Spindle speed | 24000 r/min |
|
Travelling speed | 60m/min |
|
Working speed | 20m/min |
|
Tool magazine | Carousel |
|
Tool slots | 8*2 |
|
Driving system | Yaskawa |
|
Voltage | AC380/3PH/50HZ |
|
Controller | OSAI/Syntec |
