E4 Series
CNC Nesting with Automatic Pre-Labeling
E4 Upholstery Furniture Production

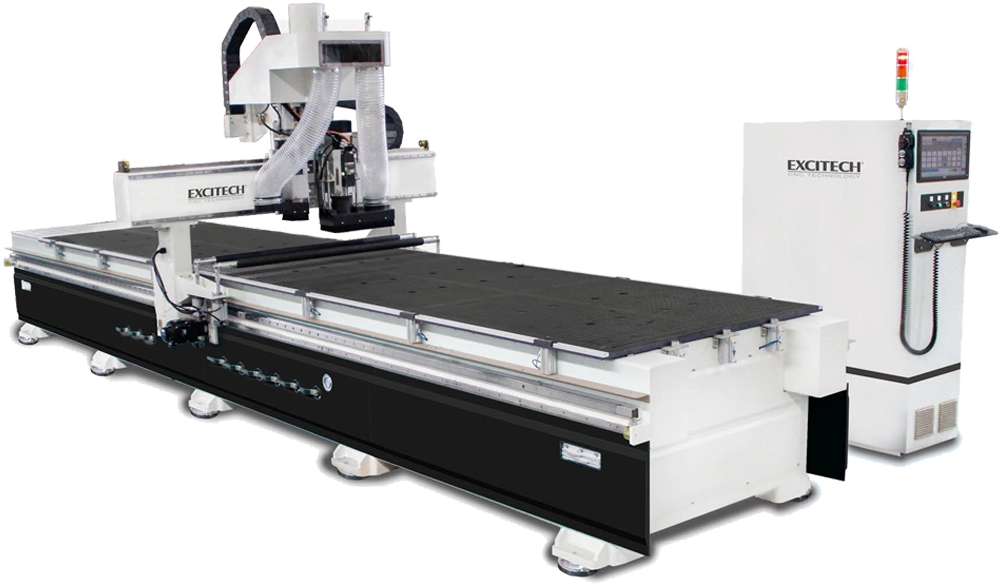

Double Work Zone Model
Features
- Top of its range, this solution has the great advantage of not requiring the constant presence of an operator. The suction cups equipped on the gantry travels to the rear of the machine to pick up the workpiece from the scissor lift, which is then nested and drilled at the flat table. At the completion of the work cycle, the pusher transports the completed workpiece out of the working area allowing simultaneous loading of the next cycle.
- Features world’s top class components. The enclosure over the gantry with LED light strip for display of the machine status prevents flying out of materials and greatly enhances safety.
- Truly versatile nesting, routering, vertical drilling and engraving all in one. It is well-suited for panel furniture, office furniture, kitchen, cabinets production.

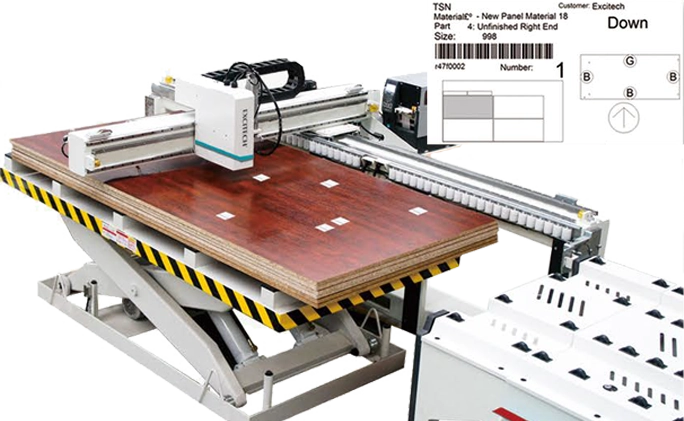

Pre-label the panel with rapid travel axis before nesting and vertical drilling furher eliminates operator intervention during the work process and renders the whole cycle truly push button and go.
HSD Spindle: 9 kW (Higher power available upon request)

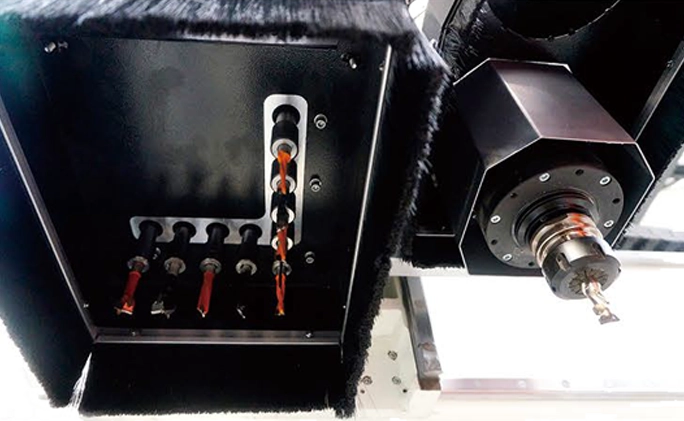

Italian drill bank: 5 + 4 vertical drills

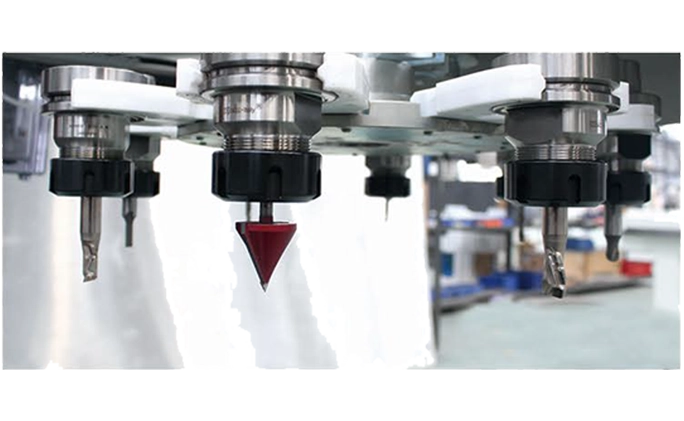

Carousel Tool Changer
8 tools or more upon request. Servo drives for faster and more accurate motion available

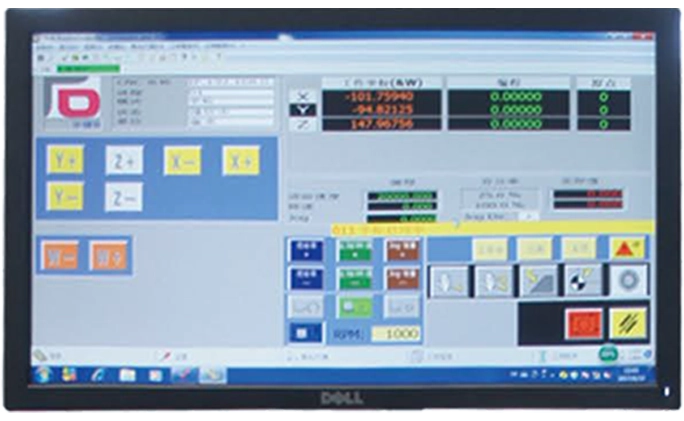

Italian OSAI control
Control unit separate from the main electrical cabinet that promises better mobility and safety.
Nested Based Production Flow

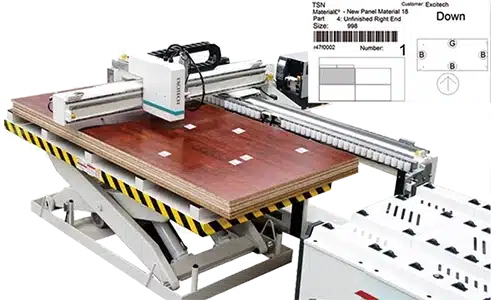

1. Auto Pre-Labeling
2. Automatic Infeed

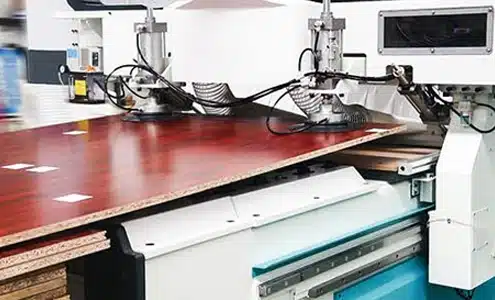

3. Vertical Drilling

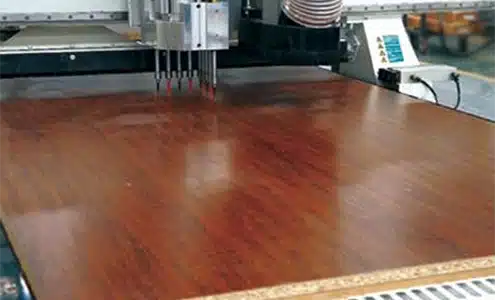

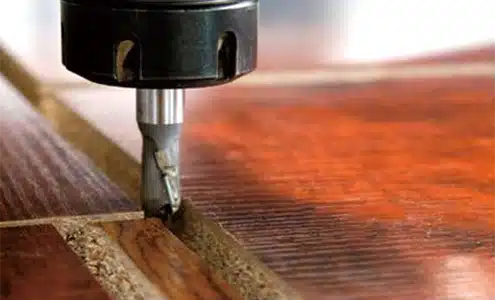

4. Nesting

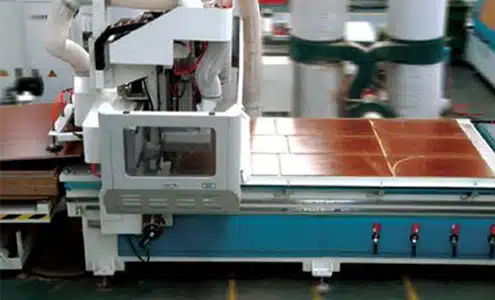

5. Automatic Outfeed

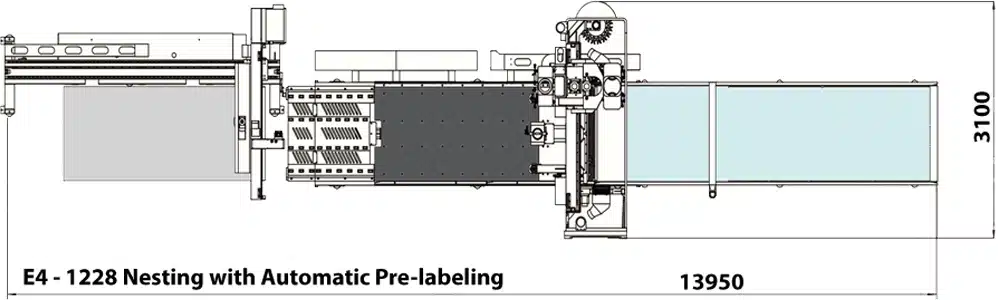

Dimension of Nesting Machine
Specification Nesting Machine
| Model | E4-1224D | E4-1228D | E4-1530D | E4-1537D | E4-2128D | E4-2138D |
|---|---|---|---|---|---|---|
| Traveling size | 2500 x 1260 x 200 mm | 2820 x 1260 x 200 mm | 3140 x 1600 x 200 mm | 3700 x 1600 x 200 mm | 2900 x 2160 x 200 mm | 3860 x 2170 x 200 mm |
| Working size | 2440 x 1220 x 70 mm | 2750 x 1220 x 70 mm | 3074 x 1550 x 70 mm | 3685 x 1550 x 70 mm | 2850 x 2130 x 70 mm | 3800 x 2130 x 70 mm |
| Table size | 2440 x 1220 mm | 2750 x 1220 mm | 3074 x 1550 mm | 3685 x 1550 mm | 2850 x 2130 mm | 3800 x 2130 mm |
| Net weight | 3700 kg | 5500 kg | 6500 kg | 6800 kg | 6000 kg | 7100 kg |
| Loading and unloading speed | 15 m/min | |||||
| Transmission | X/Y rack and pinion drive, Z ball screw drive | |||||
| Table structure | Vacuum table | |||||
| Spindle power | 9 / 12 kW | |||||
| Spindle speed | 2400 r/min | |||||
| Traveling speed | 80 m/min | |||||
| Working speed | 25 m/min | |||||
| Tool magazine | Carousel | |||||
| Tool slots | 8 / 12 | |||||
| Driving system | Yaskawa / Excitech | |||||
| Power | 23.5 kW | |||||
| Voltage | AC380 / 3 PH / 50 Hz | |||||
| Controller | OSAI / Syntec / Excitech | |||||
* All dimension subject to change
