E1 / E2

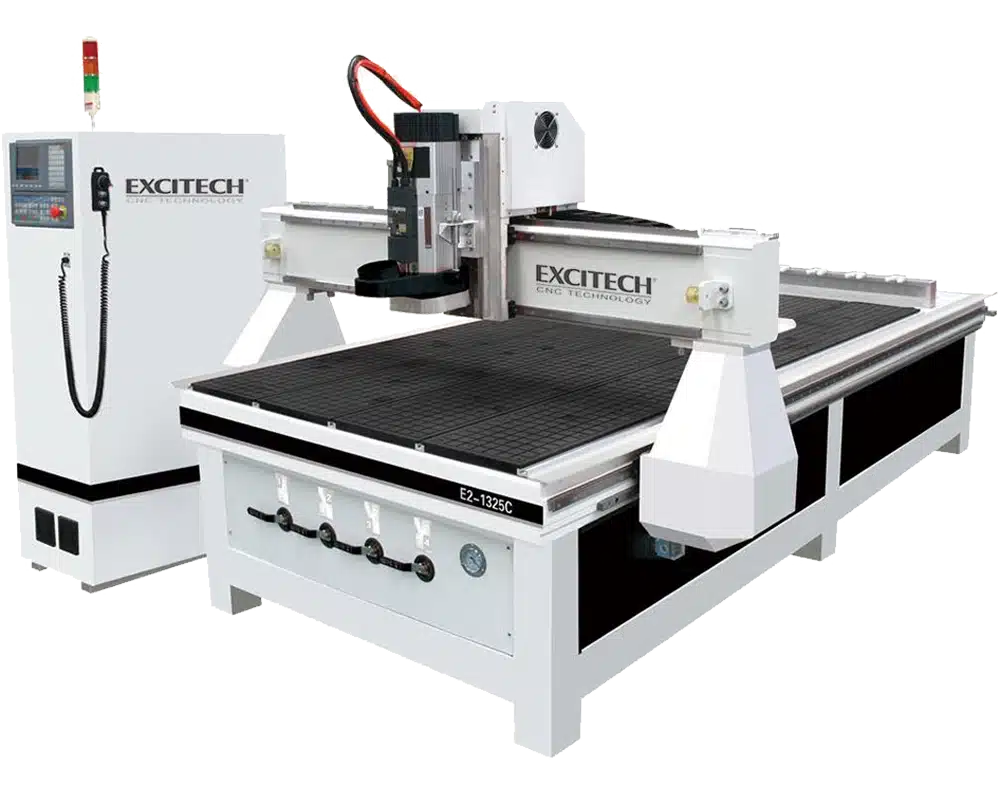

ATC Product
- High performance machine with extraordinary value, but at a very economical price.

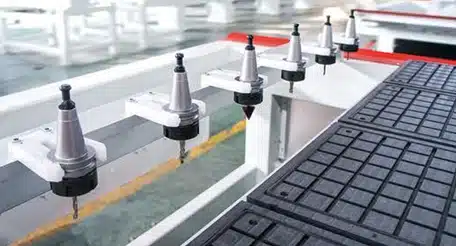

- With linear tool changer, constructed with world class components, consistent high performance.
- Rigid vacuum table with grids and T-slots maximizes the vacuum hold down power and also enables you to clamp the workpiece in place.
- Smart industrial controller enabling this product to accomplish multi layer 3D job, cutting, engraving, milling, all at ease.
E1 / E2

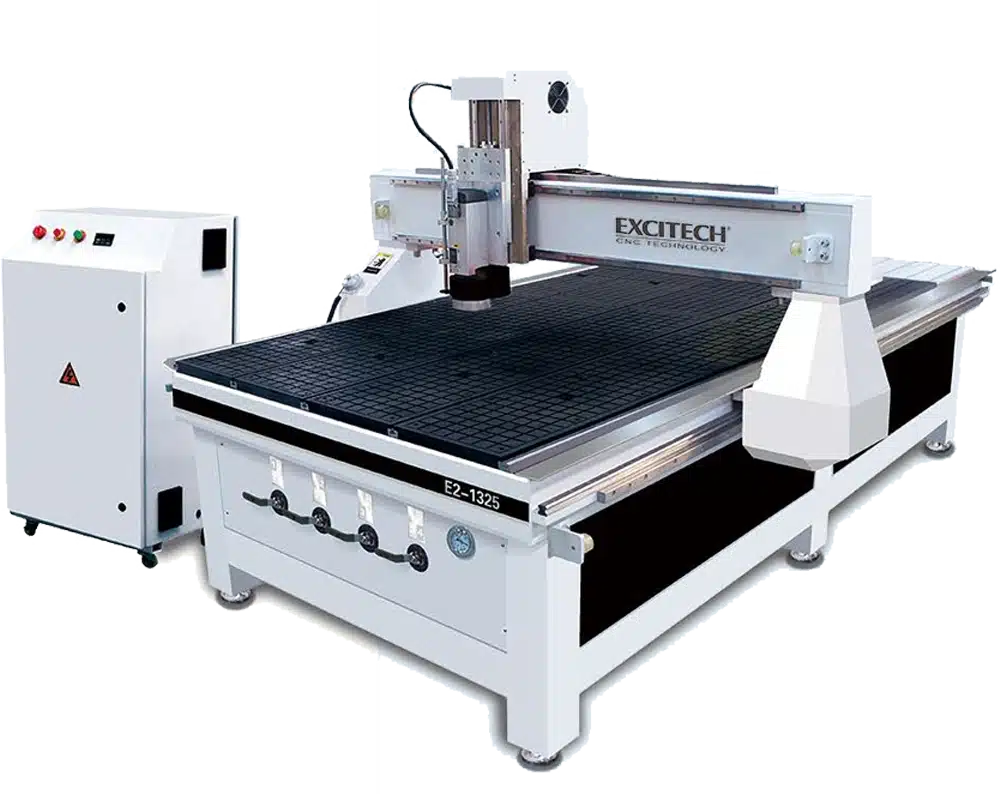

MTC Product
- Your perfect beginner machine: manual tool changing, featuring German helical rack and pinion drive, Japanese maintenance free linear guides, it has excellent performance and price ratio. Ideal for hobby users and businesses with limited budget.
- Rigid vacuum table with grids and T-slots maximizes the vacuum hold down power and also enables you to clamp the workpiece in place.
- Highly efficient machine permitting faster production, cutting speed over 18 m/min. Low vibration and smooth motion ensure higher workpiece quality.
Specification ATC / MTC Product
| Model | E2-1325 | E2-1530 | E2-2030 / 2040 | E2-1325C | E2-1530C | E2-2030C / 2040C |
|---|---|---|---|---|---|---|
| Traveling size | 2500 x 1260 x 200 / 300 mm | 3100 x 1570 x 200 / 300 mm | 3100 / 4020 x 2100 x 200 / 300 mm | 2500 x 1260 x 300 mm | 3100 x 1570 x 300 mm | 3100 x / 4020 x 2100 x 300 mm |
| Working size | 2480 x 1230 x 180 / 280 mm | 3080 x 1550 x 180 / 280 mm | 3080 / 4000 x 2050 x 180 / 280 mm | 2480 x 1230 x 150 mm | 3080 x 1550 x 150 mm | 3080 x / 4000 x 2050 x 150 mm |
| Table size | 2500 x 1230 mm | 3100 x 1560 mm | 3100 / 4020 x 2050 mm | 2500 x 1230 mm | 3100 x 1560 mm | 3100 x / 4020 x 2050 mm |
| Optional working length | - | - | 3000 / 5000 / 600 mm | - | - | 3000 / 5000 / 6000 mm |
| Net weight | 900 kg | 1300 kg | 1700 kg | 1000 kg | 1500 kg | 1900 kg |
| Transmission | X / Y rack and pinion drive, Z ball screw drive | X / Y rack and pinion drive, Z ball screw drive | ||||
| Table structure | Vacuum /PVC | Vacuum | ||||
| Spindle power | 3.0 / 4.5 / 6.0 kW | 9 kW | ||||
| Spindle speed | 18000 r/min | 24000 r/min | ||||
| Traveling speed | 25 m/min | 40 m/min | ||||
| Working speed | 15 m/min | 18 m/min | ||||
| Driving system | Stepper / Yaskawa / Excitech | Syntec / Inovance / Excitech | ||||
| Power | 14 kW | 21.5 kW | ||||
| Controller | Hand helt controller Excitech | Syntec / NC Studio / Excitech | ||||
