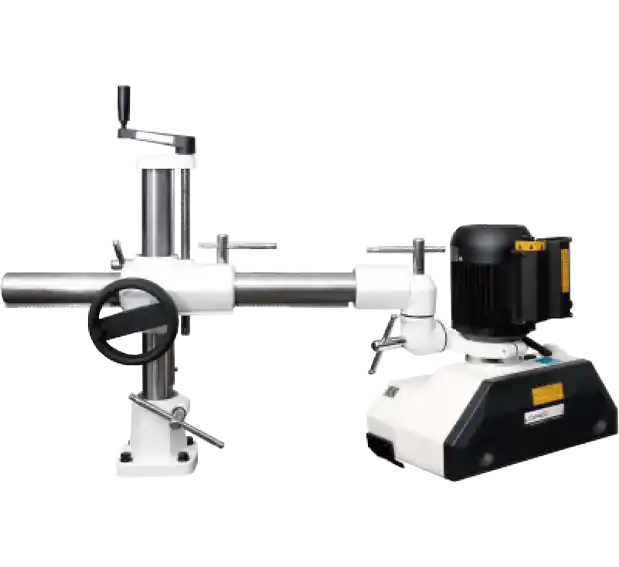

AF34 | AF34L
Stock Feeder
720 mm | 1050 mm Overarm
4 Speeds Feeder

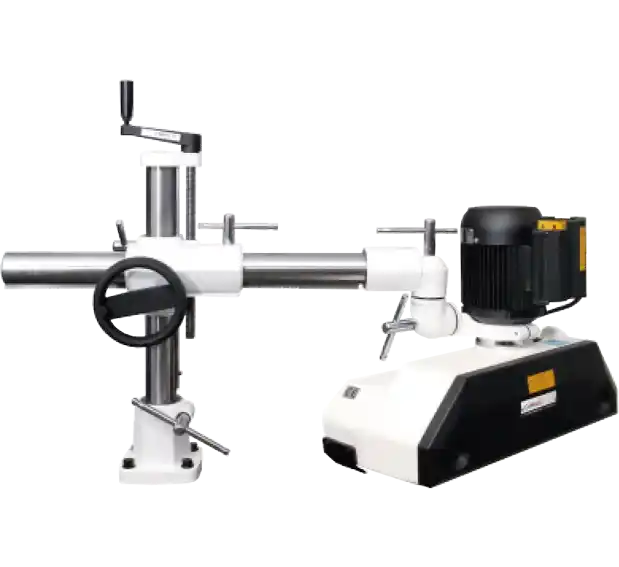

AF44 | AF44L
Stock Feeder
720 mm | 1050 mm Overarm
4 Speeds Feeder
AF38 | AF38L
Stock Feeder
720 mm | 1050 mm Overarm
8 Speeds Feeder

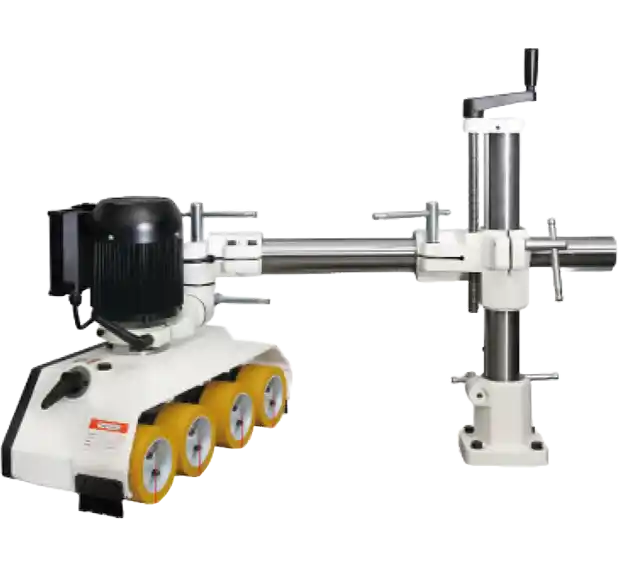

AF48 | AF48L
Stock Feeder
720 mm | 1050 mm Overarm
8 Speeds Feeder
AF34D | AF34DL
Stock Feeder
720 mm | 1050 mm Overarm
Variable Speeds Feeder
DC Servo Motor

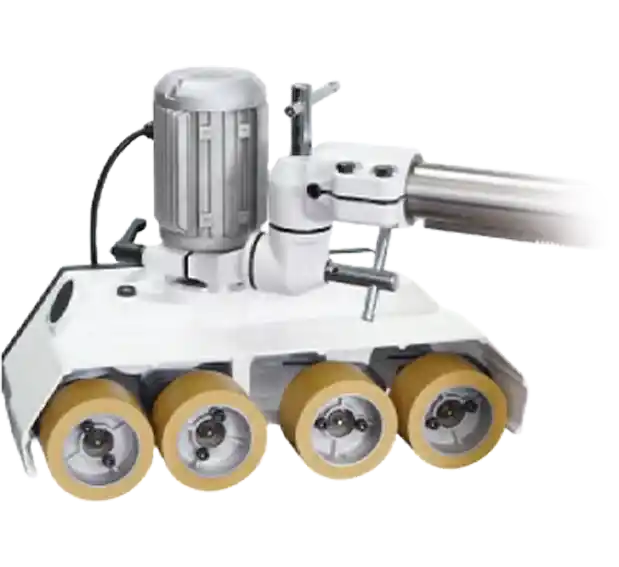

AF44D | AF44DL
Stock Feeder
720 mm | 1050 mm Overarm
Variable Speeds Feeder
DC Servo Motor
Specification Stock Feeder Series
| Model | AF34 / AF34L |
|---|---|
| Horsepower | 750 W (1 HP), 1 or 3 phase |
| Rotation | Forward / reverse |
| Range of speed | 4 / 8 / 10 / 20 m/min |
| Optional speeds | 3 / 6 / 13 / 26 m/min |
| Rollers | 3 Rollers,⌀ 120 x 60 mm |
| Roller suspension | 18 mm |
| Net weight | 27 + 34 kg |
| Gross weight | 29 + 36 kg |
| Carton for body | 560 x 540 x 290 mm |
| Carton for stand | 770 x 320 x 290 mm |
| 20' Container Loading | 185 sets |
| Model | AF44 / AF44L |
|---|---|
| Horsepower | 750 W (1 HP), 1 or 3 phase |
| Rotation | Forward / reverse |
| Range of speed | 4 / 8 / 10 / 20 m/min |
| Optional speeds | 3 / 6 / 13 / 26 m/min |
| Rollers | 4 Rollers,⌀ 120 x 60 mm |
| Roller suspension | 18 mm |
| Net weight | 32 + 34 kg |
| Gross weight | 34 + 36 kg |
| Carton for body | 770 c 560 c 290 mm |
| Carton for stand | 770 x 320 x 290 mm |
| 20' Container Loading | 150 sets |
| Model | AF38 / AF38L |
|---|---|
| Horsepower | 750 W (1 HP), 1 or 3 phase |
| Rotation | Forward / reverse |
| Range of speed | 2 / 4 / 5,/.5 / 7 / 11 / 13 / 16.5 / 33 m/min |
| Optional speeds | 1.5 / 3 / 5 / 7 / 9.5 / 13 / 21 / 41 m/min |
| Rollers | 3 Rollers,⌀ 120 x 60 mm |
| Roller suspension | 18 mm |
| Net weight | 29 + 34 kg |
| Gross weight | 31 + 36 kg |
| Carton for body | 560 x 540 x 290 mm |
| Carton for stand | 770 x 320 x 290 mm |
| 20' Container Loading | 185 sets |
| Model | AF48 / AF48L |
|---|---|
| Horsepower | 750 W (1 HP), 1 or 3 phase |
| Rotation | Forward / reverse |
| Range of speed | 2 / 4 / 5,/.5 / 7 / 11 / 13 / 16.5 / 33 m/min |
| Optional speeds | 1.5 / 3 / 5 / 7 / 9.5 / 13 / 21 / 41 m/min |
| Rollers | 4 Rollers,⌀ 120 x 60 mm |
| Roller suspension | 18 mm |
| Net weight | 34 + 34 kg |
| Gross weight | 36 + 36 kg |
| Carton for body | 770 x 560 x 290 mm |
| Carton for stand | 770 x 320 x 290 mm |
| 20' Container Loading | 150 sets |
| Model | AF34D / AF34DL |
|---|---|
| Horsepower | 750 W (1 HP), 1 or 3 phase |
| Rotation | Forward / reverse |
| Range of speed | 50 Hz : 1.1 - 13 m/min 60 Hz : 0.9 - 11 m/min |
| Rollers | 3 Rollers,⌀ 120 x 60 mm |
| Roller suspension | 18 mm |
| Net weight | 21 + 34 kg |
| Gross weight | 23 + 36 kg |
| Carton for body | 560 x 540 x 290 mm |
| Carton for stand | 770 x 320 x 290 mm |
| 20' Container Loading | 180 sets |
| Model | AF44D / AF44DL |
|---|---|
| Horsepower | 750 W (1 HP), 1 or 3 phase |
| Rotation | Forward / reverse |
| Range of speed | 50 Hz : 1.1 - 13 m/min 60 Hz : 0.9 - 11 m/min |
| Rollers | 4 Rollers,⌀ 120 x 60 mm |
| Roller suspension | 18 mm |
| Net weight | 26 + 34 kg |
| Gross weight | 28 + 36 kg |
| Carton for body | 770 x 560 x 290 mm |
| Carton for stand | 770 x 320 x 290 mm |
| 20' Container Loading | 150 sets |
