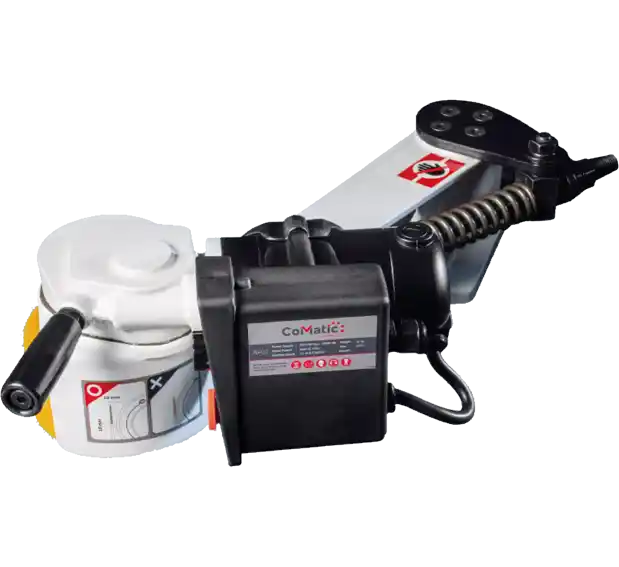

AF02
Resaw Feeder
Ideal for bandsaws from 430 mm to 630 mm

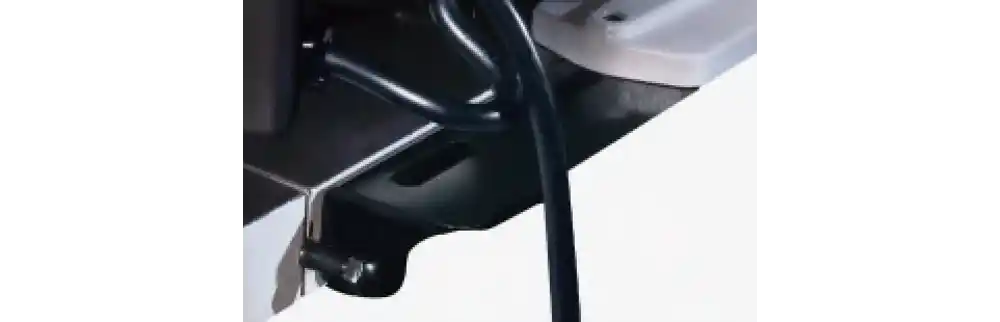

The unique multi hole design accommodates various table sizes

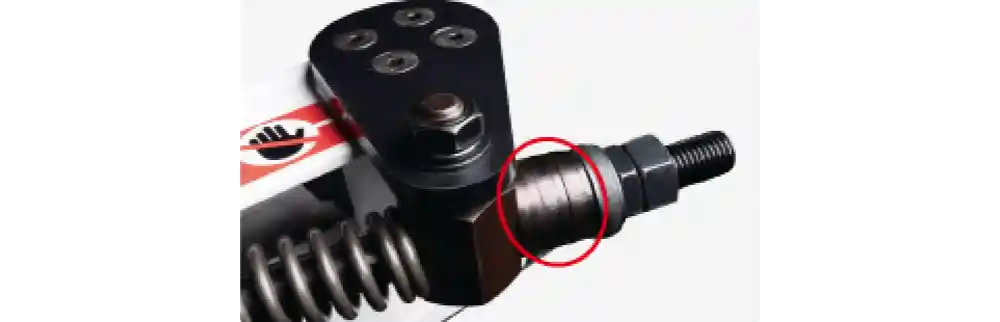

Different stock widths can be quickly adjusted using spacers

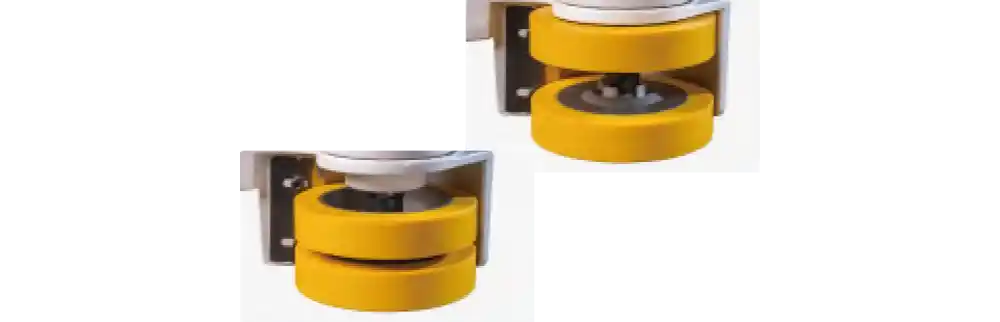

Exchangeable feed rollers
Specification AF02 Resaw Feeder
| Model | AF02 |
|---|---|
| Horsepower | 90 W (⅛ HP), 1 phase |
| Range of speed | 50 Hz : 0.5 - 8 m/min 60 Hz : 0.5 - 8 m/min |
| Rollers | ⌀ 120 x 25 mm x 2 pcs |
| Net weight | 12.5 kg |
| Gross weight | 13.5 kg |
| Carton | 577 x 383 x 273 mm |
| 20' container loading | 390 sets |

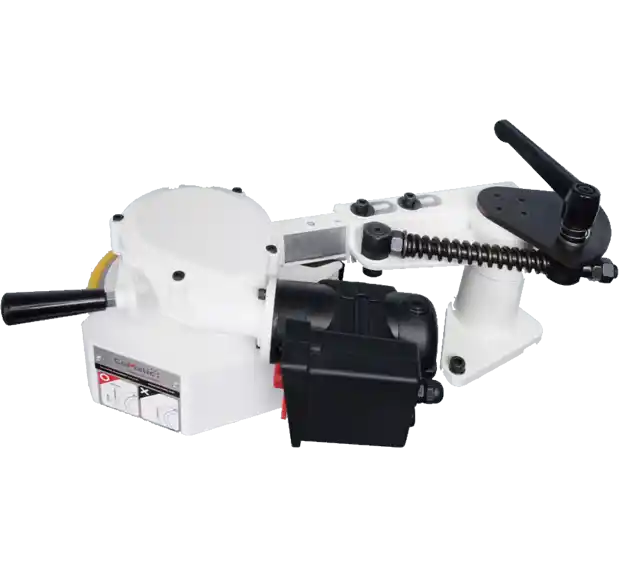

AF06
Resaw Feeder
Ideal for bandsaws from 500 mm to 600 mm

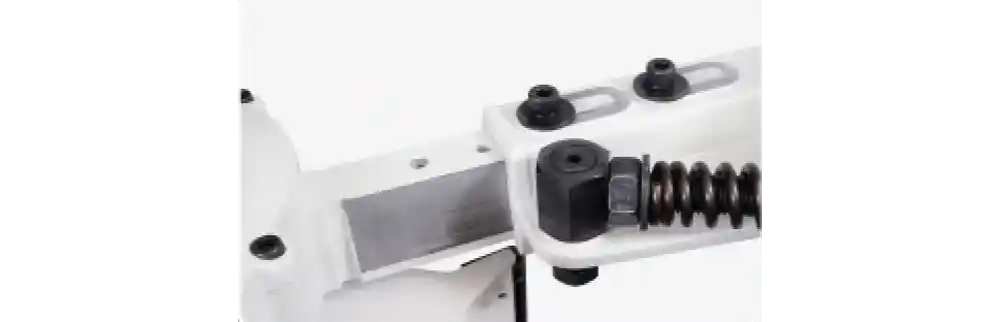

Multi steps adjustable arm design, compatible with majority of bandsaws

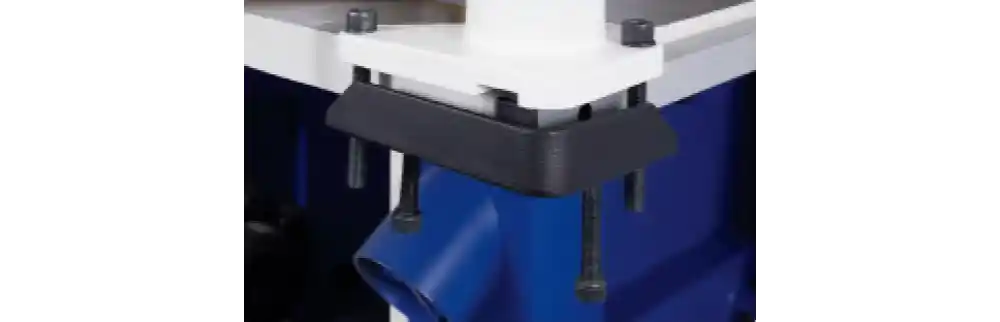

Drill less fast positioning design

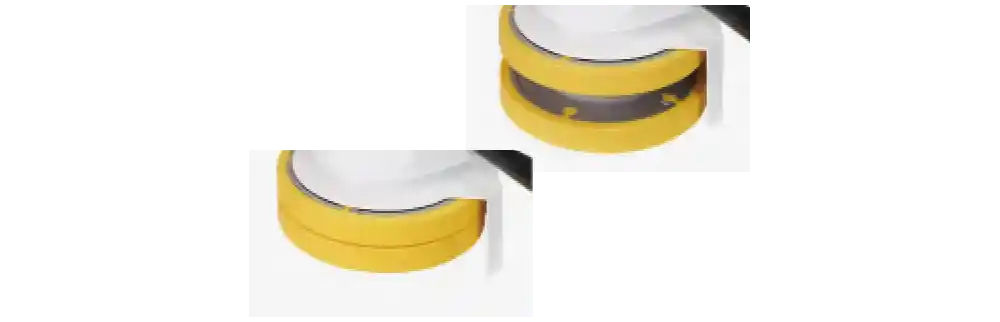

Exchangeable feed rollers
Specification AF06 Resaw Feeder
| Model | AF06 |
|---|---|
| Horsepower | 90 W (⅛ HP), 1 phase |
| Range of speed | 50 Hz : 1.5 - 12 m/min 60 Hz : 1.5 - 12 m/min |
| Rollers | ⌀ 200 x 25 mm x 2 pcs |
| Net weight | 17.5 kg |
| Gross weight | 19.5 kg |
| Carton | 584 x 390 x 273 mm |
| 20' container loading | 380 sets |

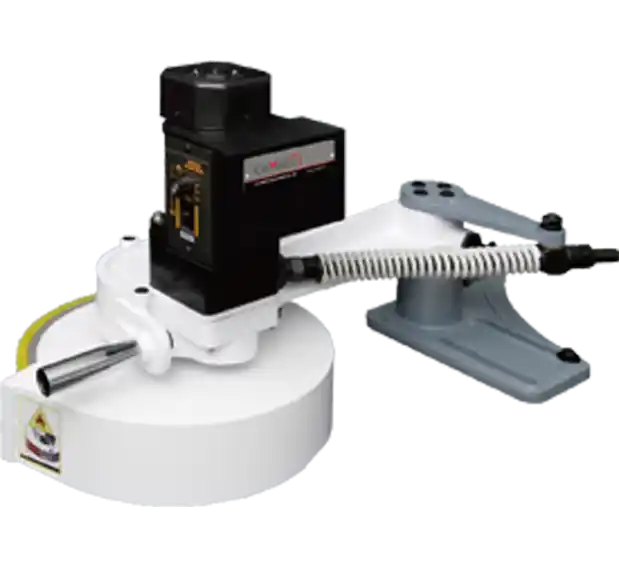

AF10
Resaw Feeder
Giant Feeder
Ideal for bandsaws over 600 mm
Specification AF10 Resaw Feeder
| Model | AF10 |
|---|---|
| Horsepower | 90 W (⅛ HP), 1 phase |
| Range of speed | 50 Hz : 1.5 - 12 m/min 60 Hz : 1.5 - 20 m/min |
| Rollers | ⌀ 300 x 30 mm x 2 pcs |
| Net weight | 23 kg |
| Gross weight | 25 kg |
| Carton | 770 x 462 x 260 mm |
| 20' container loading | 280 sets |

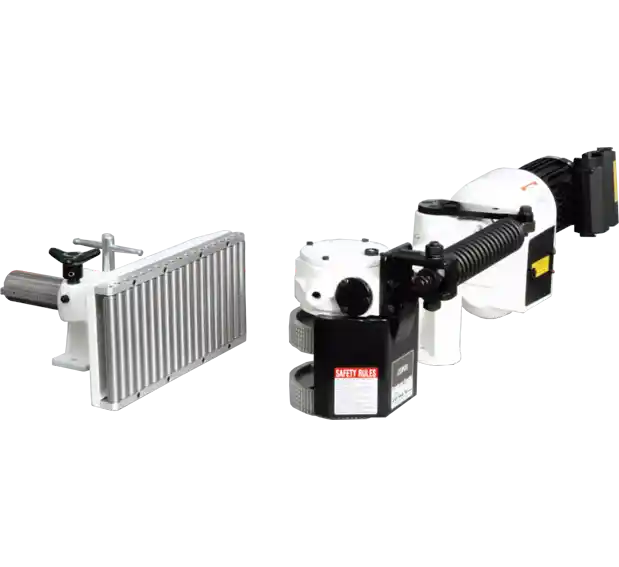

AF19
Resaw Feeder
Ideal for bandsaws over 600 mm
AF19N (AF19 with Pneumatic)

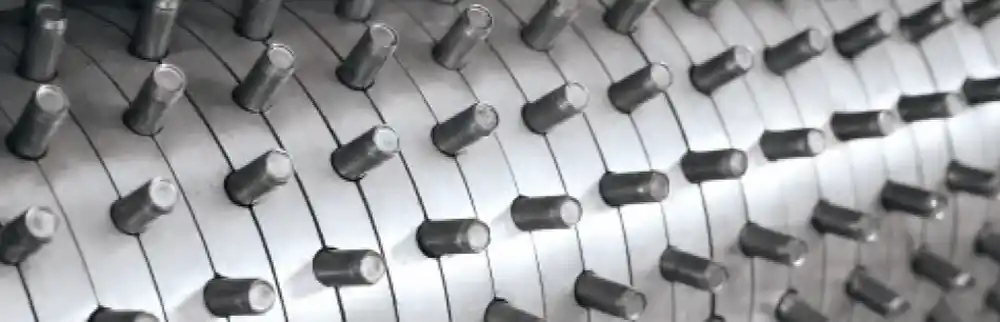

Spiked roller with groove design provides extra grip with approximately 1 mm press mark. The press mark can be easily removed when ran through a thickness planer.

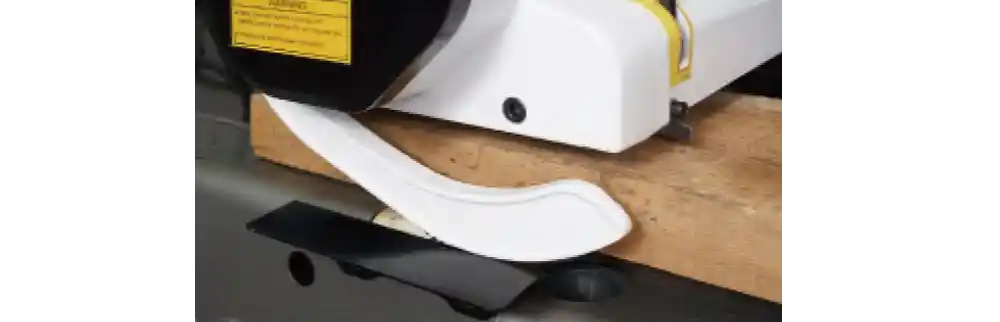

Safety baffle design
Specification AF19 Resaw Feeder
| Model | AF19 |
|---|---|
| Horsepower | 375 W (½ HP), 1 phase |
| Range of speed | 50 Hz : 1 / 2 / 2 / 3.5 / 4 / 6 / 7 / 7.5 / 12 / 15 m/min 60 Hz : 1.5 / 2.5 / 2.5 / 4 / 5 7.5 / 8 / 9 / 15 / 18 m/min |
| Rollers | ⌀ 175 x 40 mm x 2 pcs |
| Net weight | 79 kg |
| Gross weight | 97 kg |
| Carton | 1220 x 480 x 470 mm |
| 20' container loading | 125 sets |
AF012
Joint Mate
Ideal for jointers from 250 mm to 350 mm

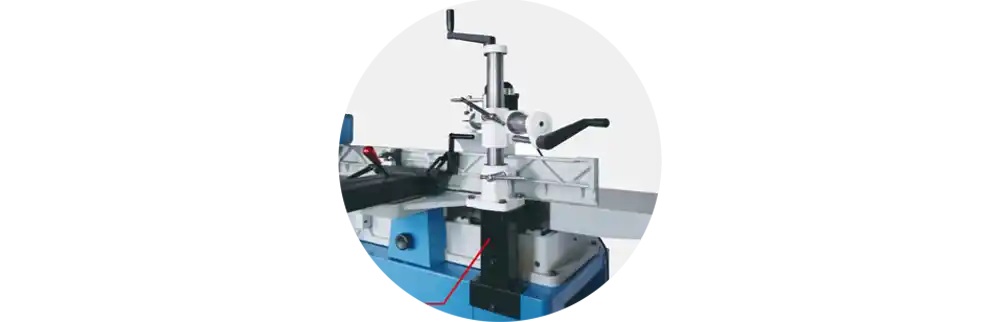

Standard with geetech, oliver and laguna's jointer
Specification AF012 Joint Mate
| Model | AF012 |
|---|---|
| Horsepower | 180 W (¼ HP), 1 phase |
| Range of speed | 50 Hz (3 PH : 4.5 / 6.5 / 9 / 11.5 / 13.5 / 17.5 / 23 / 35 m/min or 1 PH : 4.5 / 6.5 / 11.5 / 17.5 m/min) 60 Hz (3 PH : 5 / 7.5 / 10 / 13 / 15 / 20 / 26 / 40 m/min or 1 PH : 5 / 7.5 / 13 / 20 m/min) |
| Rollers | ⌀ 120 x 267 mm x 1 set |
| Net weight | 24.5 + 23.5 kg |
| Gross weight | 27.5 + 25.5 kg |
| Carton | Body : 630 x 585 x 332 mm Stand : 750 x 260 x 220 mm |
| 20' container loading | 150 sets |
