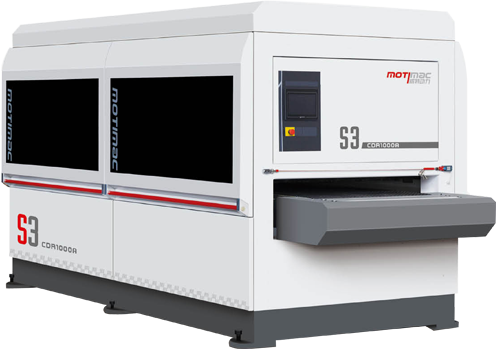

CDR 1000A – Special Curved Surface Sander

CDR 1000A – Special Curved Surface Sander
Special curved surface sanding expert. Replace manual sanding, increase efficiency rapidly.

  • Double vacuum suction equipped for feeding belt, avoiding work piece slipping.
  • Each sanding unit can lift separately or together. They will moving forth and back also.
  • The sanding papers and sisals can be replaced separate. Save more for you.
  • Sanding brush is made of sisals that is anti-static and safe.
Download Catalog Motimac CDR 1000A disini

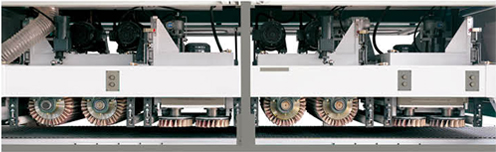

CDR 1000A – Special Curved Surface Sander 1
The advanced model for 2 rows sanding discs-2 rows sanding discs-2 rollers. The compound mode of reasonable sanding grit, and the structure of sanding discs and rollers, the electrostatic eliminations, the blowers and dust collectors can sanding the working pieces effectively and perfectly.
CDR 1000A – Special Curved Surface Sander 2
Sanding units are traversing back and forth (20-40mm adjustable). Equipped with lubrication system, extending the service life or rails.
CDR 1000A – Special Curved Surface Sander 3
Ntegral style high rigidity structure
Spesifikasi CDR 1000A – Special Curved Surface Sander
CDR 1300B
CDR 1000A
Max working width
1300 mm
1000 mm
Min working length
380 mm
580 mm
Working thickness
3-100 mm
6-80 mm
Total motor power
15.61 kw
19.14 kw
Feeding speed
3-18 m/min
4-18 m/min
Working air pressure
0.6 Mpa
0.6 Mpa
Air consumption
6 m ³ /h
0.1 m ³/min
Volume of dust collection device
8262 m ³ /h
8262 m ³ /h
Overall dimensions
2300 x 5300 x 2000 mm
1880 x 4420 x 2092 mm
Net weight
5000 kg
5750 kg
