Double-Sided Wide Belt Sander

Characteristic:

This machine is mainly used for thickness calibration of most kinds of panels
Body with integrated mineral pouring structure, sufficient rigidity and extended service span
Sand roller with a bigger diameter, extended sand belt service span, precise dynamic balance, operation with stability
Feeding adopts frequency control which makes the adjusting range large, and it is suitable for different materials of sanding
Adopts industrial touch switch panel with simplied performance process and clear indications
Adopts PLC centralized control with sensitive reliable performance, it can communicate with next upper computer
Self-diagnosis can display breakdown position rapidly, as a result, overhaul is fast and the breakdown time is reduced

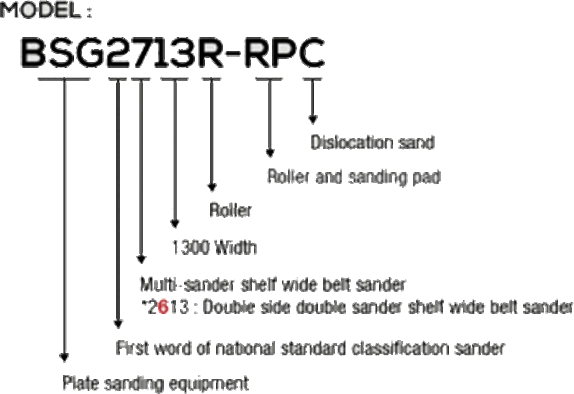

Model	BSG2713R-RPC	BSG2713R-RC	BSG2613RC	BSG2613RPC
Processing width	40 - 1300 mm	40 - 1300 mm	40 - 1300 mm	40 - 1300 mm
Processing thickness	3 - 120 mm	3 - 120 mm	3 - 120 mm	3 - 120 mm
Processing length	≥ 900 mm	≥ 900 mm	≥ 700 mm	≥ 700 mm
Speed of sanding belt	24, 22 m/s	24, 24 m/s	24 m/s	22 m/s
Speed of feeding	6 - 30 m/min	6 - 30 m/min	5 - 40 m/min	5 - 40 m/min
Size of sanding belt	1350 x 2850 kW	1350 x 2850 mm	1350 x 2850 mm	1350 x 2850 mm
Total motor power	275.5 kW	375.5 kW	160.5 kW	120.5 kW
Working air pressure	0.55 Mpa	0.55 Mpa	0.55 Mpa	0.55 Mpa
Consumption of compressed air	0.32 m3/min	0.32 m3/min	0.16 m3/min	0.16 m3/min
Air speeding of dust suction	25 - 30 m/s	25 - 30 m/s	25 - 30 m/s	25 - 30 m/s
Air volume of dust suction	33000 m3/h	33000 m3/h	25000 m3/h	25000 m3/h
Dimension of the machine	3420 x 3520 x 3213 mm	3220 x 3520 x 3213 mm	2330 x 3650 x 3213 mm	2530 x 3650 x 3213 mm
Weight	20000 kg	19000 kg	11500 kg	12000 kg
			*Roller: ⌀320 mm (steel roller) x 2
