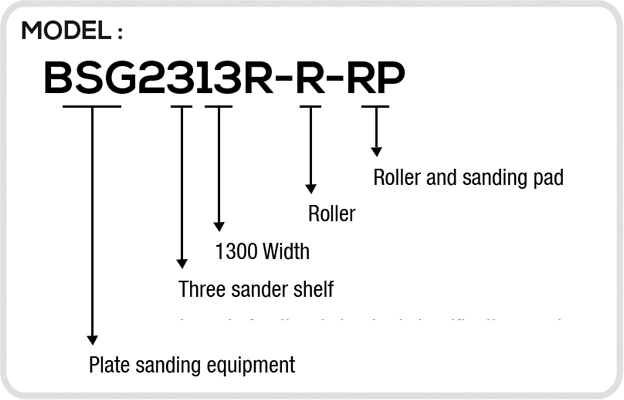

BSG2313R-R-RP
Three Head Wide Belt Sander
Characteristic of BSG-2313
- This wide belt sander is designed for sanding MDF, multi-plywood, solid wood panel, solid wood flooring, multilayer solid wood laminate flooring, three-layer solid wood laminate flooring, bamboo flooring, bamboo-wood laminate flooring, wooden floor, wooden window, artware, plastic composite materials, etc.
- The main structure of machine body is very special, and it called C series.
- The electrical connection box with door designed in front of the machine is very useful for preventing dust. The control panel with press-button, dial plate and digital display makes the sander operation easy.
- It’s reliable performance also helps reduce maintenance cost and guarantee production efficiency
R-R-P
R-RP-P
R-R-RP
R-R-R
Specification Triple Head Wide Belt Sander
| Model | BSG2313R-RP-P | BGS2313R-R-RP | BGS2313R-R-R |
|---|---|---|---|
| Processing width | 40-1300 mm | 40-1300 mm | 40-1300 mm |
| Processing thickness | 2.5 - 80 mm | 2.5 - 80 mm | 2.5 - 80 mm |
| Speed of sanding belt | 22; 18; 14 m/s | 22; 12; 18 m/s | 22; 22; 22 m/s |
| Size of sanding belt | 1330 x 2200 mm | 1330 x 2200 mm | 1330 x 2200 mm |
| Speed of feeding | 6-30 m/min | 6-30 m/min | 6-30 m/min |
| Roller diameter | Front 240 mm steel roller Middle 210 mm steel roller, air cushion Back air cushion | Front 240 mm steel roller Middle 240 mm steel roller Back 210 mm Glue roller, air cushion | Front 240 mm steel roller Middle 240 mm steel roller Back 240 mm steel roller |
| Main motor power | 37 / 22 / 15 kW | 37 / 30 / 22 kW | 45 / 30 / 22 kW |
| Feeding motor power | 4 kW | 4 kW | 4 kW |
| Lifting motor power | 0.55 kW | 0.55 kW | 0.55 kW |
| Total motor power | 78.55 kW | 93.55 kW | 101.55 kW |
| Working air pressure | 0.55 Mpa | 0.55 Mpa | 0.55 kW |
| Consumption of compressed air | 0.16 m³/min | 0.16 m³/min | 0.16 m³/min |
| Vacuuming wind speed | 25-30 m/s | 25-30 m/s | 25-30 m/s |
| Dimensions of the machine | 2500 x 2350 x 1950 mm | 2500 x 2350 x 1950 mm | 2500 x 2350 x 1950 mm |
| Weight | 4400 kg | 4500 kg | 4500 kg |
