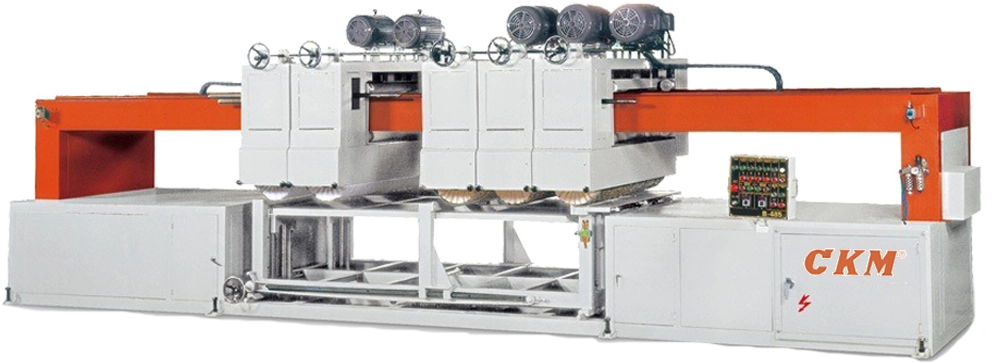

Auto Polishing Machine Model Series: B-364, B-484, B-505

MODEL SERIES: B-364, B-484, B-505

Download Catalog CKM Auto Polishing Machine
  • ROUND-TRIP MOVEMENT POLISHING UNITS Competing with the conveyor flow polishing machine, our terrific round-trip polishing units can let the workpiece stay at the same place until getting the perfect result no matter how hard the paint is to save the time and manpower. Depending on the different hard of the paint, you can set up the number of the trip on the digital number counter before operating. The polishing unit will stop automatically after getting to the number.
  • INDIVIDUAL SPINDLE UP/DOWN SYSTEM This convenient system allows you to adjust different height of polishing textiles to the same bottom line to raise the usage of polishing textile, and to lower the textile costs
  • 3 SPEEDS MOVEMENT OF POLISHING UNITS are available for meeting the needs of the different hard of paint. The harder the paint is the more slowly the units move to achieve the perfect result.
  • SAFE CLAMPS are actuated by pneumatic controls for easy and safe operations. The polishing unit wont’t go, if the workpiece isn’t clamped securety to protect the operator and workpiece
  • WORKTABLE UP/DOWN is actuated by 1 HP power to save the manpower and operate easily and to lower textile costs.
  • UNIQUE DESIGN TWO UNITS POLISHING SPINDLES The unit with rough textile is for polishing off the sanding trace, the other unit with soft textile is to perform the perfect finishing. By means of this unique design, you can save the wax and get the perfect performance at the same time.
  • WORKTABLE HORIZONTAL OSCILLATION To achieve really even, smooth perfect performance.
Auto Polishing Machine 1
Auto Polishing Machine 2

LENGTH OF WORKING TABLE CAN BE SET UP easily at desired area within the original length to meet the different length of workpiece

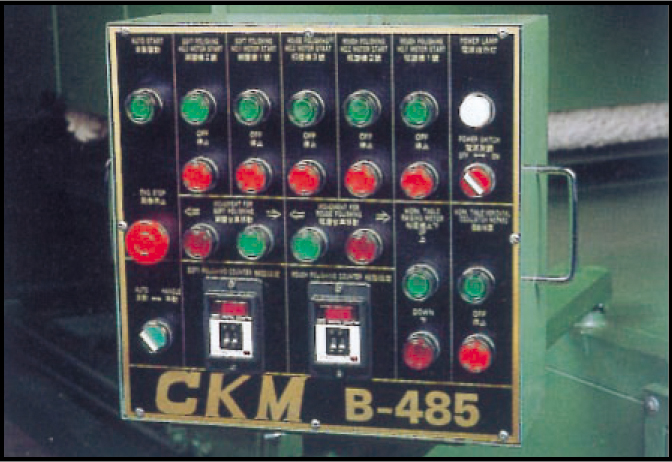

Auto Polishing Machine 3
Grouped magnetic control set is portable and convenient to offer the remarkable ease of operation.

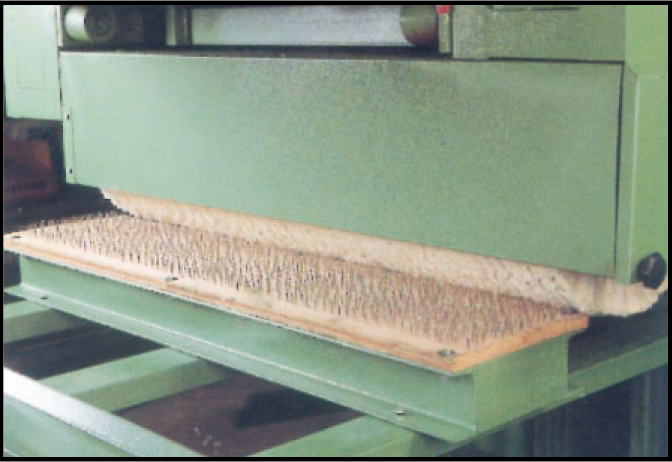

Auto Polishing Machine 4

SPECIAL NAIL BED for brushing the polishing textile to be ready for polishing

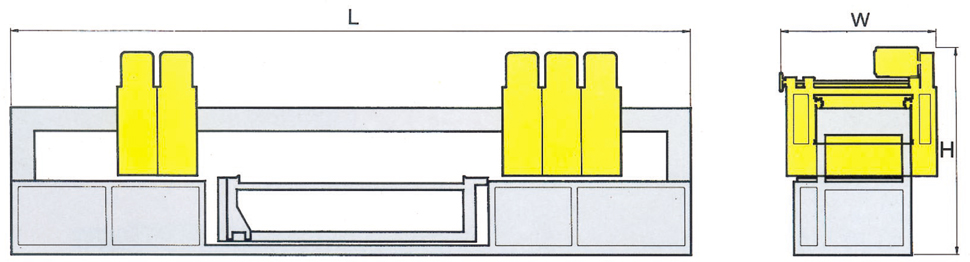

Dimensional Drawing of Auto Polishing Machine

Dimensional Drawing
Spesifikasi Auto Polishing Machine
MODEL
B-364
B-484
B-485
B-505
Capacity
Max. width
3'(914 mm)
4'(1219 mm)
4'(1219 mm)
5'(1524 mm)
Max. length
6'(1828 mm)
8'(2438 mm)
8'(2438 mm)
10'(3048 mm)
Number of spindle
Rough Unit
2
2
3
3
Soft unit
2
2
2
2
Diameter
2.44"(62 mm)
2.44"(62 mm)
2.44"(62 mm)
2.44"(62 mm)
Compressed air required
60 lb/inch2 (4kg/cm2)
60 lb/inch2 (4kg/cm2)
60 lb/inch2 (4kg/cm2)
60 lb/inch2 (4kg/cm2)
Power required
Rough unit
10 HP x 2
10 HP x 2
15 HP x 3
15 HP x 3
Soft unit
10 HP x 2
10 HP x 2
10 HP x 2
10 HP x 2
Movement for polishing unit
2 HP x 2
2 HP x 2
2 HP x 2
2 HP x 2
Worktable raising
1 HP
1 HP
1 HP
1 HP
Worktable horizontal oscilation
1 HP
1 HP
1 HP
1 HP
Overal dimension
(LxWxH)
6200 x 1700 x 2275 mm
6830 x 2000 x 2275 mm
7750 x 2000 x 2275 mm
8388 x 2000 x 2275 mm
Net weigth
4000 kgs
4500 kgs
5200 kgs
5500 kgs

*The above data are not binding to details as improvements are incorporated from time to time.­­

Standard equipment:
8mm wrench 1pc, 12 x  14 spanner, nail bed, lock tools.

Optional Equipment:
Rough polishing textile, soft polishing textile, wax, wool sheet, graphite cloth.
