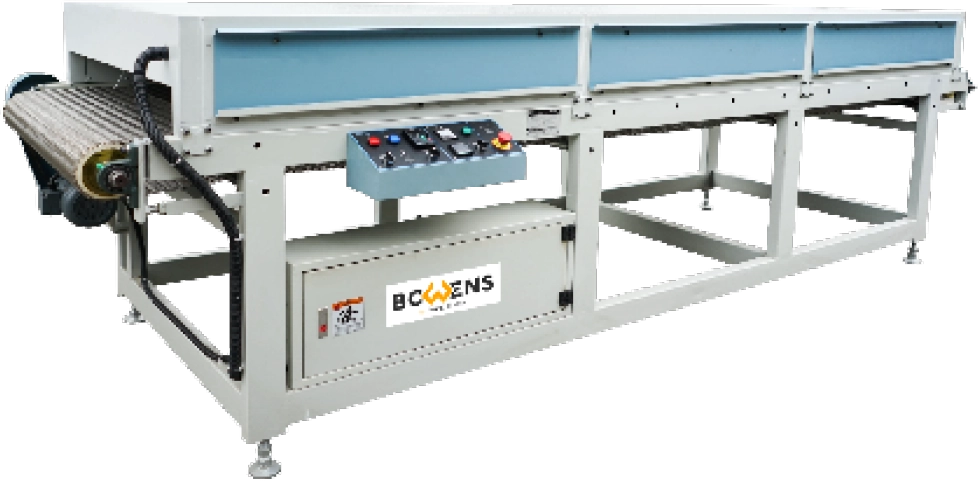

6M Heating and Leveling Machine

This machine is used for leveling and defoaming the coating to make the surface coating film more even.
Using far infrared heating principle, accelerate the evaporation and reflection of diluent or water in coating, shorten the time of coating waiting for drying, single stage temperature control, can be set for drying process temperature

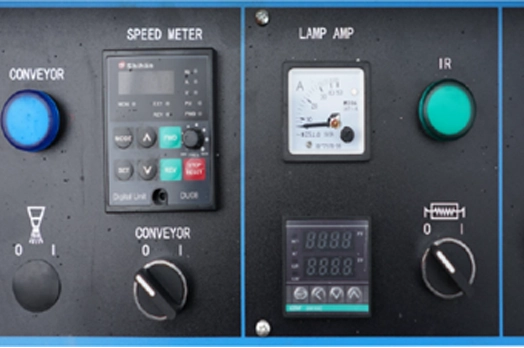

Operational Panel

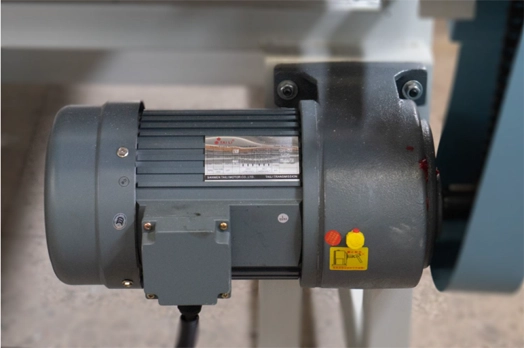

Transmission Motor

The 50 mm thick insulation layer can keep the temperature from losing and reduce the power loss
The frame is made of 100 x 50 mm high strength square pipe steel, and the conveying is made of stainless steel mesh. High temperature resistant belt or aluminium pipe can be selected for conveying. Use abundant and skillful designated gear reduction motor. Wheel deceleration motor, use a flexible designated frequency converter to adjust speed
The temperature controller can effectively control the starting and closing time of heater to ensure the temperature of tunnel can meet the requirements of drying
IR far infrared ceramic lamp heating, independent temperature control system, can accurately control the required temperature. The oven side is easy to disassemble for convenient maintenance. Temperature control can be adjusted from 0° to the highest 100°

Model	FC-600#	FC-750#	FC-900#	FC-1000#	FC-1300#
Effective working width	600 mm	750 mm	900 mm	1000 mm	1300 mm
Effective working thickness	3-80 mm	3-80 mm	3-80 mm	3-80 mm	3-80 mm
Minimum machining length	300 mm	300 mm	300 mm	300 mm	300 mm
Feeding speed	5-20 m/min	5-20 m/min	5-20 m/min	5-20 m/min	5-20 m/min
Power transmission unit	1.5 kW Inverter	1.5 kW Inverter	1.5 kW Inverter	1.5 kW Inverter	1.5 kW frequency inverter
Model of conveyor (stainless steel mesh)	Ø136 x 620 mm	Ø136 x 770 mm	Ø136 x 920 mm	Ø136 x 1020 mm	Ø136 x 1320 mm
Tube power and length	0.85 kW x L630	1 kW x L780	1.2 kW x L930	1.2 kW x L1030	1.5 kW x (L) 1330
Total power	18.5 kW	21.5 kW	25.5 kW	25.5 kW	31.5 kW
Overall dimensions	6000 x 1050 x 1100 mm	6000 x 1200 x 1100 mm	6000 x 1350 x 1100 mm	6000 x 1450 x 1100 mm	6000 x 1750 x 1100 mm
