Basic Model Identification
Outstanding Feature
- Working safely, in compliance with the latest safety regulation enforced
- Hardened, ground and electronically balanced spindle in special steel guarantees the absolute absence of vibrations.
- Spindle interchangeable can collets available for use of router bits.
- Cast iron table of great solidity with ground surface
- Sliding table in cast iron glides on six adjustable ball bearings for smooth table travel for the long term.
- heavy cast iron, extruded aluminium fence assembly is fully adjustable.
SS-512M / MS / T / TS
Illustration shows SS-512TS
Illustration shows SS-512MS (Sliding table-w/ linear guideway) – on request
Handwheel with indicator for spindle tilting angle
Sliding Table w/ Linear Guide-Way for SS-512MS which makes the sliding table move easier & smoother
1. Stroke of sliding table : L-940mm
2. stroke of sliding table : S-450mm
Spesifikasi SS-512M / MS / T / TS
Spindle Moulders | SS-512M / MS / T / TS |
|
---|---|---|
Dimension of working table (mm) | 1000 x 800 |
|
Working table height (mm) | 900 |
|
Spindle vertical stroke (mm) | M/MS : 160 & T/TS : 180 |
|
Max. tool diameter: | below table tap (mm) | 210 |
above table top (mm) | 335 |
|
Spindle speed (RPM) | 3000 / 4000 / 6000 / 8000 / 10000 |
|
1500 / 3500 / 5500 / 7500 / 9000 (opt.) |
||
Rotation | forward and reverse |
|
Motor power (HP) | 5.5 / 7.5 |
|
Sliding table dimension (MS/TS) (HP) | 1000 x 260 |
|
Working stroke of the slide (MS/TS) (HP) | 940 |
|
Spindle tilting (T/TS) (degree) | -5 - +45 |
|
Overall size (mm) | 1230 x 1000 x 1340 |
|
Packing size (mm) | 1150 x 940 x 1040 |
|
Net weight (kg) | 470 |
|
Gross weight (kg) | 530 |
SS-512T / TL / TS / TSL backward tilt

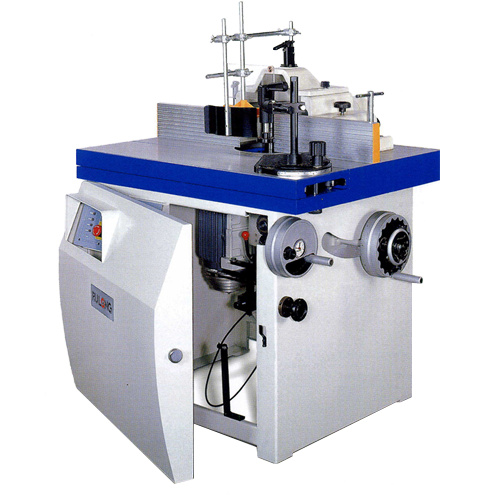

Illustration shows SS-512TS backward tilt
Large door allows easy access to the inside of machine frame for possible adjustment and maintenance
The advantages of backward tilting spindle:
- Safer working. Machining from under the workpiece makes for optimum protection.
- Possibility of machining any sizes of workpiece.
- Full use of pressure guards or power feeder without regard to the obstruction.
- Minimizing the load on spindle bearing to ensure the durability and precise moulding profile
- perfect dust collection. Wood chips are directed into exhaust outlet

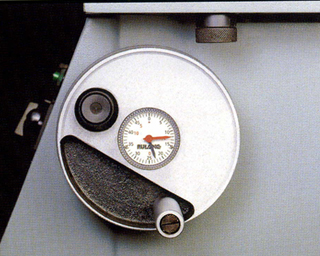

HANDWHEEL WITH INDICATOR FOR SPINDLE TILTING ANGLE
ALUMINUM FENCE WITH ADJ. SUPPORTING BAR (on request)
Spesifikasi SS-512T / TL / TS / TSL backward tilt
Spindle Moulders | SS-512T / TS backward tilt | SS-512TL / TSL backward tilt |
|
---|---|---|---|
Dimension of working table (mm) | 1000 x 800 | 1300 x 960 |
|
Dimension of extension table (mm) | 2500 x 800 | 2500 x 960 |
|
Working table height (mm) | 900 | 900 |
|
Spindle vertical stroke (mm) | 160 | 180 |
|
Max. tool diameter: | below table tap (mm) | 210 | 310 |
above table top (mm) | 335 | 360 |
|
Spindle speed (RPM) | 3000 / 4000 / 6000 / 8000 / 10000 |
||
1500 / 3500 / 5500 / 7500 / 9000 (opt.) |
|||
Rotation | forward and reverse |
||
Motor power (HP) | 5.5 / 7.5 | 5.5 / 7.5 |
|
Max. extension table support (opt. For T,TL) | 450 | 450 |
|
Sliding table dimension (TS/TSL) (HP) | 1000 x 260 | 1300 x 285 |
|
Working stroke of the slide (TS/TSL) (HP) | 940 | 1230 |
|
Spindle tilting (degree) | -45 to +10 |
||
2 position tenoning carriage TC-1 (opt. For T,TL) | 900 x 300 |
||
Dimension of working table (mm) | |||
Working stroke | |||
Overall size (mm) | 1230 x 1000 x 1340 | 1300 x 1060 x 1320 |
|
Packing size (mm) | 1055 x 1210 x 1165 | 1455 x 1160 x 1170 |
|
Packing size with extension table (T,TL)(mm) | 2744 x 1200 x 1150 | 2744 x 1200 x 1150 |
|
Net weight (kg) | 480 | 650 |
|
Gross weight (kg) | 550 | 750 |

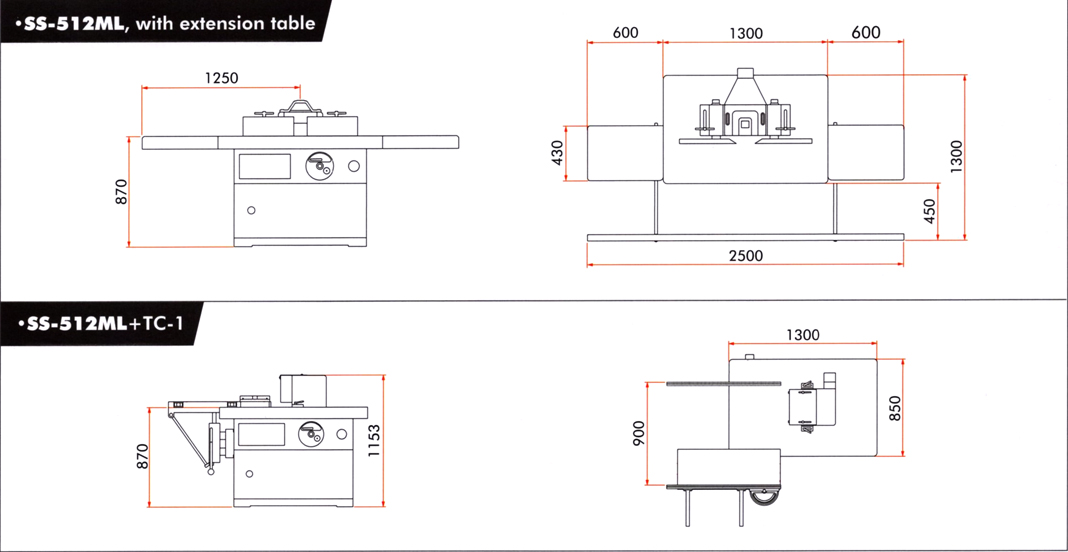

SS-512ML / MSL / TL / TSL

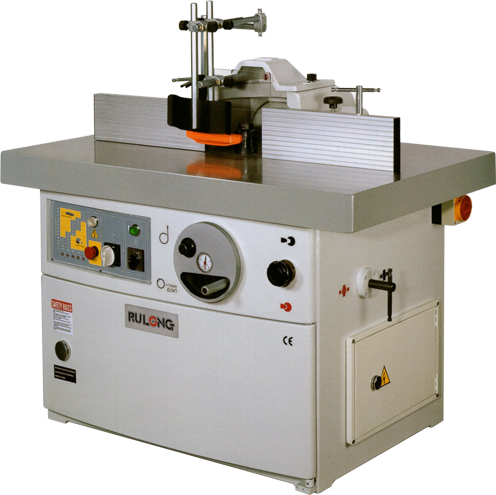

Illustration shows SS-512ML

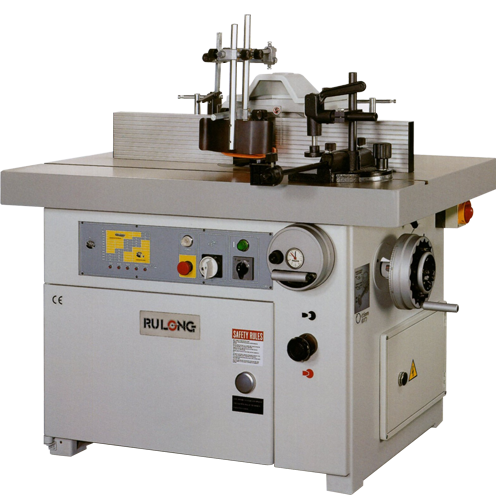

Illustration shows SS-512TL
Spesifikasi SS-512ML / MSL / TL / TSL
Spindle Moulders | SS-512ML / MSL / TL / TSL |
|
---|---|---|
Dimension of working table (mm) | 1300 X 850 |
|
Dimension of extension table (mm) | 2500 x 850 |
|
Working table height (mm) | 870 |
|
Spindle vertical stroke (mm) | 170 |
|
Max. tool diameter: | below table tap (mm) | 210 |
above table top (mm) | 335 |
|
Spindle speed (RPM) | 3000 / 4000 / 6000 / 8000 / 10000 |
|
1500 / 3500 / 5500 / 7500 / 9000 (opt.) |
||
Rotation | forward and reverse |
|
Motor power (HP) | 5.5 / 7.5 |
|
Max. extension table support (opt. For ML,TL) | 450 |
|
Sliding table dimension (MSL/TSL) (HP) | 1300 x 285 |
|
Working stroke of the slide (TL/TSL) (HP) | 1230 |
|
Spindle tilting (degree) | -5 to +45 |
|
2 position tenoning carriage TC-1 (opt. For ML,TL) | 900 x 300 |
|
Dimension of working table (mm) | ||
Working stroke | 900 |
|
Overall size (ML) (mm) | 1300 x 900 x 1320 |
|
Packing size (ML) (mm) | 1450 x 980 x 1070 |
|
Net weight (ML) (kg) | 530 |
|
Gross weight (ML) (kg) | 620 |
