Vertical Band Resaw
MODEL: TF-700M • TF-800M • TF-900M
Manual Series
Features and Construction
- Bakelite saw guide ensures high wear-resistance
- Upper and lower wheels are manufactured from cast iron, dynamically balanced for extremely smooth running performance.
- Bronze piece is provided for wheel cleaning.
Single Feed Roller
| MODEL | | | |
|---|---|---|---|
| Maximum thickness of cut | | | |
| Distance from fence to blade | | | |
| Distance from feed roller to blade | | | |
| Table height from floor | | | |
| Wheel diameter | | | |
| Wheel width | | | |
| Width of blade | | | |
| Length of blade | | | |
| Feed speed | | | |
| Wheel drive motor | | | |
| Net/Gross weight | | | |
| Packing dimensions | | | |
MODEL : • TF-700 • TF-800 • TF-900 • TF-700D • TF-800D • TF-900D
Hydraulic Series
Features and Construction:
- Feed roller is driven by hydraulic power (Variable speed)
- Feed roller is driven by hydraulic system, making the machine ideal for cutting various wood materials.
- Feed roller movement is actuated by air/hydraulic combination cylinder.
- Feed roller can be quickly changed to fully automatic or semi-automatic mode. This feature provides added convenience for cutting various sizes of wood.
- Powered elevation of upper wheel permits convenient blade replacement. A handwheel is provided for micrometric adjustment.
Single Feed Roller
| MODEL | | | |
|---|---|---|---|
| Maximum thickness of cut | | | |
| Distance from fence to blade | | | |
| Distance from feed roller to blade | | | |
| Table height from floor | | | |
| Wheel diameter | | | |
| Wheel width | | | |
| Width of blade | | | |
| Length of blade | | | |
| Feed speed | | | |
| Wheel drive motor | | | |
| Hydraulic pump motor | | | |
| Net/Gross weight | | | |
| Packing dimensions | | | |

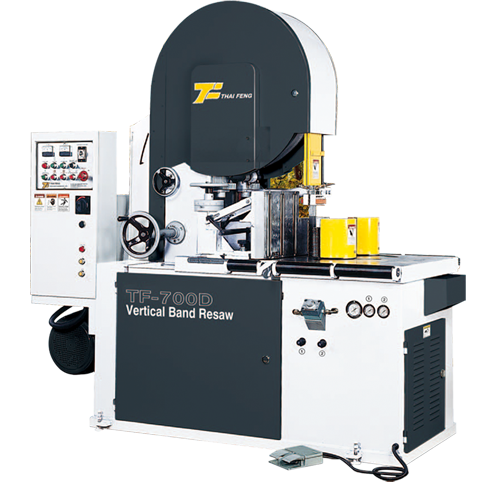

Two Feed Rollers
| MODEL | | | |
|---|---|---|---|
| Minimum thickness of cut | | | |
| Distance from fence to blade | | | |
| Distance from feed roller to blade | | | |
| Table height from floor | | | |
| Wheel diameter | | | |
| Wheel width | | | |
| Width of blade | | | |
| Length of blade | | | |
| Feed speed | | | |
| Wheel drive motor | | | |
| Hydraulic pump motor | | | |
| Net/Gross weight | | | |
| Packing dimensions | | | |
Optional Equipment:
Frequency inverter. It provides various cutting speed to suit all types of wood.
Digital position control for fence setting
All models meeting CE, UL, and CSA safety regulations are available
Machine Features:
- Powered feed roller combined with automatic clamping and unclamping of workpiece for operational convenience.
- Feed speed is variable.
- Rollers on both infeed and outfeed end table gives convenient resawing operation.
- Easy to install, which requires no further construction job.
- The heavy duty saw wheel is dynamically balanced for smooth running.
- Saw wheels run on precision bearing.
- Fence setting is fast and convenient to make.
- The entire fence assembly is ruggedly constructed, featuring high rigidity and durability.
- Blade tension can be accurately read from the rule gauge.
Automatic lubricator provides lubrication and cooling for the sawblade. It also reduces considerable noise level
Cutting Applications:
Optional Feed Roller:
Angular Cutting
Bark Cutting
45⁰ angular cutting
Products Examples:
