*Machine picture shown is reference only
V5
High End Edge Bander Machine
Maglev horizontal end cutting
Siemens systems
New mechanism
Heavy duty lifting
Integrated feeding base
Integrated steel guide rail
Steel press beam
Super heavy duty integrated machine frame
Standard Process

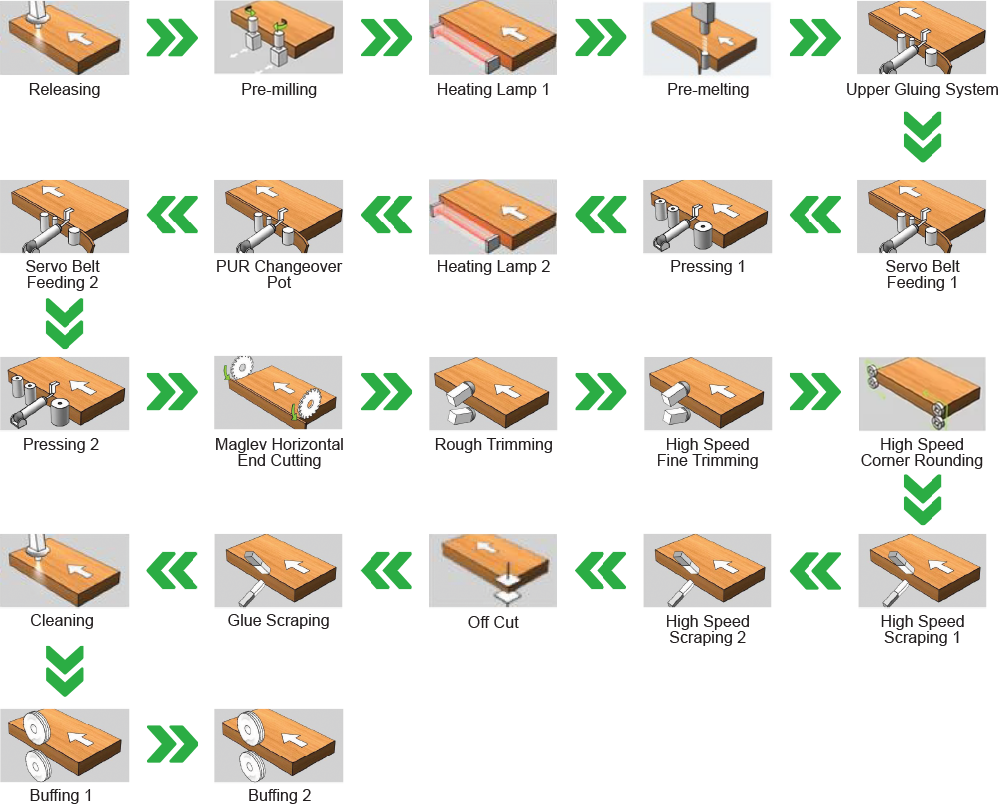

Standard Process of V5
- Releasing
- Pre-milling
- Heating Lamp 1
- Pre-melting
- Upper Gluing System
- Servo Belt Feeding 1
- Pressing 1
- Heating Lamp 2
- PUR Changeover Pot
- Servo Belt 2
- Pressing 2
- Maglev Horizontal End Cutting
- Rough Trimming
- High Speed Fine Trimming
- High SPeed Corner Rounding
- High Speed Scraping 1
- High SPeed Scraping 2
- Off Cut
- Glue Scraping
- Cleaning
- Buffing 1
- Buffing 2
Configurtion Instructions (Optional)

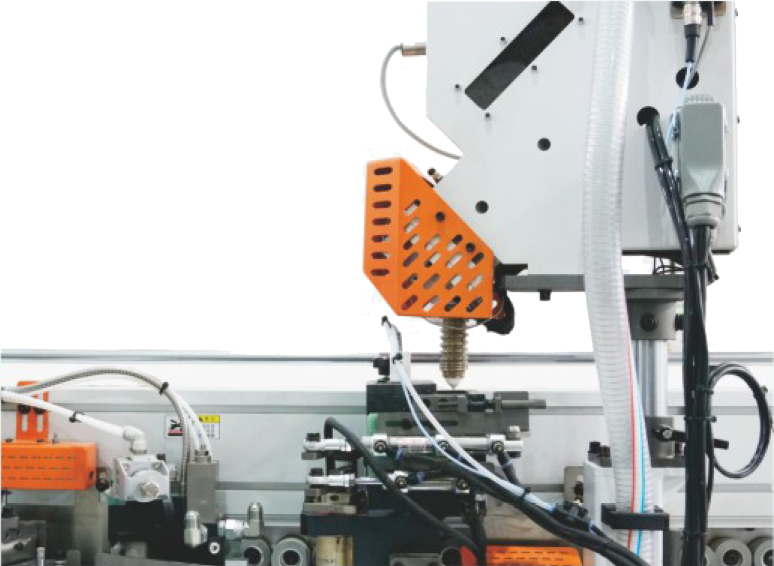

Pre-melting + Upper Gluing System (PKQ)

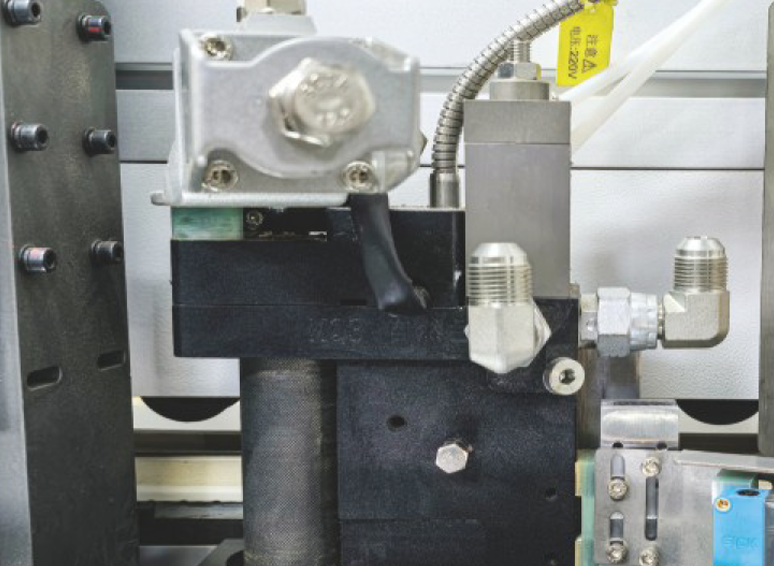

PUR Changeover Pot (B)

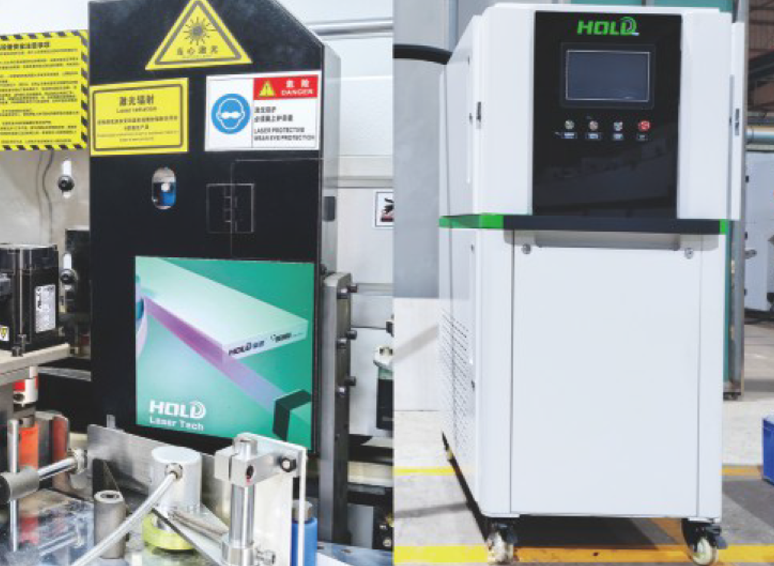

Laser Edge Banding Upgrade Solution

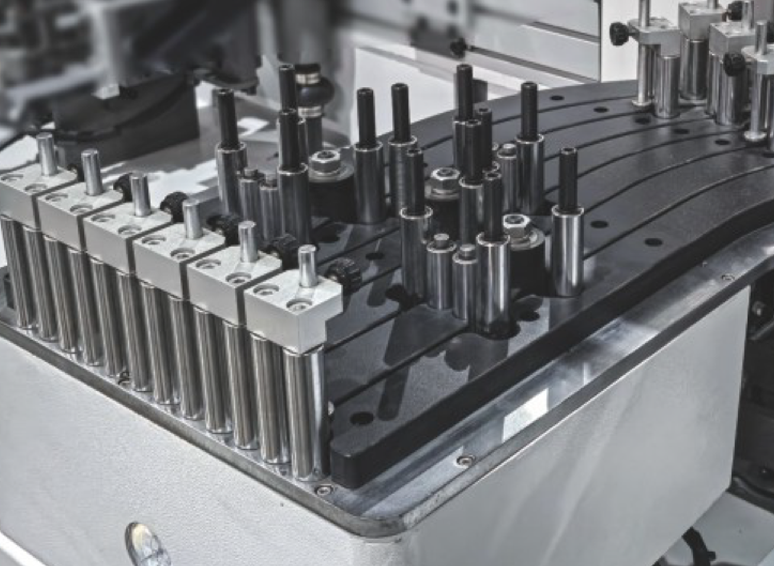

Multi Slot Servo Edge Feeder (A)

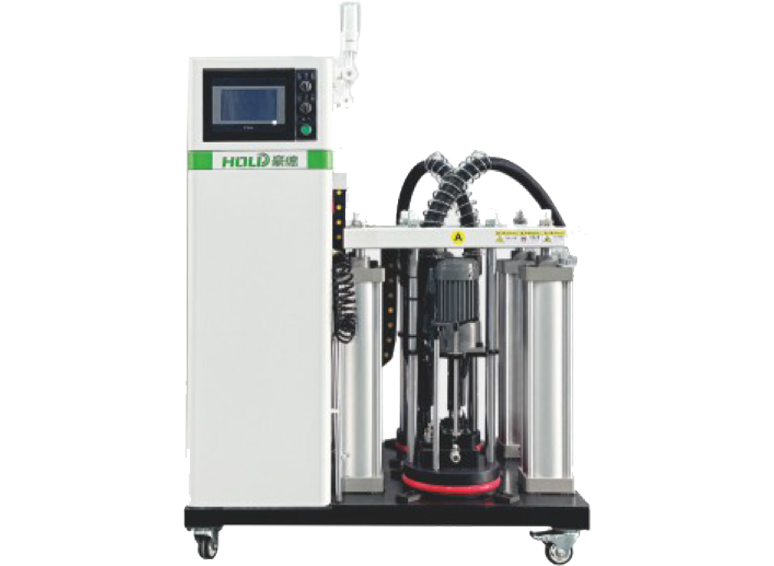

I Shape PUR Melter (Y)
Cross PUR Melter (Y)

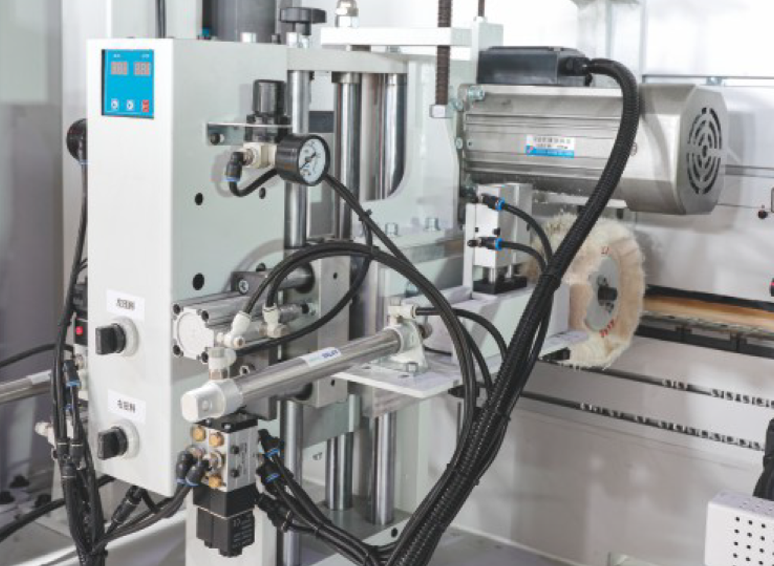

Waxing
Sanding (M)

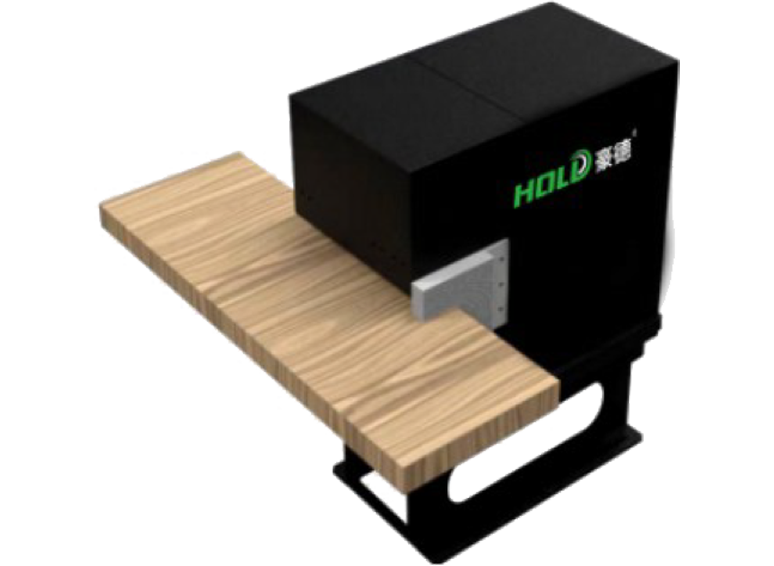

Visual Inspection System
Specification of V5 High End Edge Bander Machine
| Model | V5 |
|---|---|
| Lifting | CNC lifting |
| Total power | 36.5 kW |
| Overall size | 13200 x 1100 x 2000 mm |
| Feed speed | 20 - 23 - 26 - 30 m/min |
| Tape thickness | 0.4 - 3 mm |
| Panel thickness | 10 - 60 mm |
| Panel length | ≥ 120 mm |
| Panel width | ≥ 60 mm |
| Working air pressure | 0.6 mpa |
| Min. panel size | 120 x 60 mm |
