uPower – High Efficient Moulder
- Feed System
- Powered Infeed Roller
- Centralized Lubrication Points
- Convenient Spindle Adjustment
- Side Pressure Wheels for 2nd Spindle
- Pneumatically Pressured Side Pressure Rolls Opposite 2nd Rear Side Head Spindle

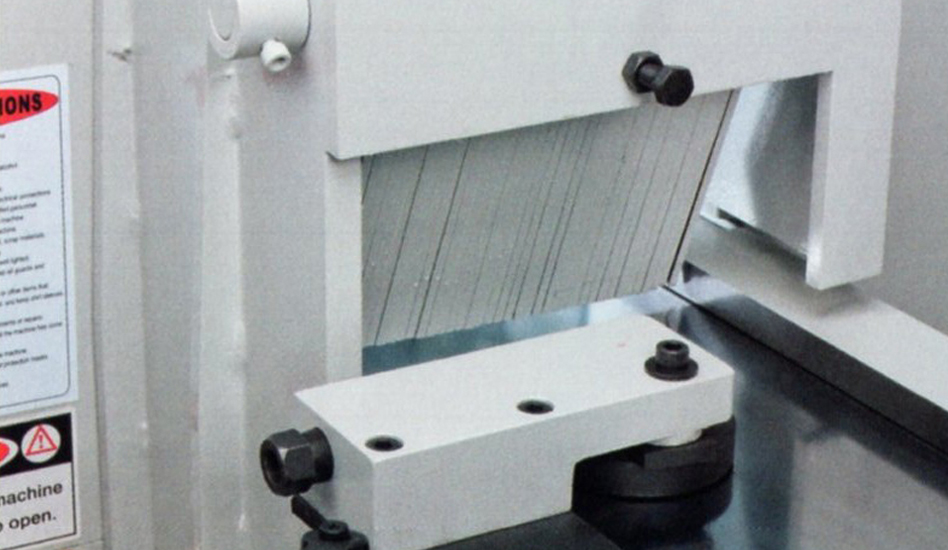

Located at the infeed end of the 4-side moulder, the anti-kickback fingers effectively prevent any wood kickback when feeding workpiece into the machine.

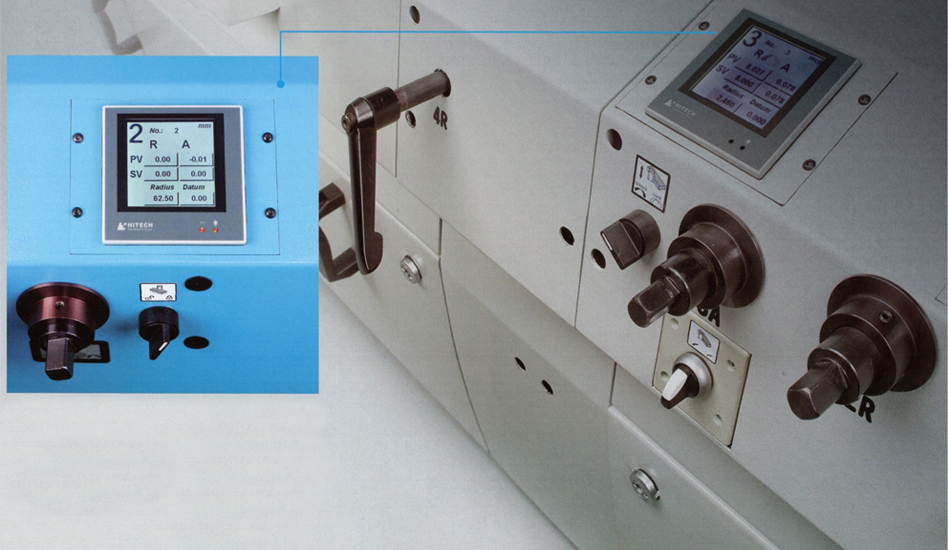

The desires adjustment value for each spindle can be conveniently preset and displayed on the LED digital readout. With these digital readouts, you get more convenient adjustments and higher accuracy.

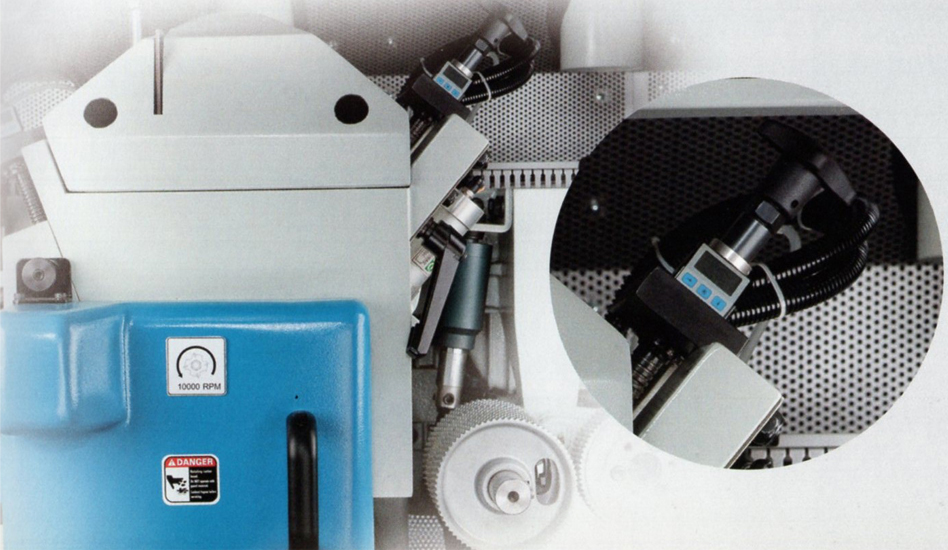

Both chip breaker shoes and pressure shoes are equipped with LED digital readouts, allowing for accurate and convenient adjustment to be made on pressure shoes.

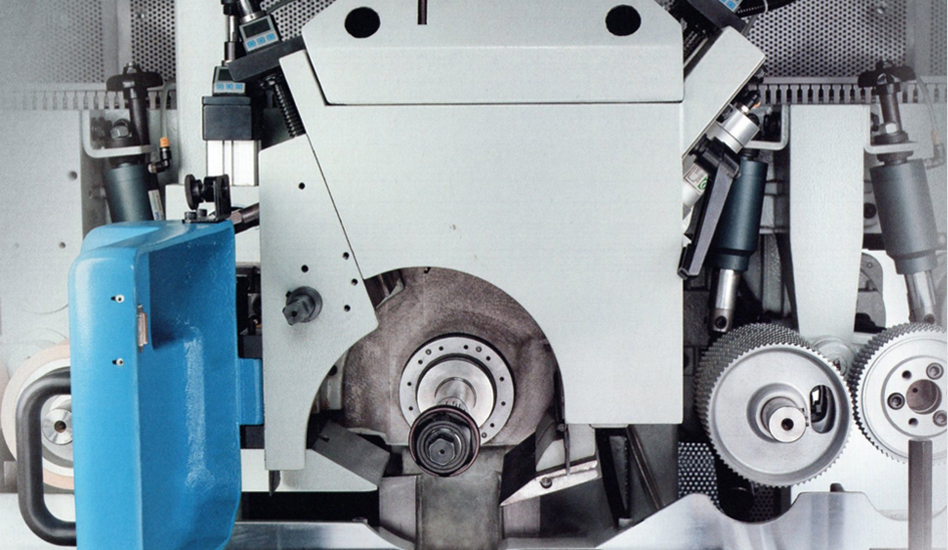

The specially designed tilting chip breaker shoes and pressure shoes are positioned close to the cutterhead, providing stable pressure on the wood when cutting. This outstanding design feature offers increased stability of the wooden workpiece, and produces a superior surface finish.

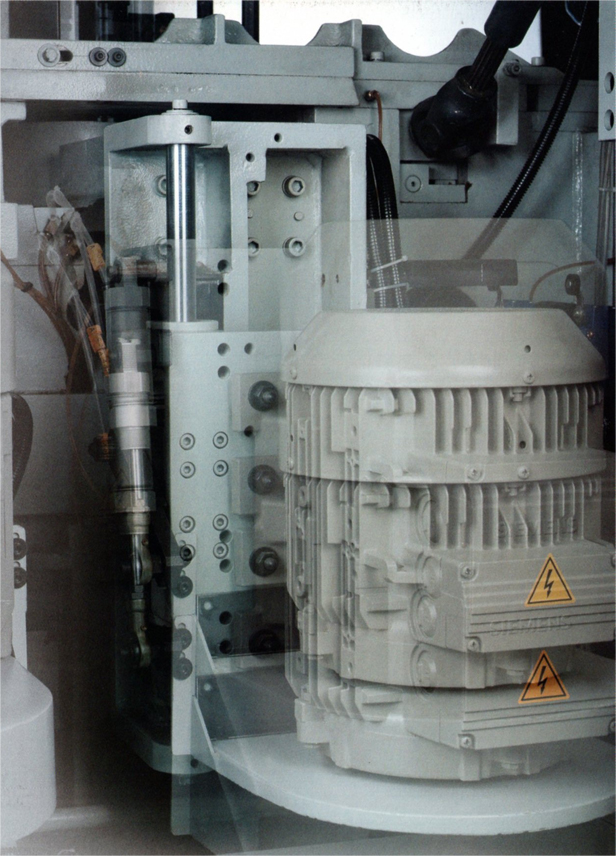

- The vertical spindle and motor assembly are adjusted synchronously for added convenience.
- Extra large vertical spindle adjustment (axial direction) reaches up to 100mm.

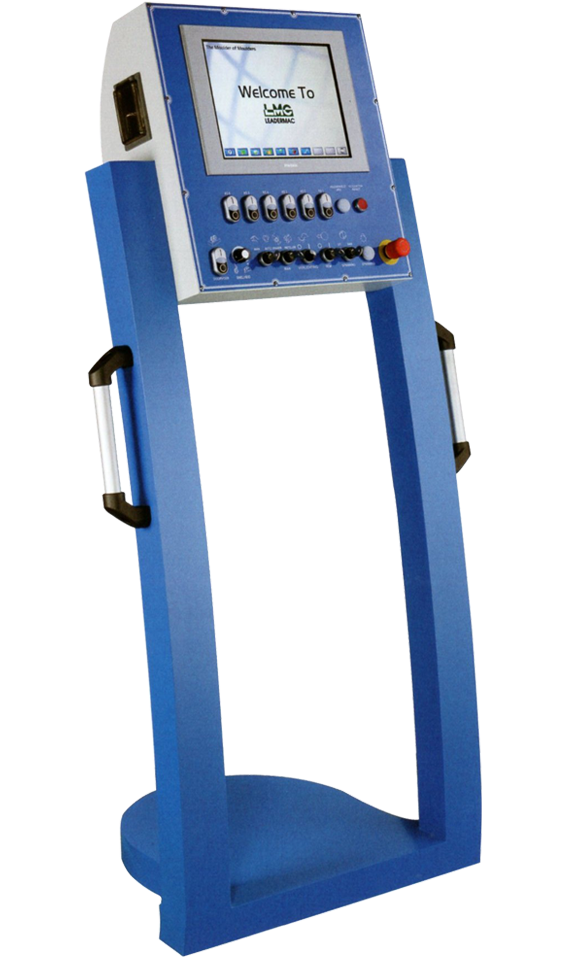

Touch screen control (optional)
- Automated Machine Quick Setup
- Easy & powerful functionality
- history & library of information
- Pattern / profile memory of 500 or 1000 patterns
- All axes outfitted with ball screws & rotary encoder position feedback for best set control, hance better cut quality
- setworks on any axis as desired
- Download from the grinding room measuring stand to PC to upload smartset control available.
The width and thickness setting can be easily adjusted using the programmable controller. The desired values for width and thickness can be conveniently pre-set and are displayed on an LED readout. The feed speed is VFD inverter controlled with LED readout.
- Feed Speeds of up to 36 mpm (120fpm) are standard (higher-optional)
- Std. programmable REC auto. Setworks controllers provide quick & convenient setup for near side head(s) as well as other axis are optional.
- Adjustment of each spindle can be easily performed using the front of the machine adjustment setup and displayed by LED digital readout.
- The full heavy gauge steel sound insulated safety enclosure serves as a chip guard and helps reduce noise, and has strobe free lighting.
- Each spindle is driven by an individual motor for powerful milling and easy control.
- Pneumatic pressure of the feed rollers can be easily set to provide an outstanding feeding effect – 3 sections – each with individual adjustment – ie. Infeed, midfeed &outfeed top rolls. Pressure controls & pressure gauges mounted on outside of the enclosure post.
- Table surfaces, guides, chip breakers & pressure plates are hard-chrome plated for maximum wear resistance.
- All manually adjusted turning parts are housed in dry bearings for oil-free lubrication.
- Automatic lubricator is provided to supply oil to the table sections for running parts.
- Extra heavy one-piece, cast iron or steel weldment machine frame is especially heat treated for maximum stability and rigidiy by standard configuration.
- Digital readouts for the chip breaker shoes of top spindle(s).
- Split sectional chip breaker ass’y in front of top spindle(s).
- The powered outfeed rolls provide stable and smooth workpiece outfeed even for especially thin or smooth materials. The rolls remain perfectly parallel even after long-term use.
Spesifikasi uPower series
| STANDARD EQUIPMENT | | |
|---|---|---|

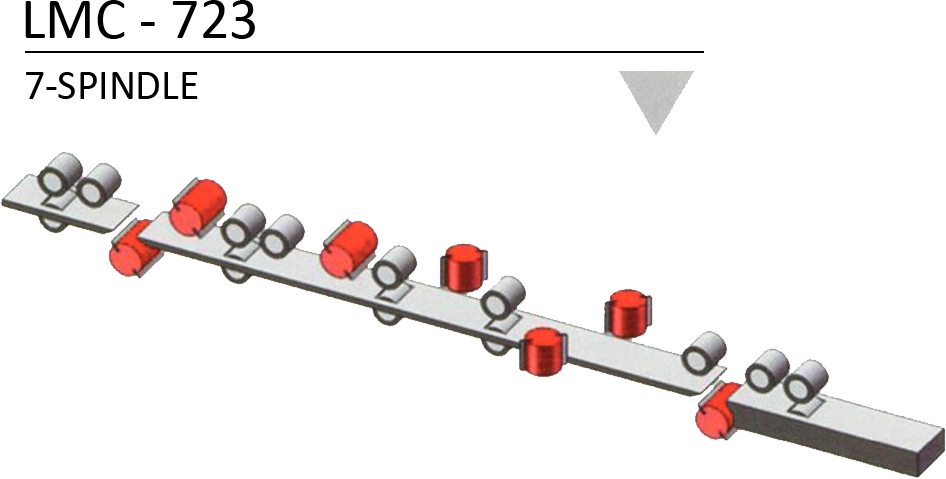

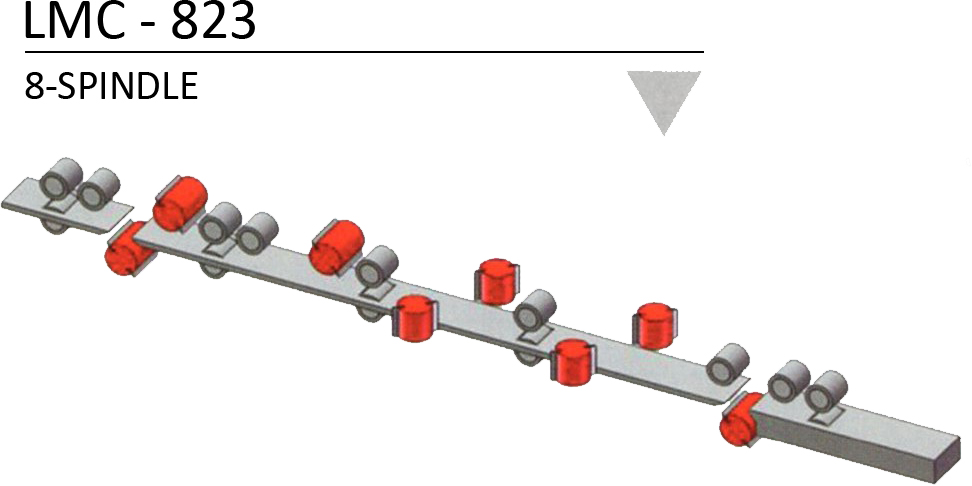

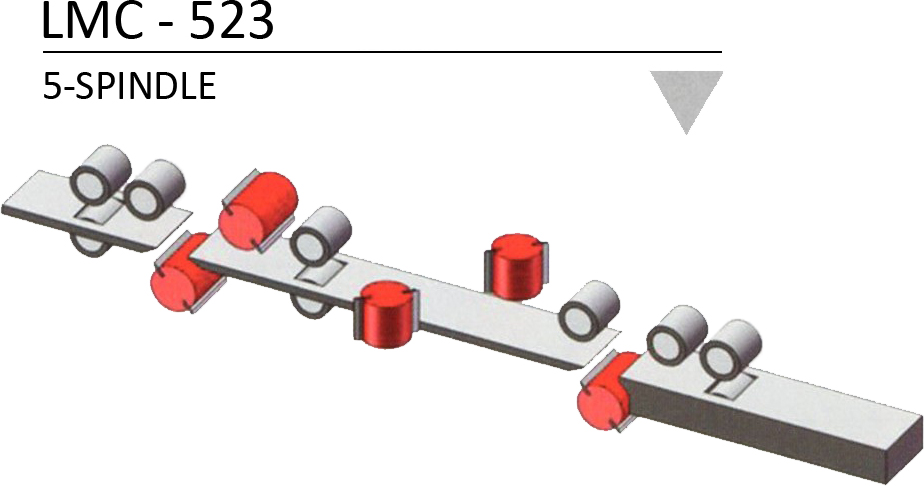

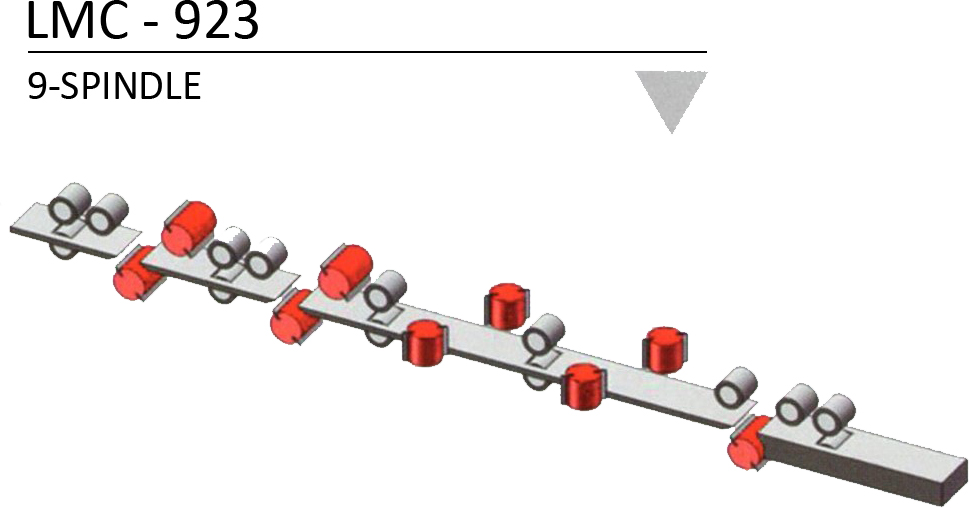

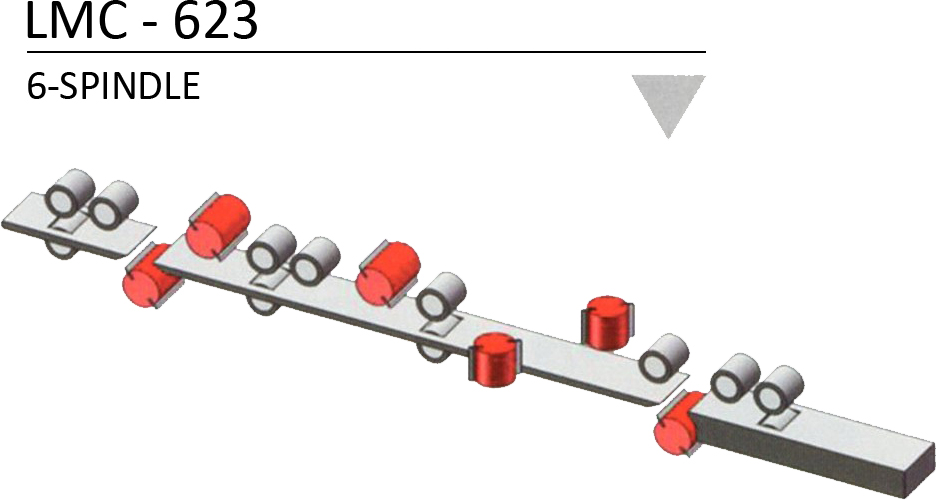

| Number of heads / spindles, min-max | | |
| Working width (with a tool cutting circle of 125 mm) | | |
| Working thickness (with a tool cutting circle of 125 mm) | | |
| Basic spindle motor capacity | | |
| Spindle diameter | | |
| Spindle speed | | |
| Tool cutting circle, first bottom spindle, min-max | | |
| Tool cutting circle, vertical spindles, min-max | | |
| Tool cutting circle, horizontal spindles, min-max | | |
| Feed motor | | |
| Feed speed, infinitely variable bt frequency (VFD) driven | | |
| Top feed rolls-diameter | | |
| Top feed roll width-Multiple rolls stacked on shafts | | |
| Bottom feed roll width | | |
| Pneumatic pressure for feed rollers, max | | |
| Adjustment range for infeed table (Btm head cut) and edge jointing fence | | |
| Adjustment range of vertical spindles (axial) | | |
| Adjustment range of horizontal spindles (axial) | | |
| Length of the Infeed / Straightening table | | |
| Diameter of dust hoods for vertical & horizontal spindles | | |
| Digital readouts on all axis of all heads | | |
| Full sound and safety enclosure | | |
| Motorized vertical adjustment of feed beam | | |
| Lateral pressure multiple roller opposite first right spindle | | |
| Chainless cardan shaft feed system | |
|
|
|---|---|
| To CE Standards | |
| Smartset touch screen controls with 500 or 1,000 Pattern memory and download capabilities from the grinding rooms with upload to the control including Ball screws, Rotary encoders, & Multiple digital readouts on each axis | |
|
|
|
|
| Grooved bed for running very short material | |
| Opposed side heads | |
| Universal spindle, tool sutting circle min 125mm, max 200mm | |
| Rip saw section with up to 50 HP (37.5KW) | |
| Left (opposite) hand feed | |
| DC electronic cutterhead brakes | |
