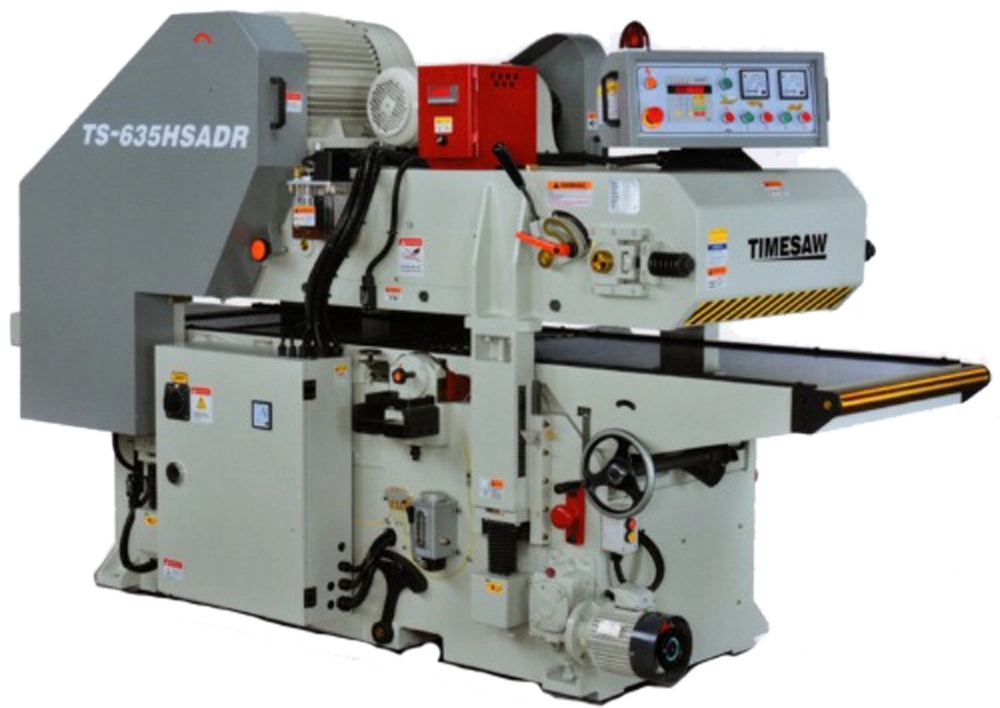

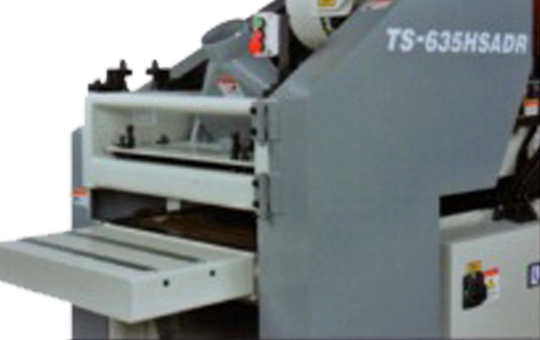

TS635HSADR
Double Surface Planer
- The four table rollers superior feeding performance
- Standard Y-Δ delta motor starting
- Quick belt change for bottom cutterhead
- Automatic lubrication for feeding chain
- Automatic lubricator provides convenient lubrication to caterpillar chain slideways
- An air wrench is applied for removing or installing knives and saves knife change time
- The table surface is hard chrome plated and precision ground for extremely feeding and maximum wear resistance
- The dovetailoed slideways on the table elvation assure outstanding rigidity and stability
- Optional spiral cutter head for the upper and lower cutter heads
- Sectional infeed rollers
Proven Quality and Performance

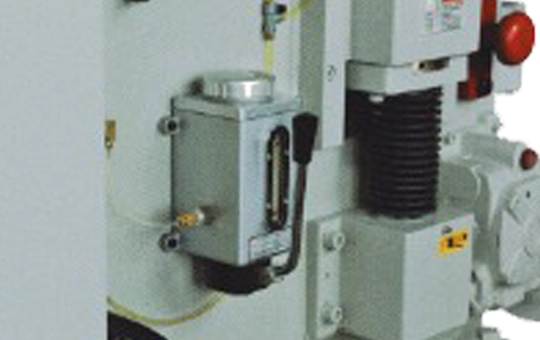

Centralized Hand Lubricator
A centralized hand lubricator is provided for conveniently lubricating the elevation slideways. (standard equipment)

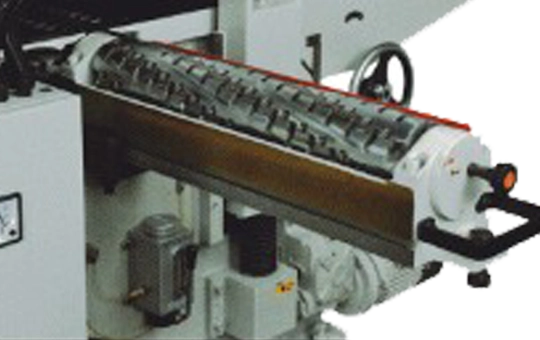

Fast Knife Replacement
The bottom cutterhead can be conveniently pulled out for loosing and locking knives, greatly saving on knives change time.
Feeding Inverter
Digital display and quick operation to reduce wear on mechanical gearbox.

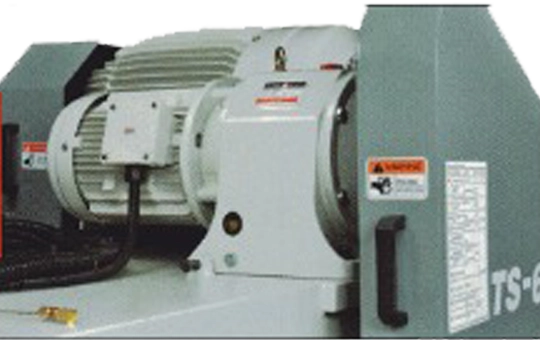

Gear Reducer
Reduce wear caused by temperature rise and improve efficiency of power transmission.

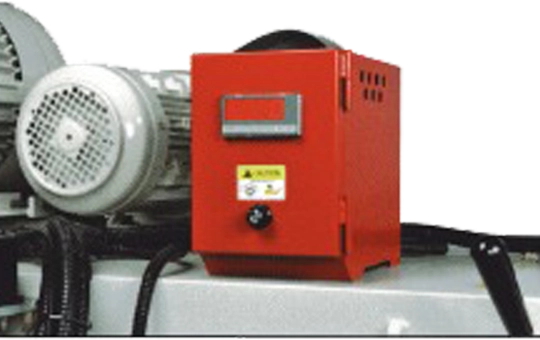

Digital Positioning Control
The thickness of cut can be controlled by a digital positioning control. Once the preset is reached, the table elevation stops automatically.
Specification TS635HSADR
| Model | TS635HSADR |
|---|---|
| Max. width of cut | 635 mm |
| Max. thickness of cut | 200 mm |
| Min. thickness of cut | 10 mm |
| Min. length of cut | 310 mm |
| Knife nos. on each cutterhead | 96 pcs |
| Knifes sizes | TCT-630 x 12 x 1.5 mm |
| Cutterhead diameter | Ø 126 mm |
| Cutterhead speed | 5000 rpm |
| Variable feed speed | 7 - 40 m/min |
| Dust hood outlet diameter | 127 mm |
| Table surface area | 686 x 2616 mm |
| Top cutterhead drive motor | 25 HP / 18.75 kW |
| Bottom cutterhead drive motor | 20 HP / 15 kW |
| Feed drive motor | 5 HP / 3.8 kW |
| Upper mechanism elevation motor | ½ HP / 0.4 kW |
| Machine dimensions | 2717 x 1145 x 1720 mm |
| Net weight | 3000 kg |
| Packing dimensions | 2830 x 1240 x 1940 mm |
| Gross weight | 3200 kg |
