TS-WZ2-2B
can only process bent board
Specification TS-WZ2-2B
| Model | TS-WZ2-2B |
|---|---|
| X, Z-Axis Transmission Mode | Inovance 1.5 kW Absolute Value Servo + Precision Scre Drive |
| Y-Axis Transmission Mode | Inovance 1.0 kW Absolute Value Servo + Precision Scre Drive |
| A, C-Axis Transmission Mode | Inovance 0.75 kW / 0.4 kW Absolute Value Servo Drive + Precision Screw Drive + Japan RV Reducer |
| Pneumatic Components | Yiri, Airtac |
| Tool Library | Without |
| Knife Holder | ER 32-25 |
| Tool Magazine Function | Without |
| Frequency Converter | Fuling 7.5 kW Inverter |
| Workbench Accessories | Standard 4 sets of N-120 Suction Cups |
| Electric Box | Siemens Electrical Components |
| Electric Box Worktable Size | 1200 mm x 1200 mm x 2 mm (L x W x T) |
| Gantry Height | 550 mm |
| Processing Stroke | 2500 mm x 1300 mm x 550 mm (X, Y, Z) |
| Maximum Moving Speed of X, Y, X-Axis | 30 m/min |
| Maximum Processing Speed of X, Y, X-Axis | 15 m/min |
| Maximum Turning Speed | 10 m/min |
| Precision | + 0.02 mm |
| Repeatability | + 0.05 mm |
| Voltage | 380 V/50 Hz |
| Air Pressure | 6 Mpa |
| Machine Size | 3500 x 2000 x 2800 mm |

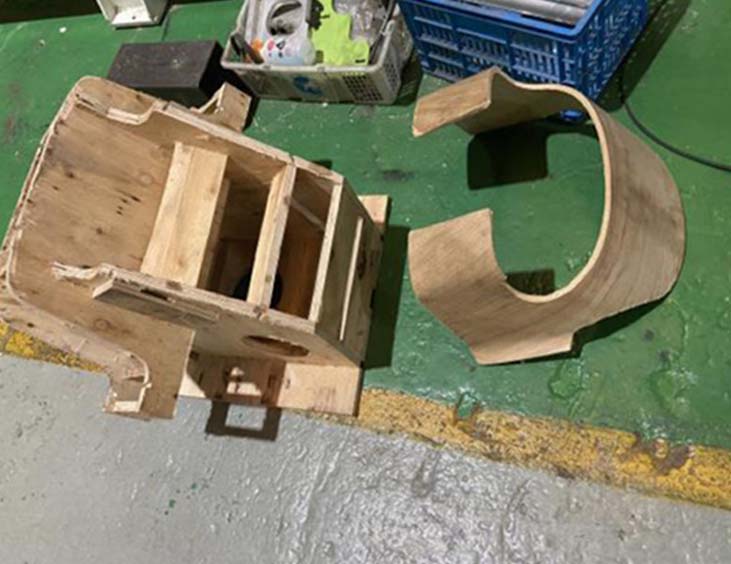

Process

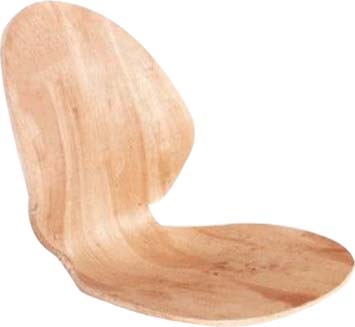

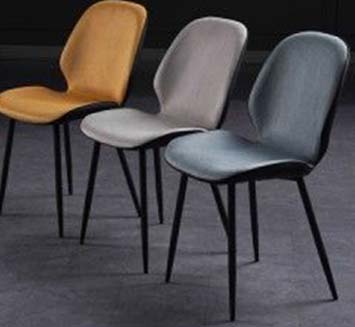

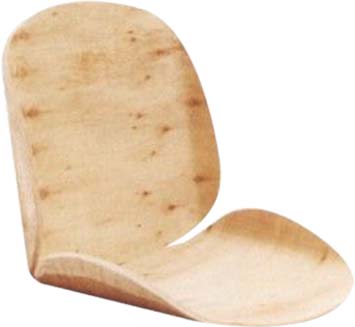

Product
Specification TS-WZ2-2B
| Model | TS-WZ2-2B |
|---|---|
| X, Z-Axis Transmission Mode | Inovance 1.5 kW Absolute Value Servo + Precision Scre Drive |
| Y-Axis Transmission Mode | Inovance 1.0 kW Absolute Value Servo + Precision Scre Drive |
| A, C-Axis Transmission Mode | Inovance 0.75 kW / 0.4 kW Absolute Value Servo Drive + Precision Screw Drive + Japan RV Reducer |
| Pneumatic Components | Yiri, Airtac |
| Tool Library | Without |
| Knife Holder | ER 32-25 |
| Tool Magazine Function | Without |
| Frequency Converter | Fuling 7.5 kW Inverter |
| Workbench Accessories | Standard 4 sets of N-120 Suction Cups |
| Electric Box | Siemens Electrical Components |
| Electric Box Worktable Size | 1200 mm x 1200 mm x 2 mm (L x W x T) |
| Gantry Height | 550 mm |
| Processing Stroke | 2500 mm x 1300 mm x 550 mm (X, Y, Z) |
| Maximum Moving Speed of X, Y, X-Axis | 30 m/min |
| Maximum Processing Speed of X, Y, X-Axis | 15 m/min |
| Maximum Turning Speed | 10 m/min |
| Precision | + 0.02 mm |
| Repeatability | + 0.05 mm |
| Voltage | 380 V/50 Hz |
| Air Pressure | 6 Mpa |
| Machine Size | 3500 x 2000 x 2800 mm |
