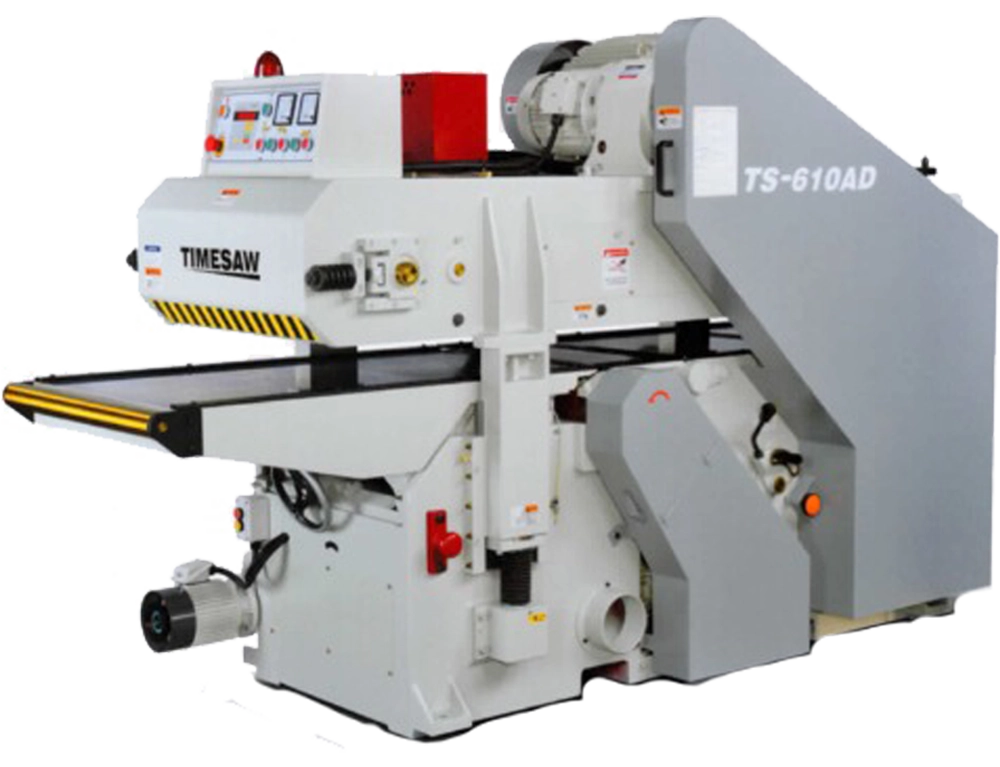

TS-610AD – Double Surface Planer

Well laid-out pressure spikes
The pressure spikes are in an overlapped layout with a minimum of gaps that hold the workpiece firmly and evening ensuring shake-free feeding-even for short workpieces

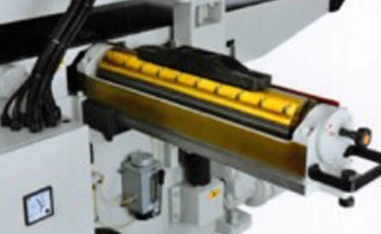

Fast knife replacement
The bottom cutterhead can be conveniently pulled out and is combined with an air wrench for greatly saving knife change time.

Fast and convenient belt tension adjustment
Simply loosen the lever for quickly replacing belt or adjusting belt tension.

Quick thickness setting
Fast and convenient thickness setting can be achieved by simply placing a wood sample of identical thickness under the micro switch
(standard equipment on models 610A and 635ARD only Optional for other models).

Pressure Regulator
Rear sight adjustment device displays conveyor pressure values.

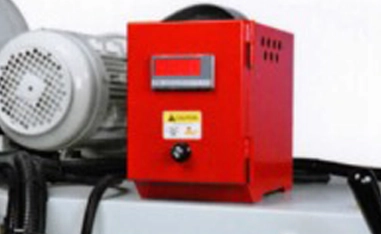

Material choice inverter
Feed speed is easily entered via digital display installed in a thermal insulated electrical box.
Automatic Lubrication
Automatic lubricator provides convenient lubrication to caterpillar chain sideways, and equipped with a protective enclosure.

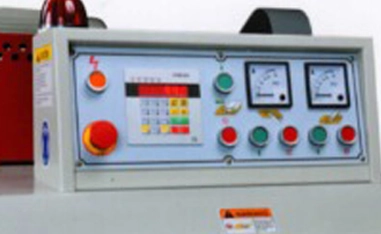

Central power switch
Meeting european CE regulations, the safety door switch assembly includes a voltmeter, and working hours meter.

Gear reducer
Reduces wear caused by temperature rise and improves transmission power efficiency.

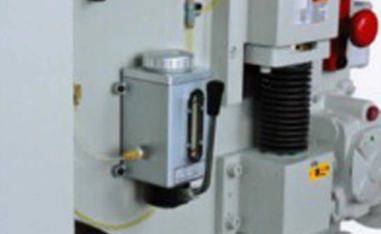

Centralized hand lubricator
A centralized hand lubricator is provided for conveniently lubrication the elevation slideways.
(Standard equipment on models 610A and 635ARD only. Optional for other models)

Switch element protection
All electrical components are protected against impact damage throughout operation.

Digital positioning control
The thickness of cut is controlled by a digital positioning control. Once the preset position is reached, table elevation stops automatically
Hard chrome worktops
The table surfaces treated with hard chrome plating, reducing feed resistance and increasing service life.

Cast machine base
FC25 is cast in a single piece with no deformation for excellent mechanical stability.

MODEL	TS-635HSARD	TS-610AD
Maximum width of cut	635 mm (25")	610 mm (24")
Maximum thickness of cut	200 mm (8")	200 mm (8")
Minimum thickness of cut	8 mm	8 mm
Minimum length of cut	310 mm	310 mm (100-310)
Knife nos. on each cutterhead	156 pcs	4 pcs
Knife sizes	TCT 15 x 15 x 2.5 mm	610 x 6.35 x 38 mm
Cutterhead speed	5000 rpm	4000 rpm
Variable feed speed	8 - 40 m/min	8 - 24 m/min
Dust hood outlet diameter	6" x 2	6" x 2
Table surface area	27" x 103"	27" x 103"
Top cutterhead drive motor	25 HP	20 (25 HP)
Bottom cutterhead drive motor	20 HP	15 (20 HP)
Feed drive motor	5 HP	3 HP
Upper mechanism elevation motor	1/2 HP	1/2 HP
Machine dimensions (LxWxH)	2700(+400) x 1145(+650) x 1750 mm	2700 x 1145(+650) x 1750 mm
Net weight	3200 Kg	3000 Kg
Packing dimensions (LxWxH)	2800 x 1245 x 1850 mm	2800 x 1245 x 1850 mm
Gross weight	3700 Kg	3500 Kg
