Computer Panel Saw

Home > Product > Brand > Titank

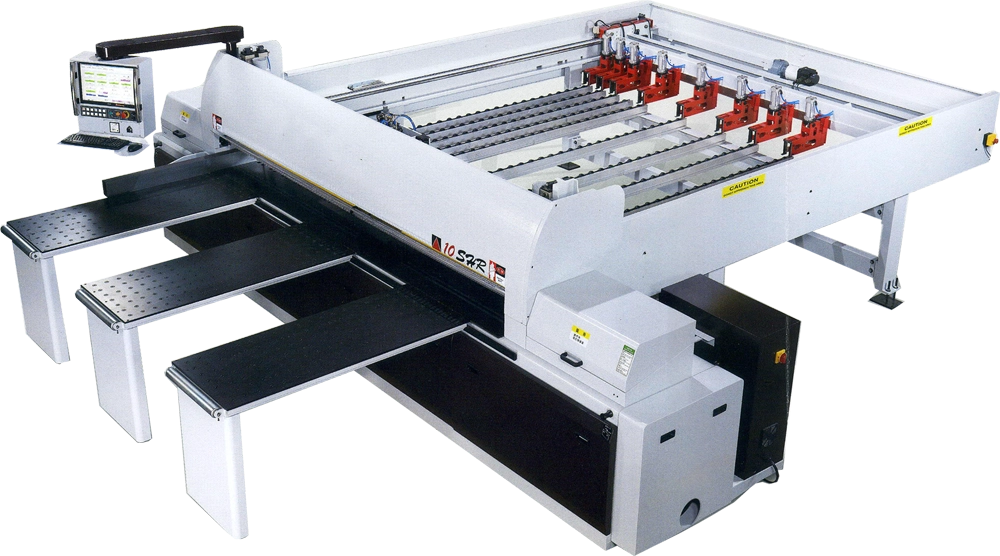

TPS-8SHR | TPS-10SHR | TPS-12SHR

2600 mm cutting length | 3200 mm cutting length | 3800 mm cutting length
STANDARD EQUIPMENT

  • Main sawblade: Ø405mm, 4.0mm thick
  • Scoring sawblade: Ø176mm, 3.9-5.2mm thick, adjustable.
  • Floating tables
  • Piano-key type dust guard.

Features of Computer Panel Saw

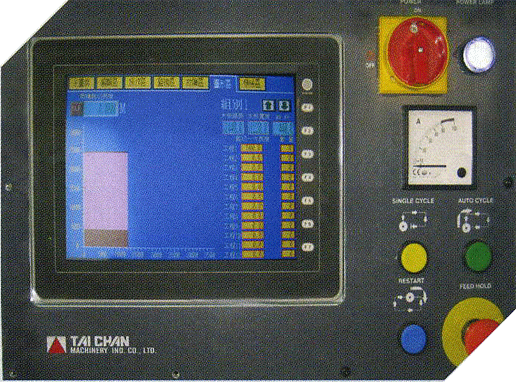

JAPAN-IMPORTED 8.4” TFT COLORFUL TOUCH SCREEN

  • The computer features self-diasnotic function
  • TPS-SHR Computer Panel Saw featured with Chinesse/English display version
  • Size error can be compensated by the maching home position

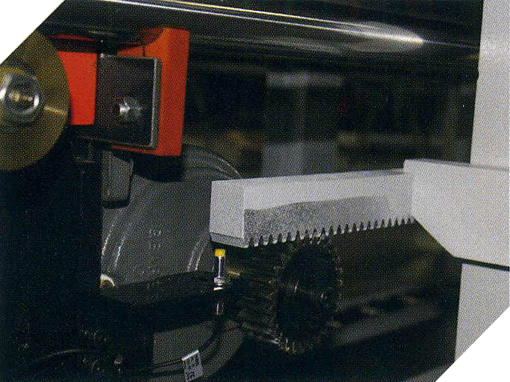

MAGNETIC SCALE

  • The machine employs Germany-imported high torque reducer combined with a magnetic scale and Japan Panasonic servo motor, that sensure extra high positioning accuracy through double comparisons

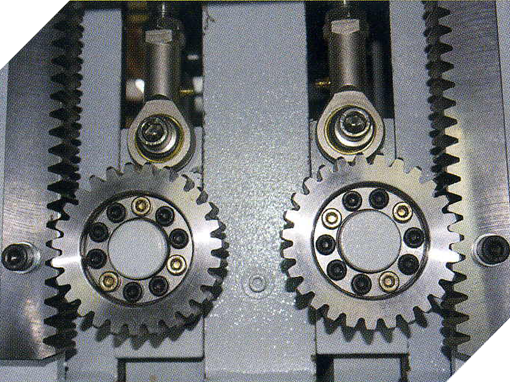

PRESSURE BEAMS MECHANISM

  • Double pressure beams transmitted with rack and pinion combined with air cylinders equality press between cutting line
  • Allows for clamping cutting in case panel size is over 30 mm

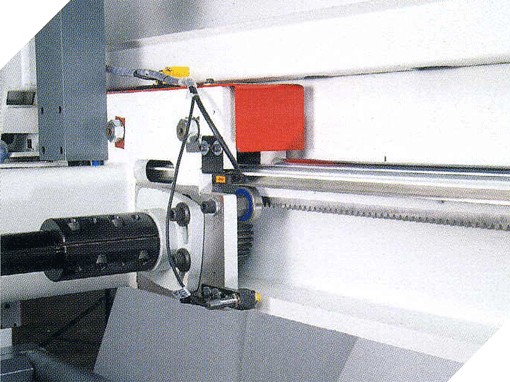

SAW CARRIAGE DRIVE WITH RACH AND PINION

  • Saw carriage drive along to rack and pinion combined with 2HP inverter motor and reducer transmission cutting.

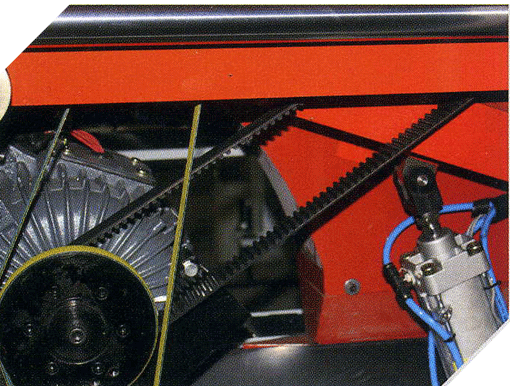

MAIN SAW TIMMING BELT

  • Main saw motor transmitted with powerful timming belt when met heavy duty cutting to avoid slip

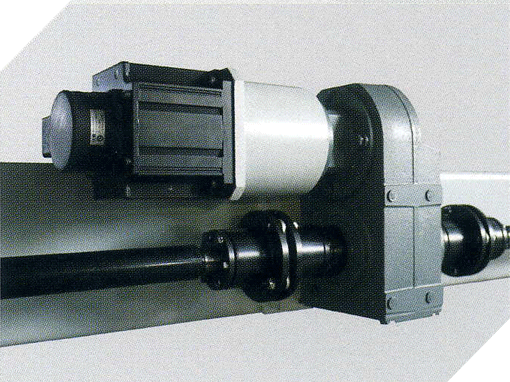

GERMAN REDUCER

  • German imported low backlash speed reducer.
  • Japan imported 1KW AC servo motor
  • Precision rack and pinion transmission reach to 80 m/min

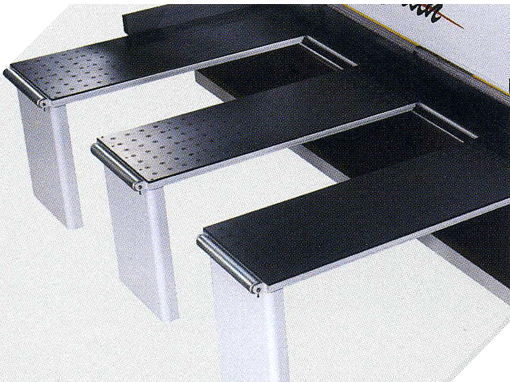

FLOATING TABLES

  • Table surface fixed with HPL panel and spring under each floating ball to avoid air come out, ensure maximum floating power
  • A 5HP(3.7KW) high pressure blower motor to blow air into tables, when panels press on floating tables to have bouyancy to make floating, easy for operator working

Option Equipment of Computer Panel Saw

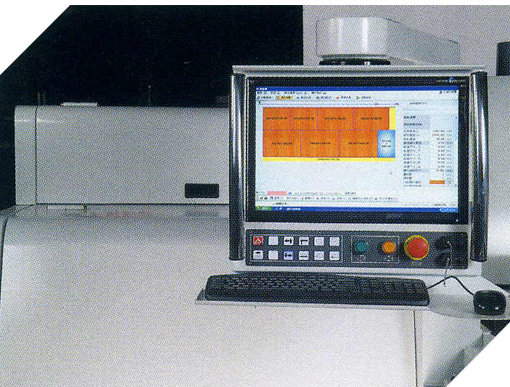

INDUSTRIAL PC COMPUTER CONTROL

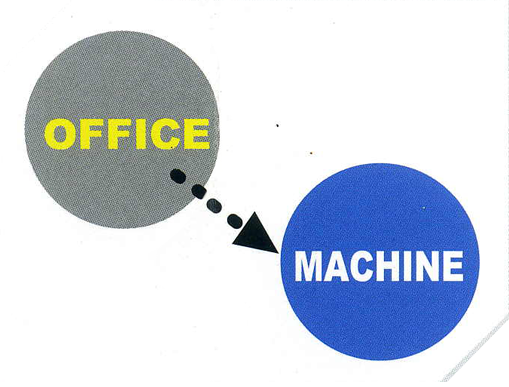

OFFICE SOFTWARE

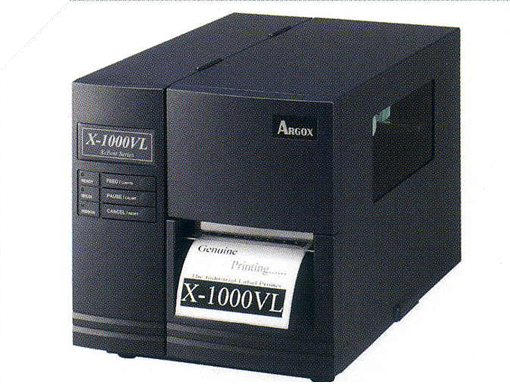

INDUSTRIAL LABEL PRINTER
Specifications TPS-SHR Computer Panel Saw
MODEL
8 SHR
10 SHR
12 SHR
CAPACITYMaximum cutting length
2600 mm
3200 mm
3600 mm
Maximum cutting depth
Max. 100 mm
Maximum cutting width
2600 mm
3200 mm
3600 mm
MAIN SAWBLADEMain blade diameter
Max. Ø405 mm
Arbor diameter
Ø1" or 30 mm
Main blade speed
4500 RPM
SCORING SAWBLADEScoring blade diameter
Ø176 mm
Arbor diameter
Ø1" or 30 mm
Scoring blade speed
8400 RPM
SAW CARRIAGEFeed speed
5-50 m/min
Return speed
90 m/min
MOTORMain sawblade motor
15 HP (11.2 KW)
Saw carriage drive motor
2 HP (1.5 KW)
High pressure blower motor
5 HP (3.7 KW)
Pusher drive motor
1 KW (AC servo motor)
OTHERSNumber of grippers
7
8
9
Floating tables
3
3
3
1520x500 mm
1520x600 mm
Pusher pulling speed
5-80 m/min
Pusher pushing speed
5-50 m/min
Working air pressure
5-6 kg/cm2
Table height from floor
900 mm
Net weight / Gross weight
4100/4700 kg
4500/5100 kg
4700/5300 kg
