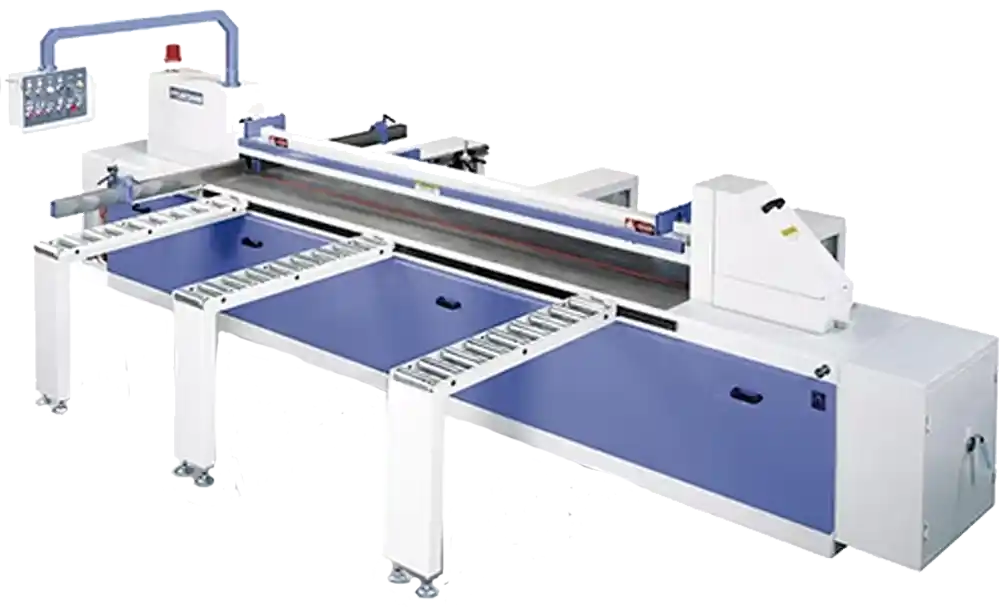

TPS 8/10/12 Semi Auto Panel Saw

Quality constructed throughout, the TAI CHAN panel saw feature high efficiency, extreme smooth running, low noise level and maximum safety for operator

TPS-8 : 2650 mm / cutting length
TPS-10 : 3250 mm / cutting length
TPS-12 : 3850 mm / cutting length

Download Catalog Tai Chan TPS 8/10/12 disini

Fitur TPS 8/10/12 Semi Auto Panel Saw

Comprehensive safety guard

When met trouble, an emergency stop button is on the control panel and safety bars are around both sides of cutting area.

Accurate cutting operation

The saw carriage runs with bronze wheel, which accurates concentricity producing fine smooth surface cut. The guide rods, hard chrome plated, provide rigid support for saw carriage.

Pressure Beam

The uniform holding pressure through the entire pressure beam is achieved through a linkage mechanism.

Angle Fence

Made of extruded aluminium alloy, and surface precision ground. the fence is fitted with lift stopper. A scale is furnished for reading of cut.

Advanced Saw Carriage

The saw carriage feed is driven by cable wire. fitted with a shock absorbing cylinder to prevent bumping while it travels to the left side. the scoring blade may be laterally adjusted for a burr free cut or vertically adjusted for proper depth of cut and to compensate for blade wear.

Saw Carriage Travel Length control by Optical Fiber Sensor

The machine employsan optical fiber sensor. It’s highly sensitive performance ensures saw carriage travel length control.

Saw Carriage Drive Motor

The saw carriage is driven by a 3HP AC motor; forward with 4 feed speeds 12/16/21/26 M/min are changed by pulley, and return speeds are 24/32/42/52 M/min

Scoring Sawblade Adjustable

The scoring sawblade can be adjusted up/down, left/right for alignment to main sawblade.

Universal Roller Infeed Tables

Panels can be rotated 360⁰ on tables, easier and efficiency for operator to operate when working

Floating Table (option)

The floating tables are fitted with teflon balls. Powerful 3 HP blowers supply air into the holes. The table surfaces are covered with bakelite to prevent scratching of the panel during feeding.

Piano-key Type Dust Guard (option)

This sectional dust guard not only acts as a surrounding sawblade guard, but also fully prevents sawdust from spraying out of the machine.

Standard Equipment

TPS Panel Saw High Performance dimensional drawing 1

Infeed table: 3 tables
Outfeed table: 3 tables
Main sawblade: Ø355 x 3.2 mm x 50T x 1 pcs
Scoring sawblade: Ø160 x 3.1 – 4.5 mm x 40T
Tool box with tool kits.

TPS Panel Saw High Performance dimensional drawing 2

Spesifikasi TPS 8/10/12 Semi Auto Panel Saw

Model		TPS-8	TPS-10	TPS-12
Capacity	Maximum cutting length	2650 mm	3250 mm	3850 mm
Capacity	Maximum cutting thickness	90 mm		90 mm
Main Sawblade	Blade diameter	Ø 355 mm		Ø 355 mm
	Spindle diameter	Ø 25.4 mm (Ø30 mm on request)		Ø 25.4 mm (Ø30 mm on request)
	Speed	4,800 RPM		4,800 RPM
Scoring Sawblade	Blade diameter	Ø160 mm		Ø160 mm
	Spindle diameter	Ø25.4 mm (Ø30 mm on request)		Ø25.4 mm (Ø30 mm on request)
	Speed	6,500 RPM		6,500 RPM
Saw Carriage	Forward speed	12-16-21-26 M/min		12-16-21-26 M/min
Saw Carriage	Return speed	24-32-42-52 M/min		24-32-42-52 M/min
Motor	Main sawblade motor	13 HP		13 HP
Motor	Saw carriage drive motor	3 HP		3 HP
Others	working air pressure	5-6 kg/cm ²		5-6 kg/cm ²
	Table height from floor	820 mm		820 mm
	Net weight	2200 kg	2400 kg	2600 kg
	Gross weight	2600 kg	2900 kg	3200 kg
	Machine dimensions (LxWxH) (mm)	5760 x 3334 x 1812	5820 x 3334 x 1812	5880 x 3334 x 1812
	Packing dimensions (LxWxH) (mm)	5330 x 990 x 1500	5870 x 990 x 1500	6600 x 990 x 1500
