APPLICATION
The unit is ideal for polishing table flange in variety of shapes
EASY TO OPERATE

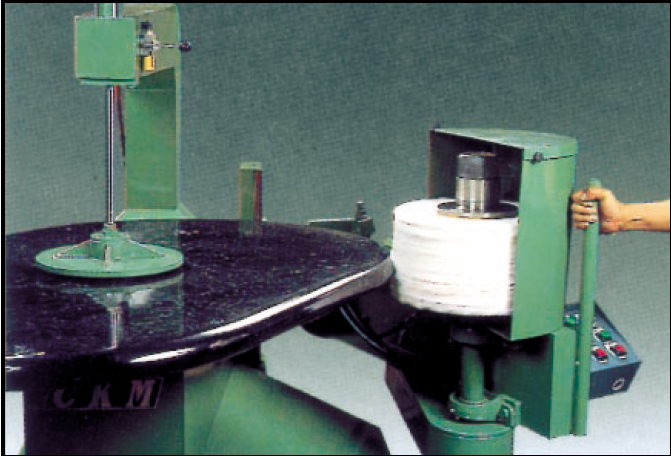

Once the workpiece is clamped by air clamp, start table running, then polishing is fast accomplished by hand feeding polishing head against table flange
ADJUSTABLE SPINDLE POSITION
Powered spindle raising or lowering permit fast spindle adjustment.
TILTING SPINDLE
Range 30o right and left for beveled edge polishing.
DISC SANDING AVAILABLE
Portable disc sanding is applicable when textile shifted away.

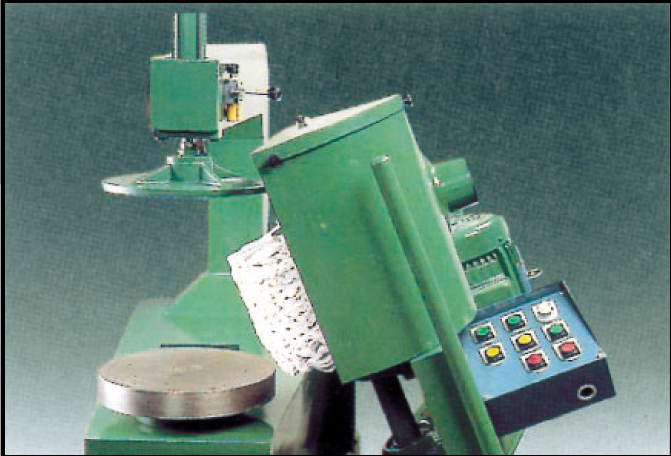

Spesifikasi B-5F Table Flange Polishing Machine
| Model | B-5F |
|---|---|
| Capacity | |
| Max. width of polish | 900 mm |
| Max. length of polish | 1830 mm |
| Max. thickness of polish | 260 mm |
| Table turning speed | Variable |
| Spindle | |
| Diameter | 62 mm |
| Drive motor | 5 HP |
| Lifting motor | ½ HP |
| Tilting | 30° right & left |
| Net weight | 650 kgs |
| Gross weight | 800 kgs |
| Machine dimension (L x W x H) | 1470 x 950 x 1430 mm |
