SU Series
Table Fixed Sander
Standard equipment
- An electric eye
- Display position number
- Alarm bell and flash light
- Speed change for feeding, controlled by inverter (VFD), feed speed: 5-15 m/min
- Rubber endless belt
- Automatic device for feed belt tracking
- Automatic to stop a machine when sanding belt off
- Pressure feeder: by steel plate (plating hard chrome)

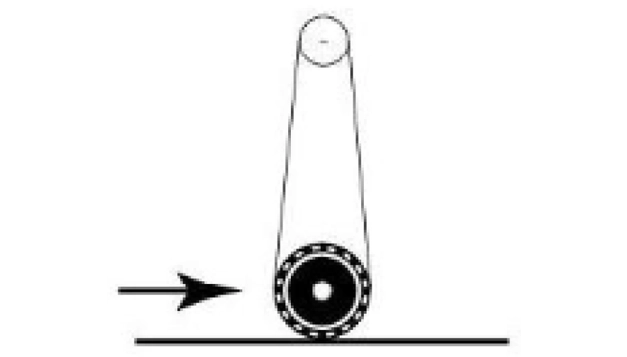

R
P

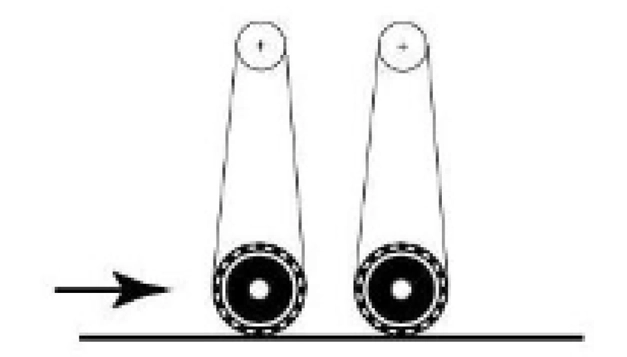

RR
RP
RRR

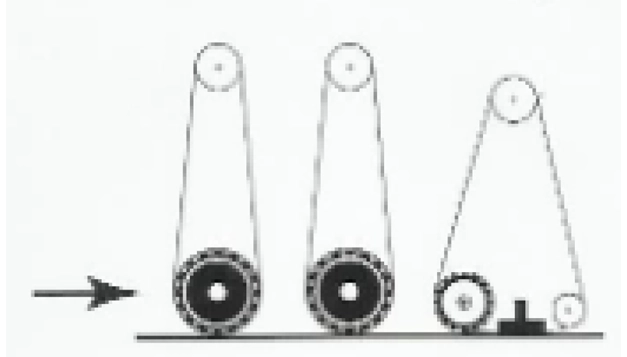

RRP
Specification SU Series
| Model | SU-1300 R | SU-1300 RR | SU-1300 RRR | SU-1300 P | SU-1300 RP | SU-1300 RRP |
|---|---|---|---|---|---|---|
| Width | 1300 mm | 1300 mm | 1300 mm | 1300 mm | 1300 mm | 1300 mm |
| H1 | 30 HP (22 kW) | 30 HP (22 kW) | 40 HP (30 kW) | 20 HP (15 kW) | 30 HP (22 kW) | 40 HP (30 kW) |
| H2 | - | 20 HP (15 kW) | 30 HP (22 kW) | - | 20 HP (15 kW) | 30 HP (22 kW) |
| H3 | - | - | 20 HP (15 kW) | - | - | 20 HP (15 kW) |
| F | 2 HP (1.5 kW) | 3 HP (2.2 kW) | 7.5 HP (5.5 kW) | 2 HP (1.5 kW) | 3 HP (2.2 kW) | 7.5 HP (5.5 kW) |
| Feed speed | 5-15 m/min | 5-15 m/min | 5-15 m/min | 5-15 m/min | 5-15 m/min | 5-15 m/min |
| Belt size | 1320 x 1905 mm (52" x 75") | 1320 x 1905 mm (52" x 75") | 1320 x 1905 (52" x 75") | 1320 x 1905 (52" x 75") | 1320 x 1905 mm (52" x 75") | 1320 x 1905 mm (52" x 75") |
