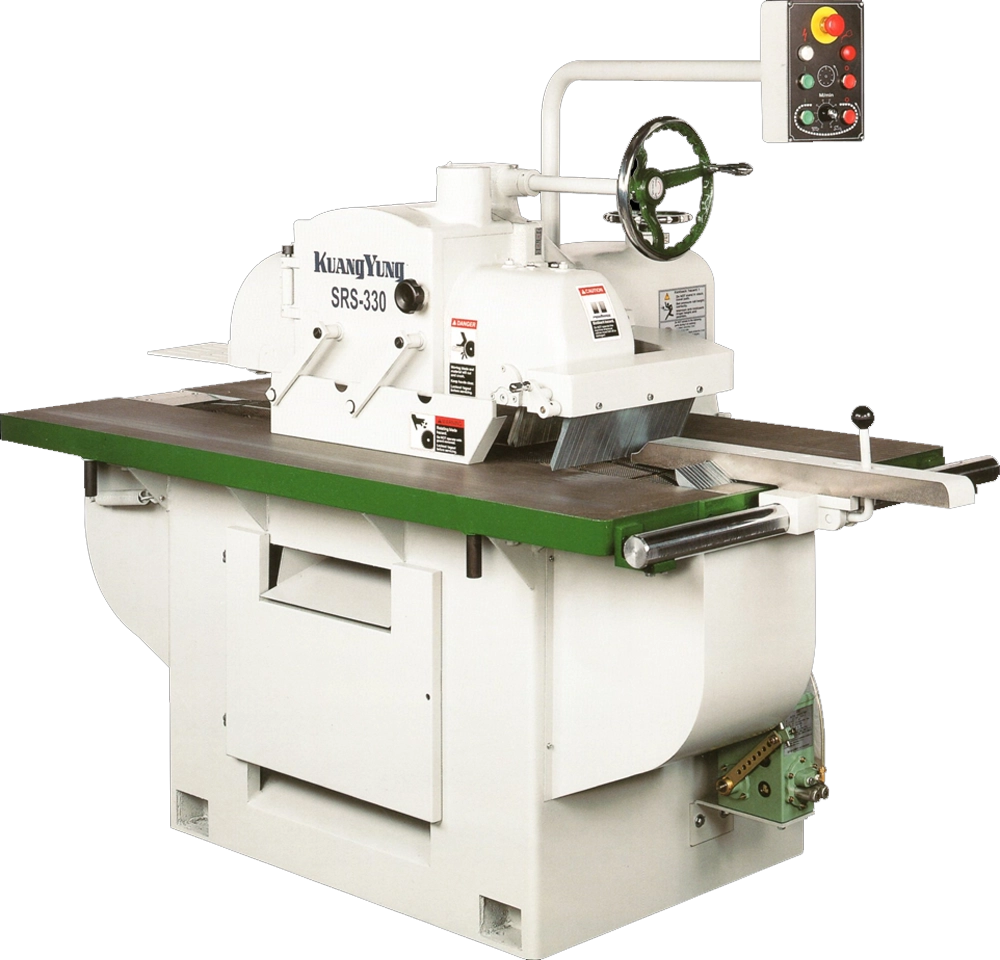

SRS330
Straight Line Rip Saw
A versatile rip saw designed for board jointing and material preparation in furniture factories. Also ideal for long material preparation in millwork. The feed system i scontrolled by a frequency inverter, providing variable speed adjustment.

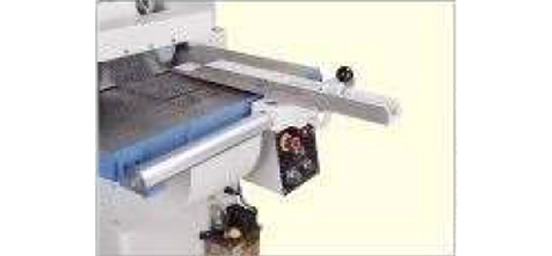

Cylindrical guide rail and cast iron fence
It does not deposit dust and provides fast traverse performance. The fence is fixed by eccentric lever for convenient operation.

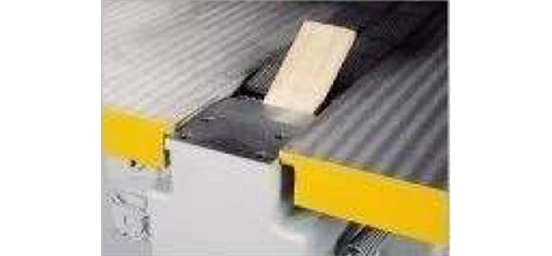

Swing down rear table
Avoids possible damage to the machine by preventing short work pieces and defective lumber from accidentally sliding between the chain and the table when they are feed to the end.

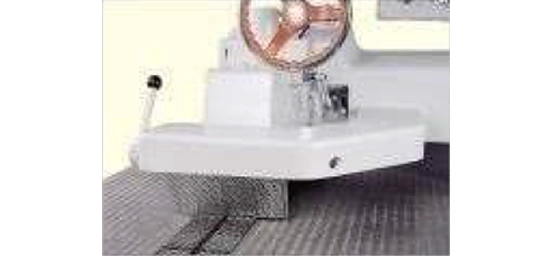

Anti kickback fingers for operator safety
The first row of anti kickback fingers is independtly mounted on an overarm, without beging affected by the pressure elevation device. The second row of anti kickback fingers is located at the front of the sawblade.

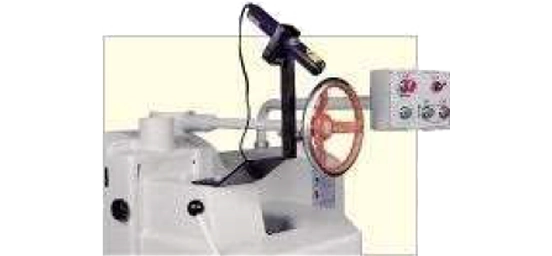

Laser device (optional)
Provides convenient positioning cut, which reduces material waste to a minimum.

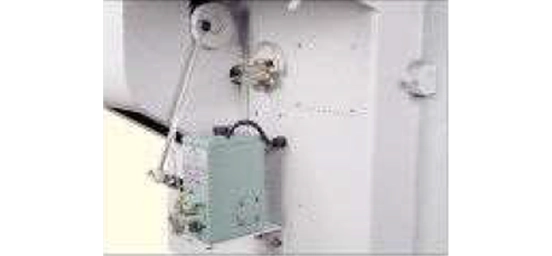

Selft lubricator mechanical type (optional)
Lubricant flow rate can be adjusted automatically with the feed chain speed variation. If there is no lubricant left the warning lamp lights up and the chain stops automatically.

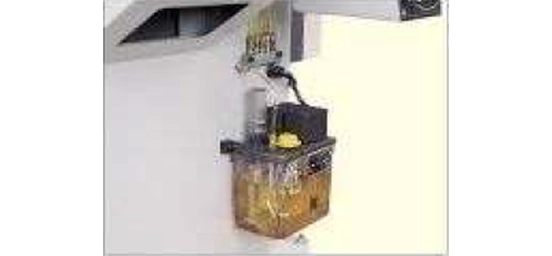

Self lubricator electrical type (optional)
Lubricant flow rate suits constant speed of feed chain. If there is insufficient lubricant, the warning lamp lights up and the feed chain stops automatically.

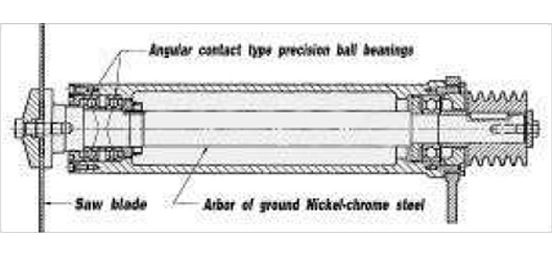

Precision built saw arbor mounting
Made of nickel chrome steel, large in diameter, accurately ground and dynamically balanced. It runs on precision angular contact type ball bearings which eliminate any radial run out and axial thrust.
Precision feed chain and guide rails
The feed chain blocks and guide rail are made of special cast iron. The high grade steel connecting pins are heat treated and ground.
Specification of SRS330
| Model | SRS330 |
|---|---|
| Min. working length | 520 mm |
| Max. thickness | 100 mm |
| Distance between saw and column | 460 mm |
| Saw arbor motor | 10, 15, 20 HP |
| Saw arbor speed | 4300 rpm |
| Saw blade diameter | ⌀ 250 - 330 mm |
| Saw arbor diameter | ⌀ 25.4 mm |
| Feed motor | 2 HP |
| Feed speed | 10 - 30 m/min |
| Number of holding rollers | 8 |
| Work table height | 800 mm |
| Table area | 930 x 1665 mm |
| Overall dimensions | 1115 x 2015 x 1632 mm |
| Shipping dimensions | 1150 x 1800 x 1680 mm |
| Net weight | 1450 kgs |
| Shipping weight | 1650 kgs |
