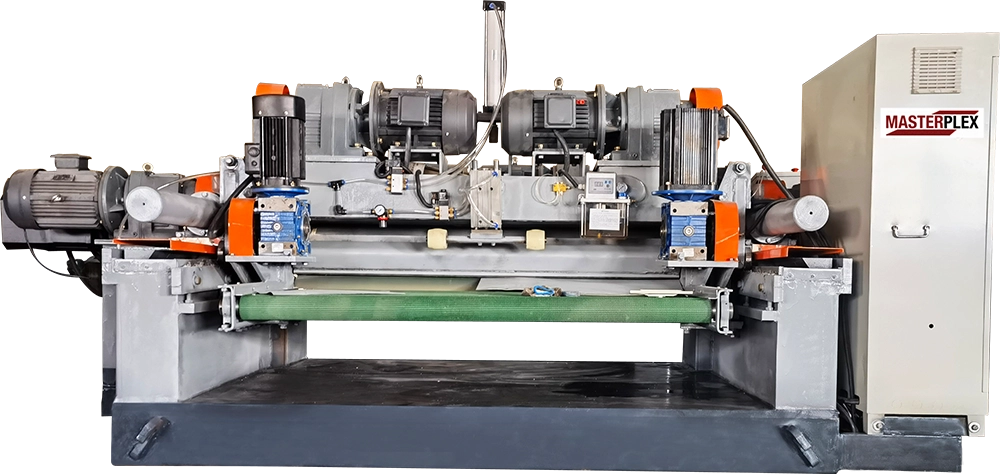

SPL-1500H
NC. Spindleless Rotary Peeling Lathe
Specification NC. Spindleless Rotary Peeling Lathe
| Model | SPL-1500H |
|---|---|
| Length of peeler log | 900 - 1300 mm |
| Diameter of peeler log | Ø30 - 500 mm |
| Thickness of veneer peeler | 1.0 - 4.0 mm |
| Linear speed of host machine | 45 - 90 m/min |
| Diameter of pressurebar roller and driving roller | 118, 118 mm |
| Dynamic configuration | 1 x 11.0 kW (s) 2 x 7.5 kW, 2 x 5.5 kW 1 x 1.5 kW, 2 x 2.2 kW |
| Reducer model | 5 x R87, 2 x R57, 1 x RV90 |
| Total weight | 6000 kg |
| Overall dimensions | 4500 x 1800 x 1380 mm |
