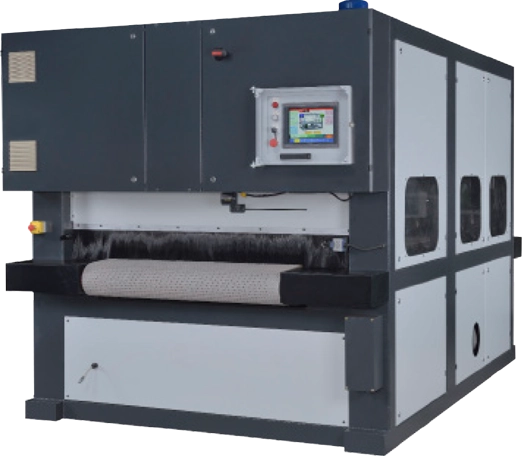

SL-1350H2RB2T
Automate Rotation Brush
The most powerful irregular surface sanding machine SL-H2RB. Provides optimal conditions for achieving the highest surface quality in various applications.
Suitable for sanding: intermediate lacquer, white wood, mdf
- Suitable for various non-flat surfaces like door panels and cabinet doors
- No dead angles in sanding, penetrating grooves from every angle
- Effectively increases productivity, reducing over 95% of manual time

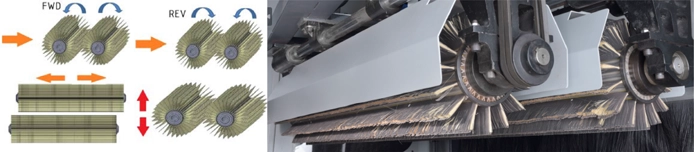

RB track belt head
Both sides can be separately set for clockwise and counterclockwise, and the entire head is rotatable
RB track belt head
The track belt sanding head with a large sanding area ensures a consistent sanding in all work piece areas and penetrates deeply into the milled grooves. (the directions can be clockwise and counterwise)
Automatic thickness reading
The infeed sensor is used to detect changes in the thickness of workpieces. It then maps the thickness profile onto a human-machine interface (HMI). This aids in the rapid setup of the sanding procedure (Recipe)
PLC-HMI
Through the human-machine interface, the thickness information of the workpiece provided by the infeed sensor can be used to set up the sanding recipe. Additionally, there is a brush compensation system that allows for setting a time to increase the sanding depth for compensating when the sanding brush wears down and the sanding effect is insufficient

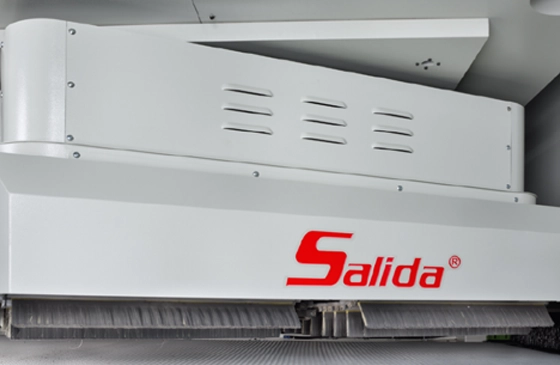

H2 Brush Head
Specification SL-1350H2RB2T
| Model | SL-1350H2RB2T |
|---|---|
| Max. working width | 1350 mm |
| Max. working height | 100 mm |
| Min. work-pieces (LxW) | 300 x 200 mm |
| Min. work-pieces thickness | 5 mm |
| Conveyor motor | 5 HP |
| Vacuum function | 15 HP + 15 HP |
| Track belt motor | 3 HP + 3 HP |
| Rotation function | 2 HP |
| Horizontal head-H2 head | 3 HP + 3 HP |
| Oscillation function-H2 head | 1/4 HP x 2 |
| Lifting-track belt | 1/2 HP |
| Lifting-H2 head | 1/2 HP |
| Conveyor speed | 2-12 m/min by inverter |
