*Machine picture shown is reference only

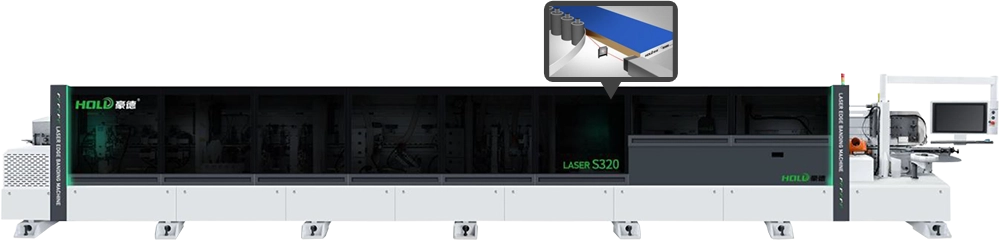

S-320
Intelligent Laser Edge Banding Machine
(Heavy-duty Fully Automatic Edge Banding Machine)
Standard Process
- Separation Spray Device
- Pre-milling
- Bake Lamp
- PUR Two-color Gluing System
- Pressing 1
- Laser System
- Servo Feeding
- Pressing 2
- Two Rails Three Motors End Cutting
- Rough Trimming

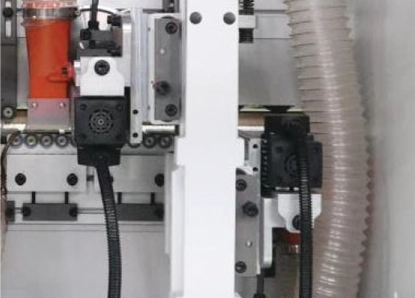

- Fine Trimming
- Four-tool Corner Rounding
- Scraping 1
- Scraping 2
- Off-cut
- Flexible Flat Scraping
- Cleanser Spray Device
- Buffing 1
- Buffing 2
Technical Info

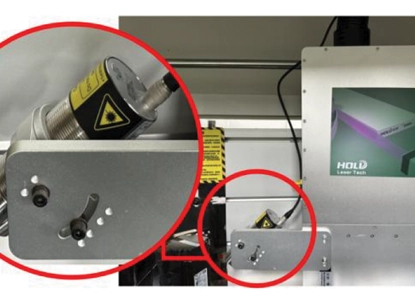

- The laser system HD Laser S320 developed by Hold

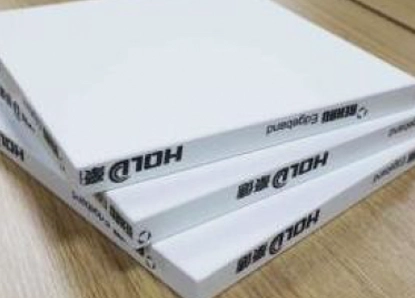

- True seamless edge banding effect, without glue, the high-energy laser beam melts the functional layer on the back of the edge banding tape and bonds it to the substrate, with super strong adhesion, excellent weather resistance, and perfect visual experience.
- The laser system is ready to use without heating, which imrpoves the utilization rate of effective working hours.
- Good waterproof performance, high and low temperature resistance, environmental protection and no pollution
- In addition to laser edge sealing, PUR glue edge sealing can also be selected.

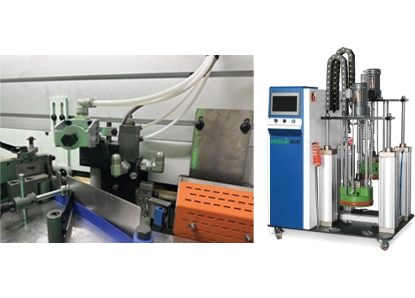

- Glue application: two color PUR gluing system
- Patented laser system, perfectly compatible with ABS, PP, acrylic, laser edge banding with functional layer.

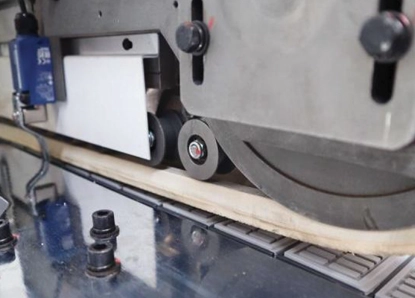

- Servo tape feeding, through servo control, precise tape feeding reduce edge band reserve, saving edge banding materials costs.

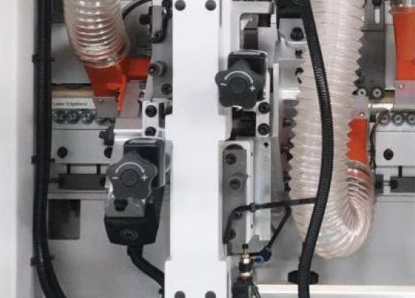

- Two rails and three motors quickly end cutting, which can not only maintain a small board spacing, but also reduce the size range of the terminal

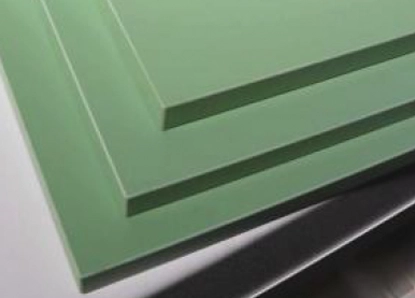

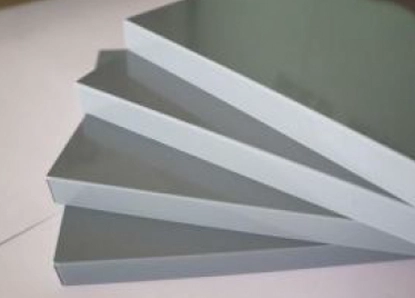

- For the laminated board, the specially developed laminated board scraping function can switch the lamination function with one key

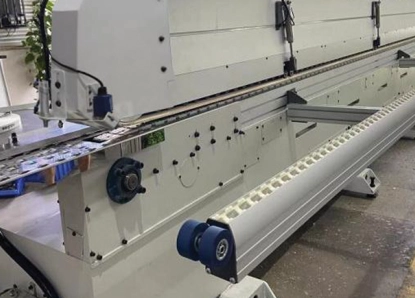

- With double-row gantry roller

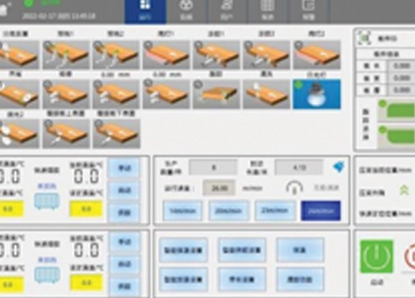

- Fully intelligent control system, with 15 powerful functions:
1. Scan code automatic belt change function (optional)
2. Intelligent heating (intelligent heating according to the set time when machine is powered on)
3. Intelligent heat preservation (automatic heat preservation when there is no board feeding according to the set time)
4. Intelligent sleep (can be set to enter when the machine is not in use for 15 minutes, sleep state, reduce energy consumption)
5. Stepless speed regulation
6. Board position display
7. Intelligent variable speed (to ensure the stability of the conveying speed)
8. Quick positioning of pressure beam
9. One-key download of parameters (inverter real-time communication during replacement and maintenance, one-click download)
10. Fault-record
11. Operation records (equipment running time, effective running time, tool replacement, maintenance remainder, etc)
12. Production report
13. Piece counting function
14. Maintenance reminder
15. The function of docking ERP/MES can be developed according to customer requirements
Fifteen powerful functions, real-time date transmission, real-time understanding of equipment status and one-click production reports
Standard Configuration

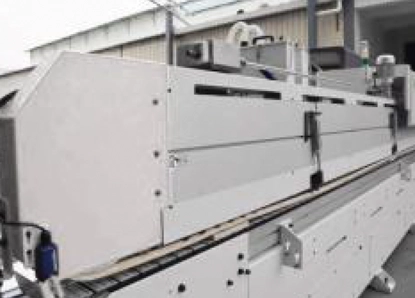

Heavy Pressure Beam
Fully Intelligent Control System
Belt Feeding
Panel Heating Unit
Gluing: Dual-Color PUR Non-Cleaning Glue Pot + Dual-Color PUR Glue Machine (Standard Configuration)
Patented Technology Laser System
Two Rails Three Motors Fast end Cutting

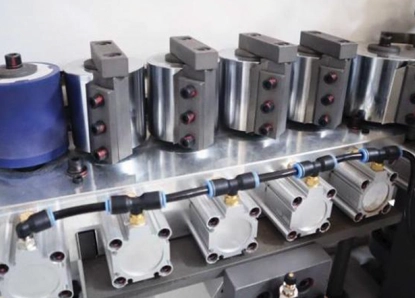

Six-Wheel Press Paste Scraper
Rough Trimming
Fine Trimming
Four-Knife High-Speed Tracking
Non-Coated + Coated Scraping
Off Cut + Flexible Flat Scraping Edge + Cleaning Agent Device
Laminated Auxiliary Tug
Two Sets of Buffing
Double-row Gantry Roller
Specification of S320
| Model | S320 |
|---|---|
| Lifting | NC |
| Edge banding thickness | Laser: 1 - 3 mm PUR: 0.4 - 3 mm |
| Panel thickness | PUR: 10 - 60 mm Laser: 10 - 40 mm |
| Min. panel size | Laser/PUR: 120 x 100 mm |
| Working pressure | 0.6 Mpa |
| Feeding speed | Laser: ≤ 23 m/min (when the workpiece thickness is 18 mm, the maximum feeding speed is about 23 m/min) PUR: 20/23/26 m/min |
