*Machine picture shown is reference only
S-280
Intelligent Laser Edge Banding Machine
(Heavy-duty Fully Automatic Edge Banding Machine)
Standard Process
- Separation Spray Device
- Pre-milling
- Bake Lamp
- PUR Two-color Gluing System
- Laser System
- Pressing
- End Cutting
- Rough Trimming
- Fine Trimming
- Corner Rounding
- Scraping 1
- Scraping 2
- Off-cut
- Flexible Flat Scraping
- Cleanser Spray Device
- Buffing 1
- Buffing 2
Technical Info
- Laser system developed by Hold
- Truly seamless edge banding effect, no need for glue. High-energy laser beam melts the functional layer on the back of the edge band and bonds it to the substrate, resulting in strong adhesion and excellent weather resistance, prividing a perfect visual experience
- Hold specializes in weather resistance technology, eliminating the need for separate “building houses”, ensuring that the edge banding is not easily affected by environmental temperature and humidity
- The laser system is ready to use when powered on, no need for heating, increasing effective working hours utilization
- Excellent waterproof performance, resistant to high and low temperatures, environmentally friendly and non-polluting.
- In addition to laser edge banding, PUR non-cleaning glue pot + dual glue machine can also be selected
- Patented laser system technology, perfectly compatible with ABS, PP, acrylic, and laser edge bands with functional layers
- New three-axis pneumatic cylinder flexible flat scraper, ensuring cleaner glue removal without damaging the board
- 11 powerful fully intelligent control system function:
1. Barcode scanning for automatic belt replacement (optional)
2. Intelligent Heating (automatically heats up according to preset time when machine is powered on)
3. Intelligent insulation (automatically heats up according to preset time when machine is powered on)
4. Intelligent sleep mode (customizable sleep timer to reduce energy consumption when machine is not in use)
5. Board position display
6. Quick positioning of pressure beam
7. Fault log
8. Operation log (equipment running time, effective running time)
9. Production report
10. Piece counting function
11. Can be customized to integrated with ERP/MES systems as per customer requirements
Real-time data transmission, providing instant understanding of equipment status, and one-click production report generation
Standard Configuration

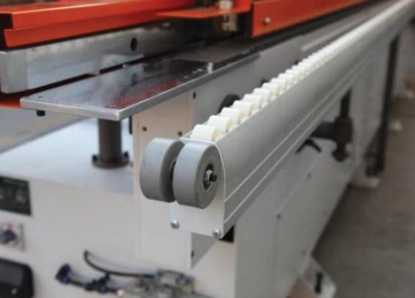

Track Pressure (Optional Pressure Roller)

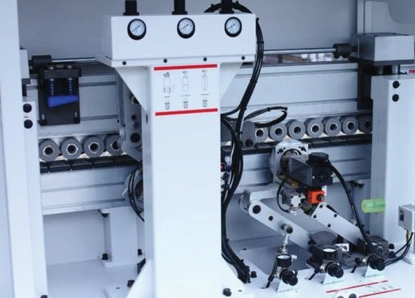

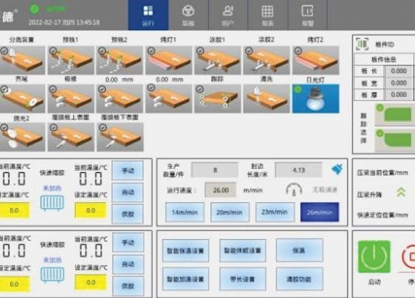

Fully Intelligent Control System
Board Heating Unit

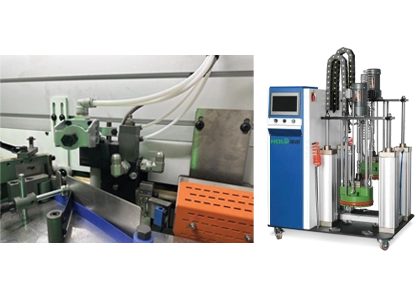

Gluing: Dual-color PUR Non-Cleaning Glue Pot + Dual-color PUR Glue Machine
(Standard Configuration)

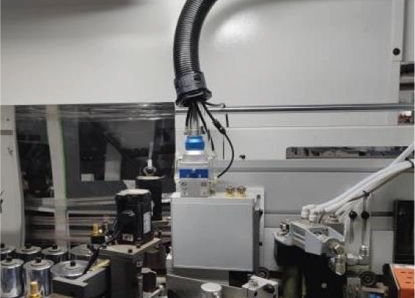

Patented Laser System

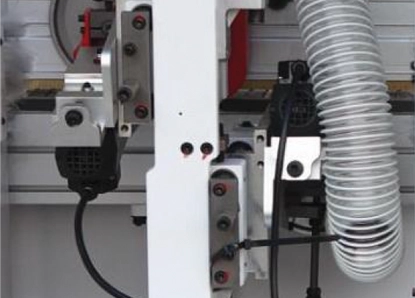

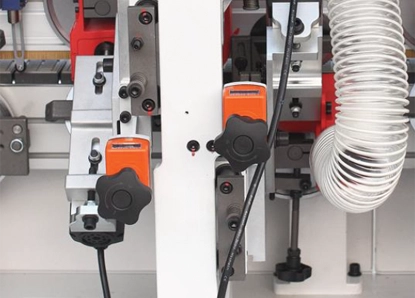

Rough Trimming

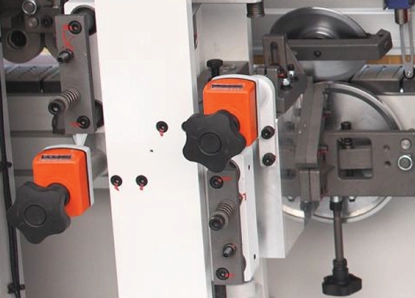

Fine Trimming

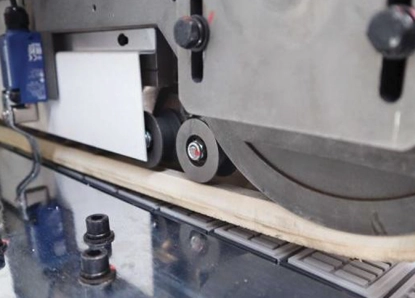

Corner Rounding
Two sets of Scraping
Off Cut + Flexible Flat Scraper + Cleaning Agent Device

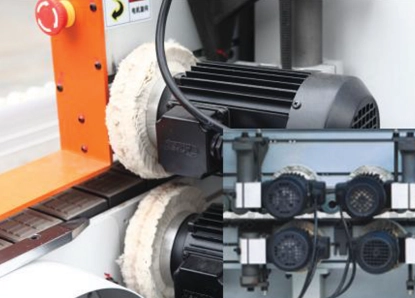

Two sets of Buffing

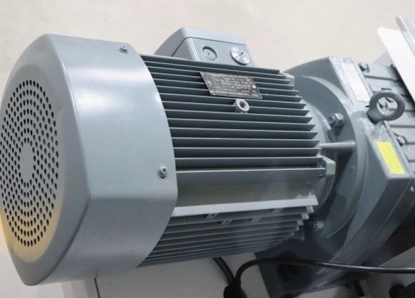

7.5 kW Hard-geared Surface Conveyor Reducer

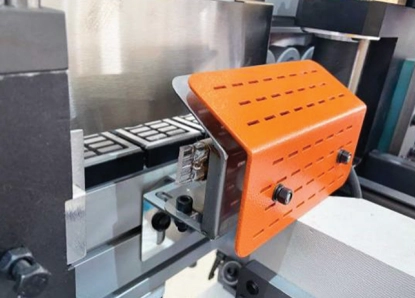

Unique Design: Encapsulated Traction Wheels
Specification of S280
| Model | S280 |
|---|---|
| Lifting | CNC lift |
| Total power | About 24.5 kW |
| Overall dimensions | About 9000 x 900 x 1700 mm |
| Feed rate | gluing: 14-18-23 m/min laser: ≤ 18 m/min |
| Edge banding thickness | gluin: 0.4 - 3 mm laser: 1 -3 mm |
| Board thickness | gluing: 10 - 60 mm laser: 10 - 25 mm (adjustable, fixed for one thickness. Need skilled engineer for adjustment) |
| Board length | ≥ 300 mm |
| Board width | ≥ 50 mm |
| Operating pressure | 0.6 Mpa |
| Minimum board size | 300 x 50 mm |
| Corner rounding speed | ≤ 20 m/min, Narrow Edge: ≤ 14 m/min |
| Dust extraction port | 6 x 100 |
