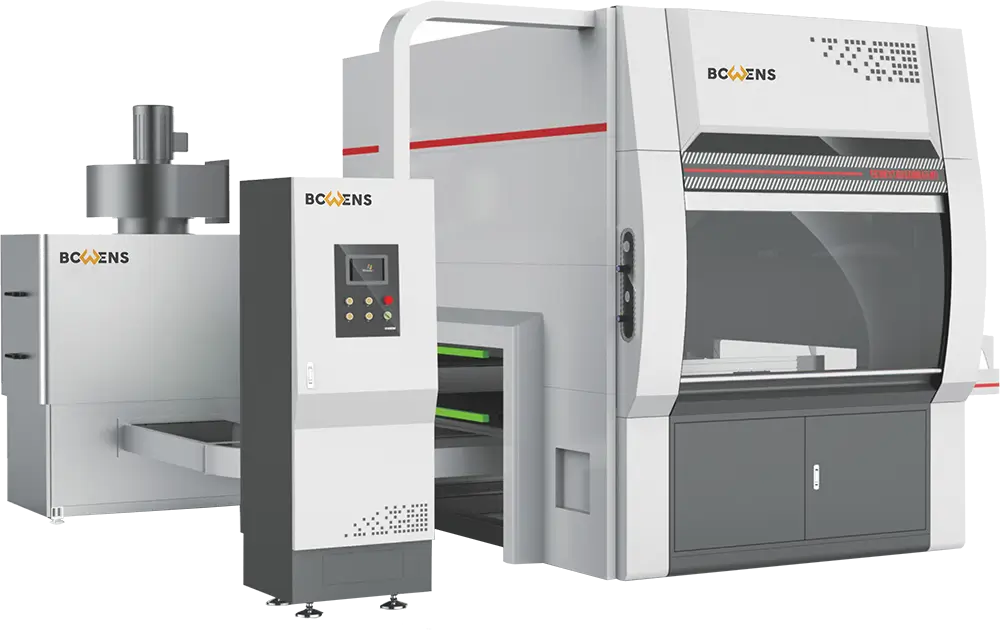

Reciprocating Automatic Paint Spraying Machine
Workpiece shape and position detection function: the workpiece can be equipped with raster devices accurately detect the workpiece dimension, hollow, placement and other information.

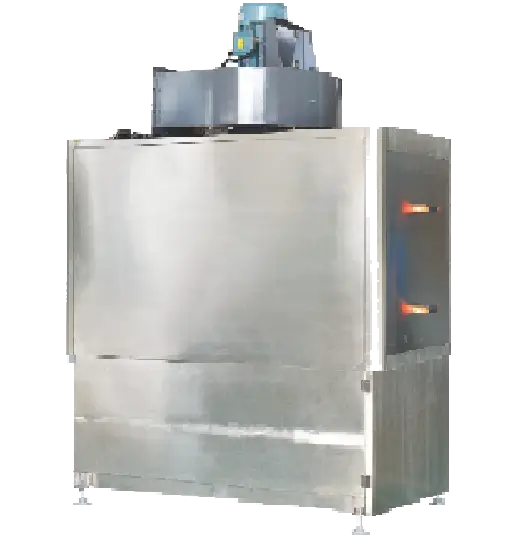

Based on the detection information to control the size of the spray area, saving coating. Spray booth integrated spray chamber has two air intake filter, air pressure through Frequency regulation.

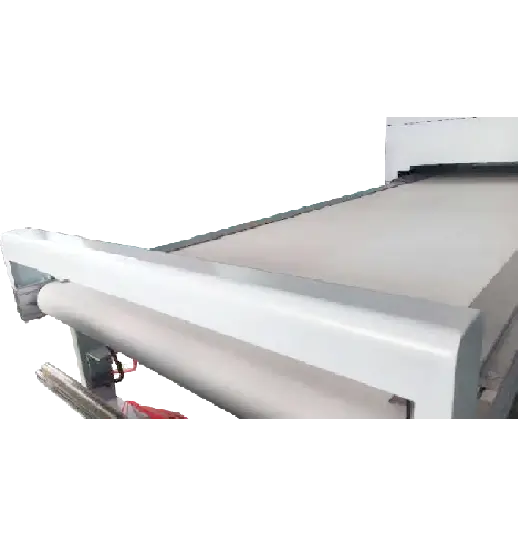

PE conveyor belt: import acid PE conveyor belt, belt conveyor system paint recycling and cleaning equipment.

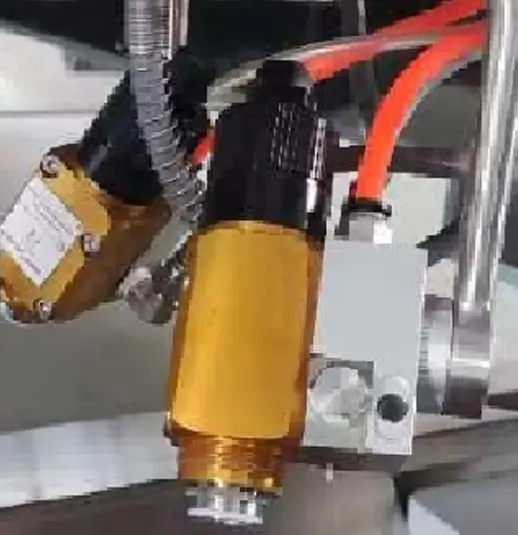

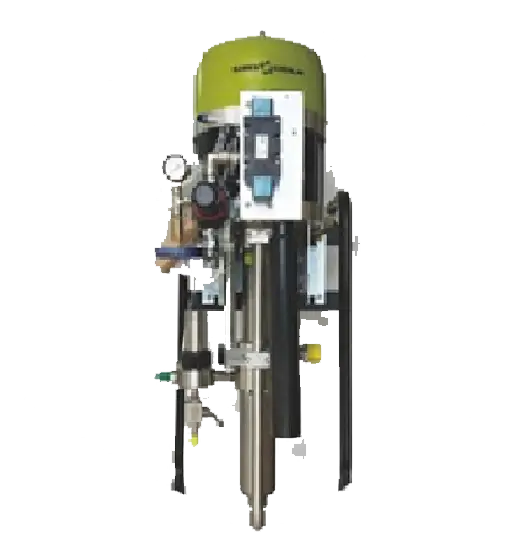

Gun oil supply system: MV Airmix system, AVX series of cases from kremlin gun and piston oil supply sytem, spray effect, paint utilization. And save 20% than ordinary paint spray gun, blow gun each to pay pressure can be independently adjusted precisely control the flow of air is blown when spraying.
Control and operating systemsL the use of advanced equipment and stable.
Control and operating system. The equipment adopts PLC controller and 7 inch touch screen. The working status of the machine can be displayed on the screen in time, which is convenient for operation and monitoring. It is driven by Yaskawa servo motor in Japan.
Paint circuit: professional paint loop can be pros and cons to flush the pipeline, so easy to clean and save more solvent.
Specification of Reciprocating Automatic Paint Spraying Machine
| Model | Reciprocating Automatic Paint Spraying Machine |
|---|---|
| Effective working width | 0 - 1300 mm |
| Effective processing thickness | 2 - 70 mm |
| Min processing length | 300 mm |
| Delivery speed | 1 - 6 m.min |
| Total power | 12 kW |
| Motor brand | Yaskawa servo motor, Japan |
| Dimensions | 3720 x 2800 x 3200 mm |
